VLAN with its VLANID as 20, owning Port 6 and Port 7.
6.5 Application Example for MAC VLAN
¾ Network Requirements
z Switch A and Switch B are connected to meeting room A and meeting room B respectively, and
the two rooms are for all departments;
z Notebook A and Notebook B, special for meeting room, are of two different departments;
z The two departments are in VLAN10 and VLAN20 respectively. The two notebooks can just
access the server of their own departments, that is, Server A and Server B, in the two meeting
rooms;
z The MAC address of Notebook A is 00-19-56-8A-4C-71, Notebook B’s MAC address is
00-19-56-82-3B-70.

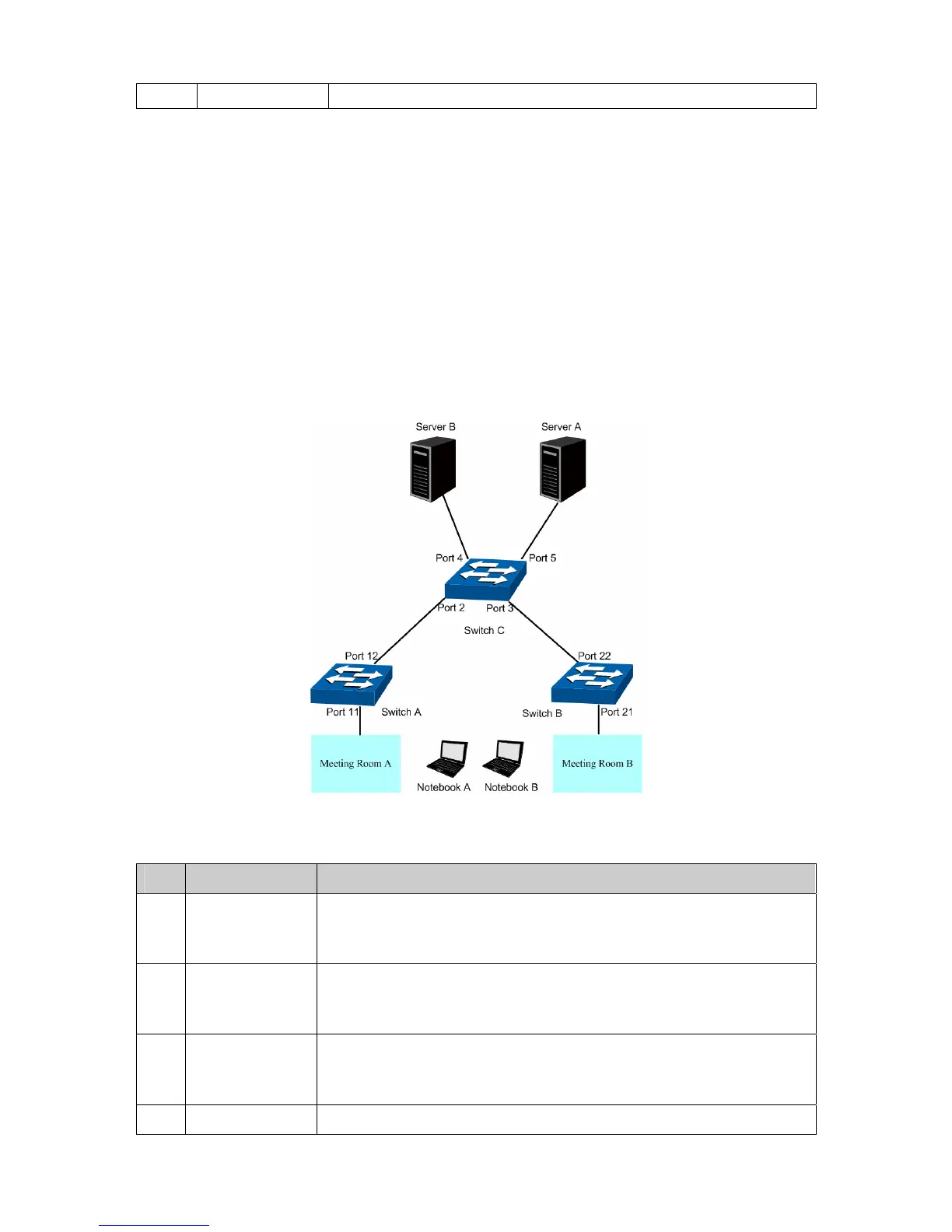

¾ Network Diagram
¾ Configuration Procedure
z Configure Switch A
Step Operation Description
1 Configure the
Link Type of the
ports
Required. On VLAN→802.1Q VLAN→Port Config page, configure the
link type of Port 11 and Port 12 as GENERAL and TRUNK respectively.
2 Create VLAN10 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a
VLAN with its VLANID as 10, owning Port 11 and Port 12, and configure
the egress rule of Port 11 as Untag.
3 Create VLAN20 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a
VLAN with its VLANID as 20, owning Port 11 and Port 12, and configure
the egress rule of Port 11 as Untag.
4 Configure MAC On VLAN→MAC VLAN page, create MAC VLAN10 with the MAC
64

TP-Link JetStream L2 Lite TL-SG3210 Specifications

General

Model	TL-SG3210
Category	Switch
Type	Managed
Switching Capacity	20Gbps
Forwarding Rate	14.88 Mpps
MAC Address Table	8K
Jumbo Frame	9KB
Certifications	CE, FCC, RoHS
Ports	8 x 10/100/1000Mbps RJ45 ports, 2 x 1G SFP slots
Standards and Protocols	IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s
VLAN	4K VLAN IDs
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
