Configuring 802.1Q VLAN Configuration Example
Configuration Guide
161

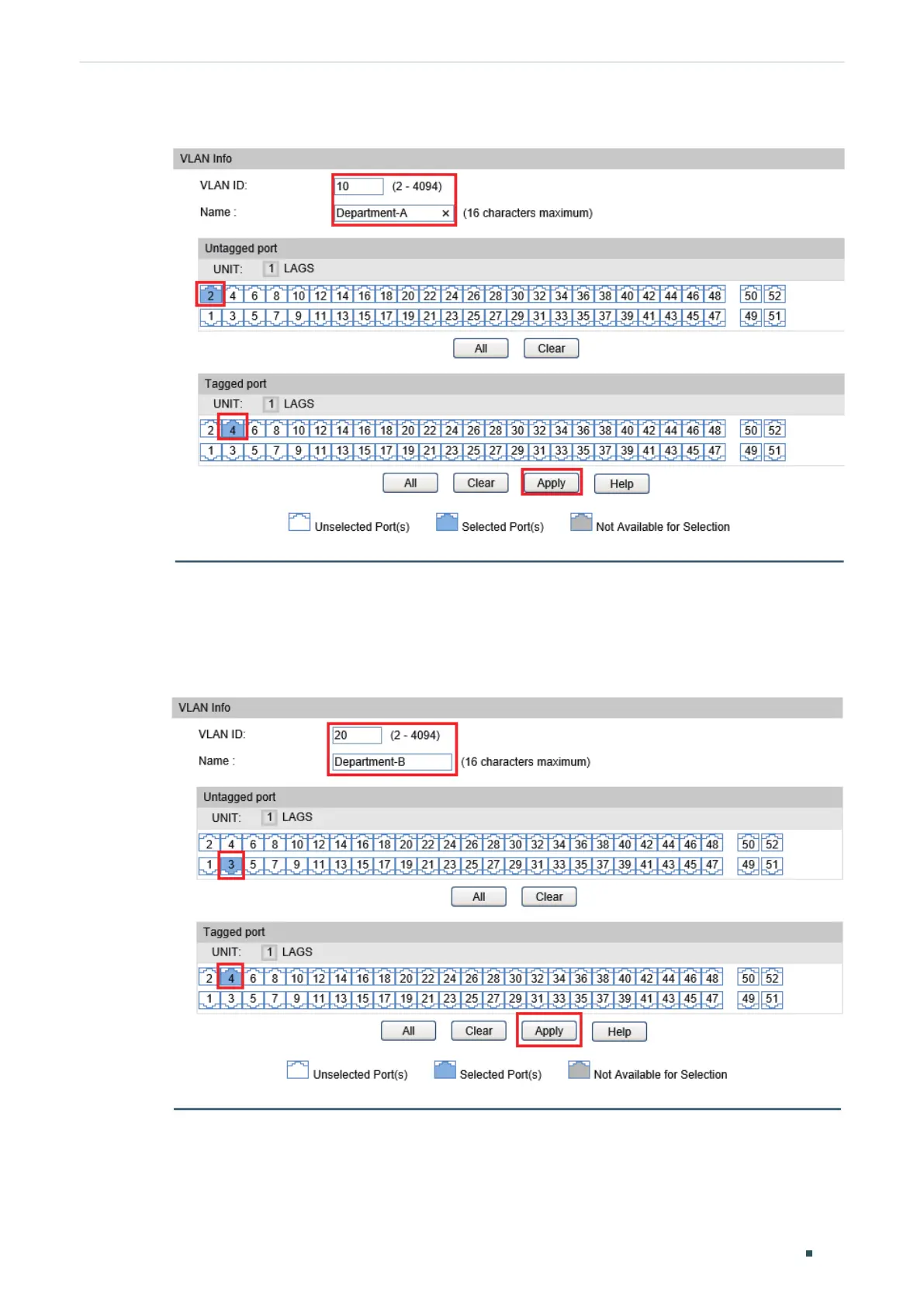

Figure 3-2 Create VLAN 10 for Department A
2) Click Create again to load the following page. Create VLAN 20 with the description of
Department-B. Add port 1/0/2 as an untagged port and port 1/0/4 as a tagged port to
VLAN 20. Then click Apply.
Figure 3-3 Create VLAN 20 for Department B
3) Click Save Config to save the settings.
