Configuring Spanning Tree Configuration Example for MSTP
Configuration Guide
253

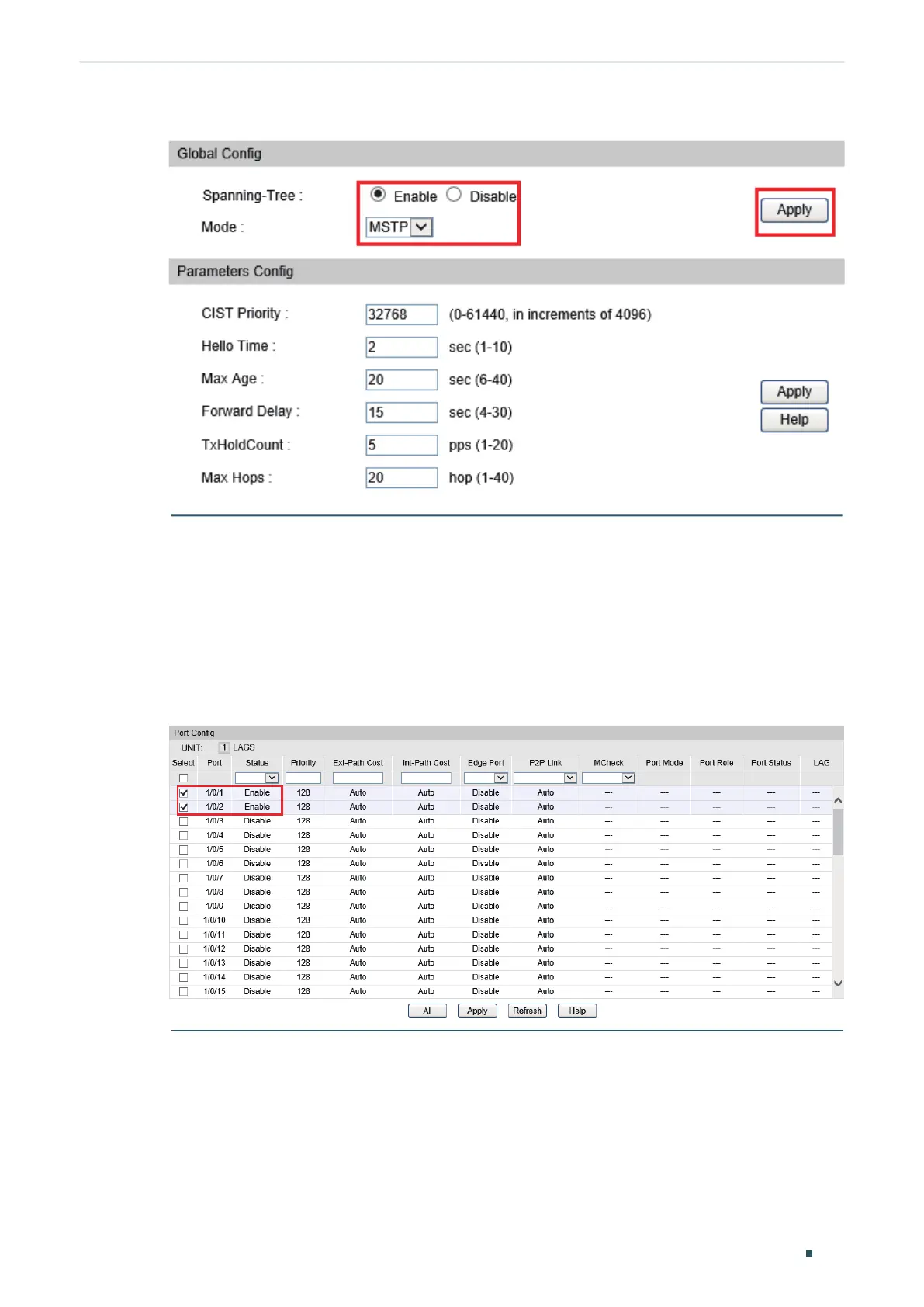

Figure 5-13 Configuring the MSTP Globally
7) Click Save Config to save the settings.

Configurations for Switch C
1) Choose the menu Spanning Tree > STP Config > Port Config to load the following
page. Enable the spanning tree function on port 1/0/1 and port 1/0/2. Here we leave the
values of the other parameters as default settings.
Figure 5-14 Enable Spanning Tree Function on Ports
2) Choose the menu Spanning Tree > MSTP Instance > Region Config to load the
following page. Set the region name as 1 and the revision level as 100.
