TP-Link TD-W8901G User Guide

TD-W8901G 54M Wireless ADSL2+ Router User Guide
11

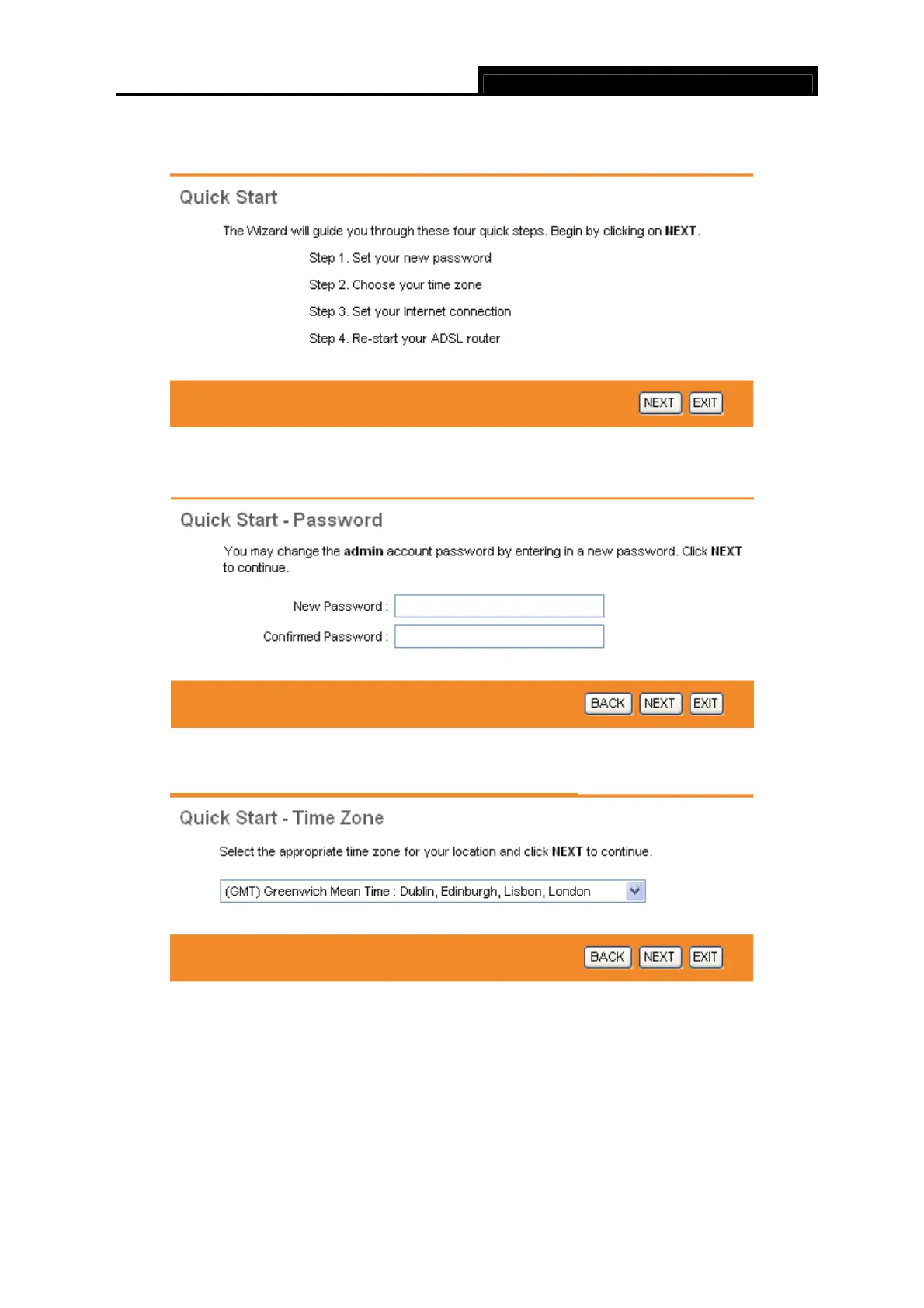

Step 1: Select the Quick Start tab, then click RUN WIZARD, and you will see the next screen.
Click the NEXT button.
Figure 3-8
Step 2: Change the login password in the next screen, and then click the NEXT button.
Figure 3-9
Step 3: Configure the time for the Router, and then click the NEXT button.
Figure 3-10
Step 4: Select the connection type to connect to the ISP (We select PPPoE/PPPoA mode for
example here), and then click the NEXT button.

TP-Link TD-W8901G Specifications

General

Wireless Speed	Up to 54Mbps
Frequency Band	2.4GHz
ADSL Speed	Downstream: up to 24Mbps, Upstream: up to 3.5Mbps
Wireless Standards	IEEE 802.11g, IEEE 802.11b
ADSL Standards	ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.994.1 (G.hs)
Ports	4 x 10/100Mbps LAN, 1 x RJ-11 ADSL
Antenna	1 x Fixed
Security	64/128-bit WEP, WPA
Protocols	TCP/IP, PPPoE, PPPoA, DHCP
Weight	0.6 lbs (273g)
