TD-W8901G 54M Wireless ADSL2+ Router User Guide
12

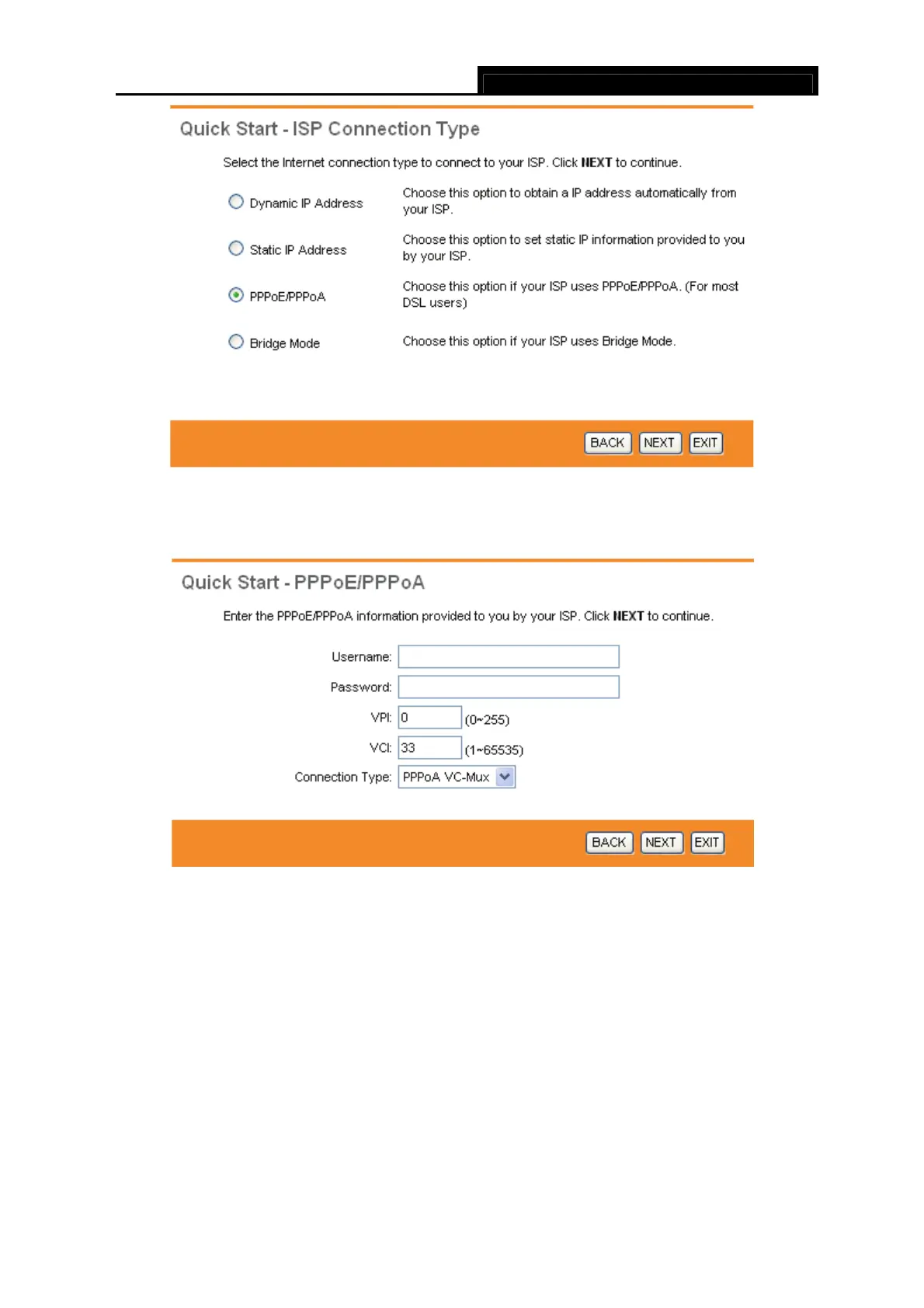

Figure 3-11
Step 5: Configure the following options provided by your ISP: Username, Password, VPI, VCI
and Connection Type. Then click Next.
Figure 3-12
)
Note:
If the PVC uses the same VPI/VCI as the default PVCs in factory configuration, you will have an
Error Message “ERROR: FAIL TO UPDATE DUE TO... Duplicate to a VPI/VCI! ”.
In this condition, please configure the PVC manually. To get detailed information, please refer to
4.3.1.

TP-Link TD-W8901G Specifications

General

Wireless Speed	Up to 54Mbps
Frequency Band	2.4GHz
ADSL Speed	Downstream: up to 24Mbps, Upstream: up to 3.5Mbps
Wireless Standards	IEEE 802.11g, IEEE 802.11b
ADSL Standards	ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.994.1 (G.hs)
Ports	4 x 10/100Mbps LAN, 1 x RJ-11 ADSL
Antenna	1 x Fixed
Security	64/128-bit WEP, WPA
Protocols	TCP/IP, PPPoE, PPPoA, DHCP
Weight	0.6 lbs (273g)
