TP-Link TD-W8960N User Manual

TD-W8960N 300Mbps Wireless N USB ADSL2+ Modem Router User Guide

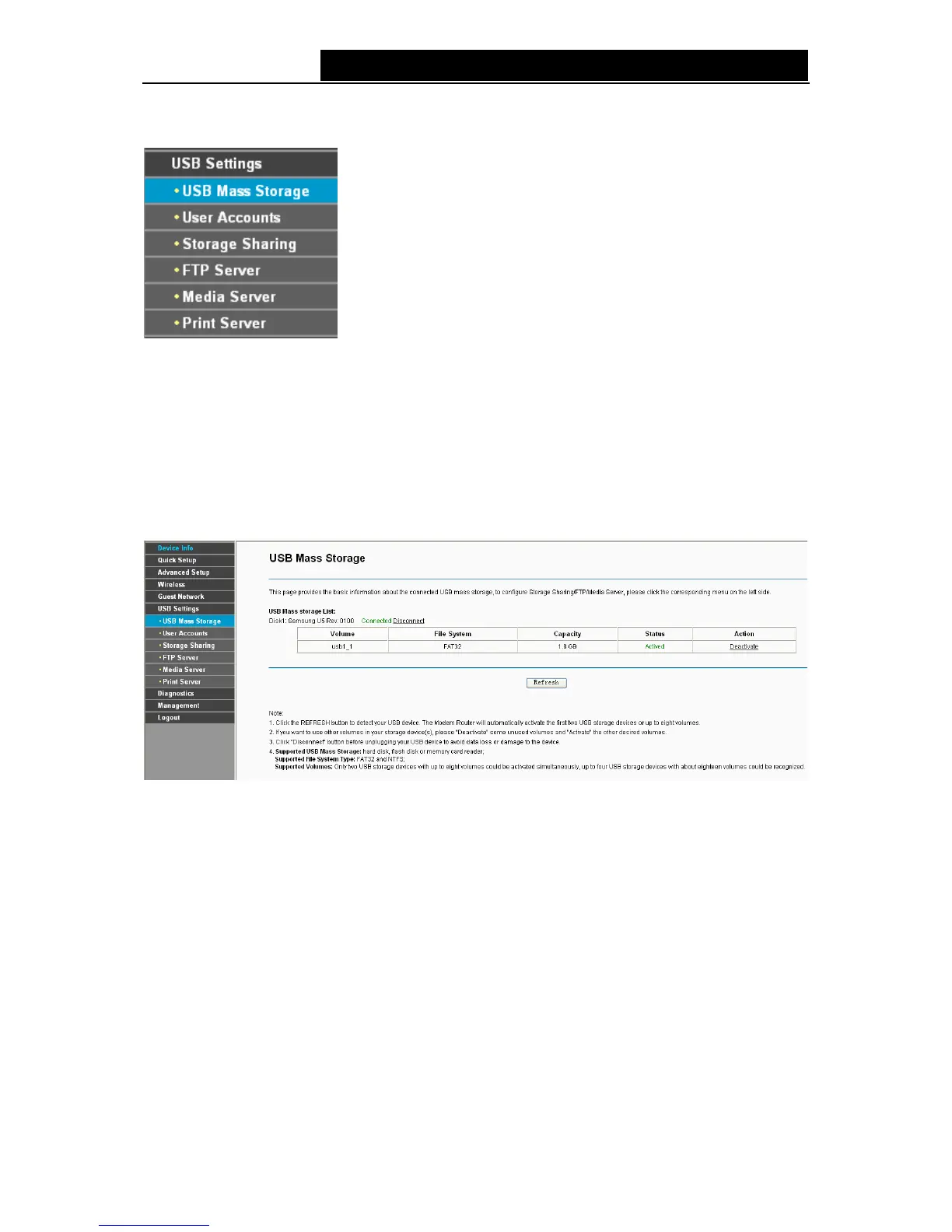

4.7 USB Settings
There are six submenus under the USB Settings menu, USB Mass Storage, User Accounts,
Storage Sharing, FTP Server, Media Server and Print Server. Click any of them, and you will be
able to configure the corresponding function.
4.7.1 USB Mass Storage
Choose menu “USB Settings → ”USB Mass Storage”, you can configure a USB disk drive
attached to the modem router and view volume and share properties such as share name,
capacity, status, and action, etc on this page as shown below.
Figure 4-103
 Volume: The volume name of the USB drive the users have access to.
 File System: The system of the USB drive.
 Capacity: The storage capacity of the USB driver.
 Status: Indicates the shared or non-shared status of the volume. Online means volume can
be shared, while Offline means volume can not be shared. If Deactivate in Action field is
enabled, Disabled will be displayed in the Status field, which means volume can not be
shared.
 Action: When the volume is shared, you can click the Deactivate to stop sharing the volume;
when volume is non-shared, you can click the Enable button to share the volume.
Click Disconnect to safely remove the USB storage device that is connected to USB port.
82

TP-Link TD-W8960N Specifications

General

DHCP server	Yes
Rack mounting	-
Frequency range	2.4 - 2.4835 GHz
WLAN data transfer rates supported	300 Mbit/s
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	3 dBi
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
USB port	No
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
VPN support	IPSec/PPTP/L2TP
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	FCC, RoHS
Product type	Tabletop router
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	8 W
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	140 mm
Width	200 mm
Height	28 mm
Weight	740 g
