Note:
1) L2TP and PPTP cannot be detected by the router. You must select it manually.
2) Before continuing, please make sure the cable of the WAN port is well connected to
your device. If the WAN port is not connected, the cable is unplugged page will
appear.
9. If you select Auto-Detect, the router will automatically detect the connection type your ISP
provides. The appropriate configuration page will be displayed when an active Internet
service is successfully detected by the router.

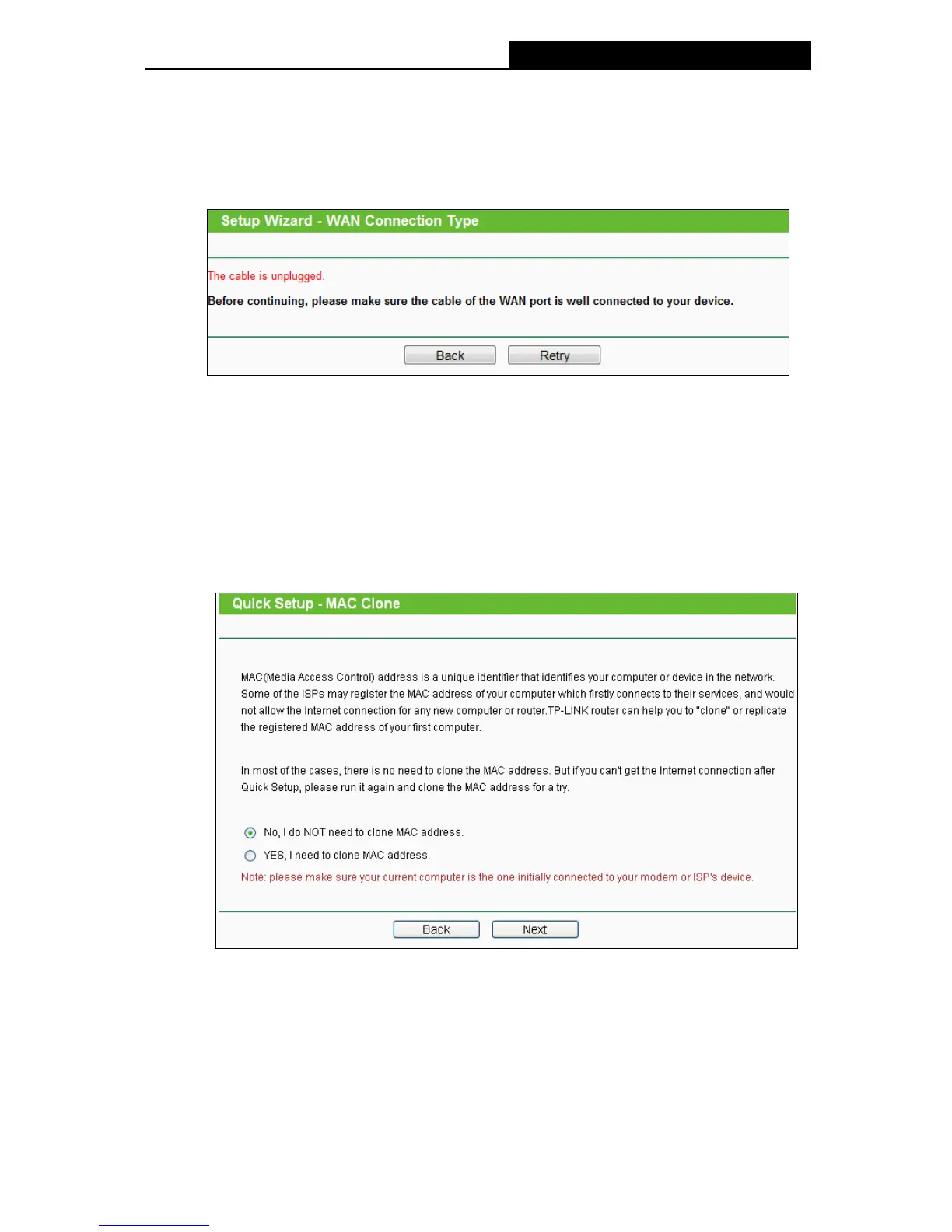

If the connection type is Dynamic IP, there will appear the MAC Clone page (as shown
in Figure 3-14). In most cases, there is no need to clone the MAC address. You can
select “No, I do NOT need to clone MAC address” and then click Next. If it is
necessary in your case, please select “Yes, I need to clone MAC address” and then
click Next.
Figure 3-14 MAC Clone
If the connection type is Static IP, the next screen will appear as shown in Figure 3-15.
-14-
