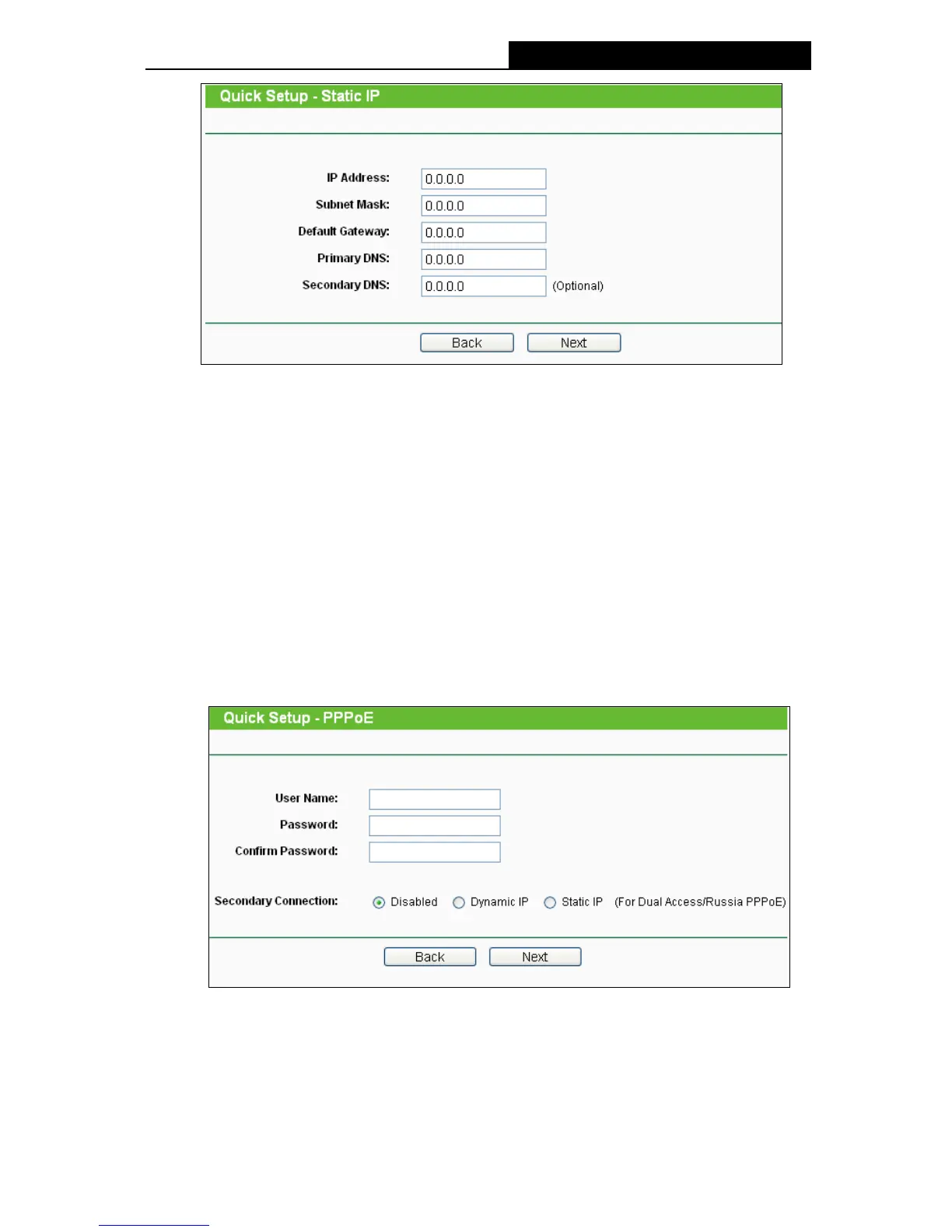

Figure 3-15 Quick Setup - Static IP
IP Address - This is the WAN IP address as seen by external users on the Internet
(including your ISP). Enter the IP address into the field.
Subnet Mask - The Subnet Mask is used for the WAN IP address, it is usually
255.255.255.0.
Default Gateway - Enter the gateway IP address into the blank.
Primary
DNS - Enter the DNS Server IP address into the blank.
Secondary DNS - If your ISP provides another DNS server, enter it into this field.
If the connection type is PPPoE/Russian PPPoE, the next screen will appear.
Configure the following parameters and then click Next to continue.
Figure 3-16 Quick Setup – PPPoE
User Name and Password - Enter the User Name and Password provided by your
ISP. These fields are case sensitive. If you have difficulty with this process, please
contact your ISP.
-15-
