Confirm Password - Re-enter the password provided by your ISP to ensure the
Password you entered is correct.
Check the radio button of Dynamic/Static IP to activate the secondary connection if your
ISP provides an extra Connection type such as Dynamic/Static IP to connect to a local area
network.
If the connection type is L2TP/Russian L2TP, the next screen will appear as shown in
Figure 3-17. Configure the following parameters and then click Next to continue.

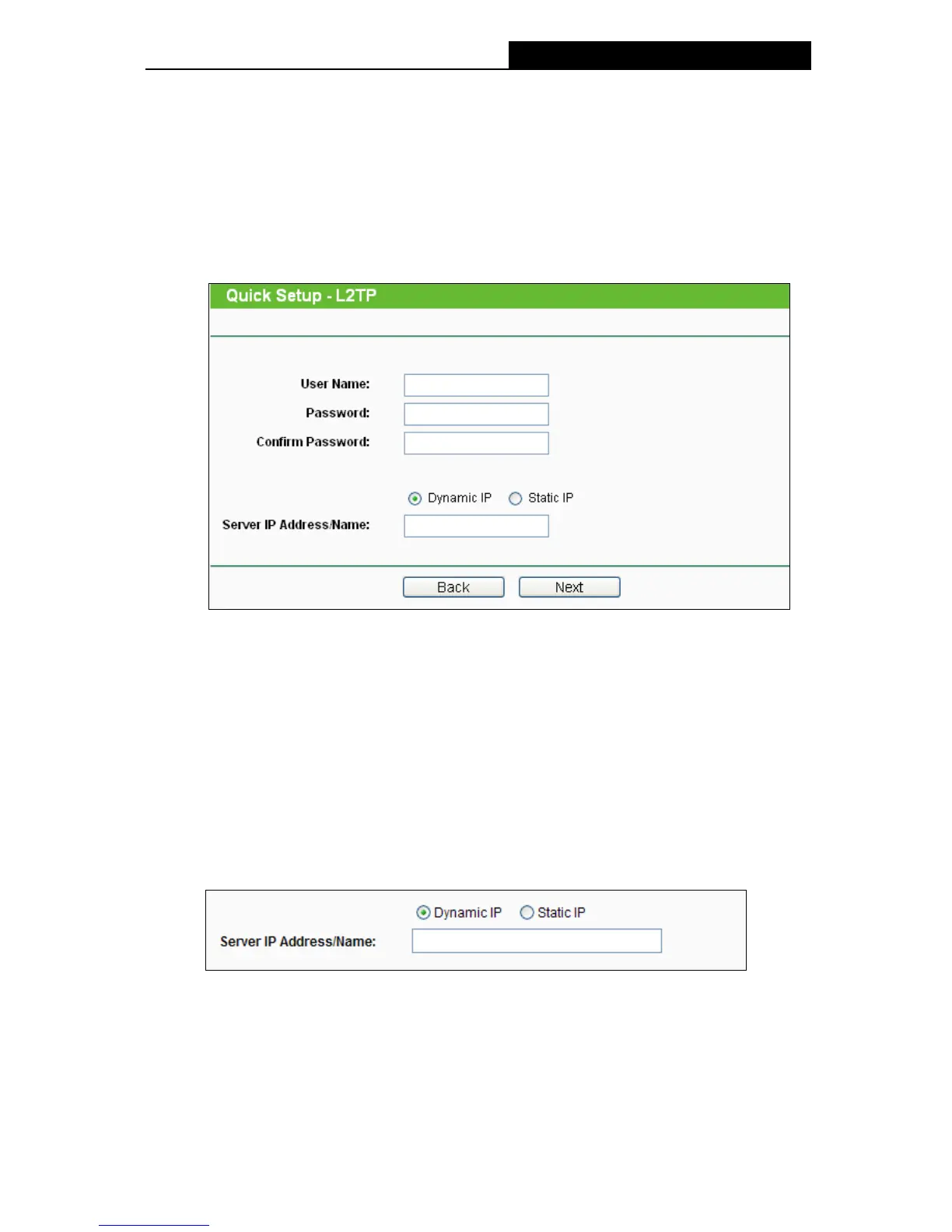

Figure 3-17 Quick Setup – L2TP
User Name and Password - Enter the User Name and Password provided by your
ISP. These fields are case sensitive. If you have difficulty with this process, please
contact your ISP.
Confirm Password - Re-enter the password provided by your ISP to ensure the
Password you entered is correct.
Select Dynamic IP if none of IP Address, Subnet Mask, Gateway and DNS server address
are provided. Then you just need to enter server IP address or domain name provided by
your ISP.
Select Static IP if the above parameters have been provided by your ISP. Then please enter
server IP address or domain name provided by your ISP, and also enter the corresponding
parameters.
-16-
