Choose the menu Switching→IGMP Snooping to load the following page.

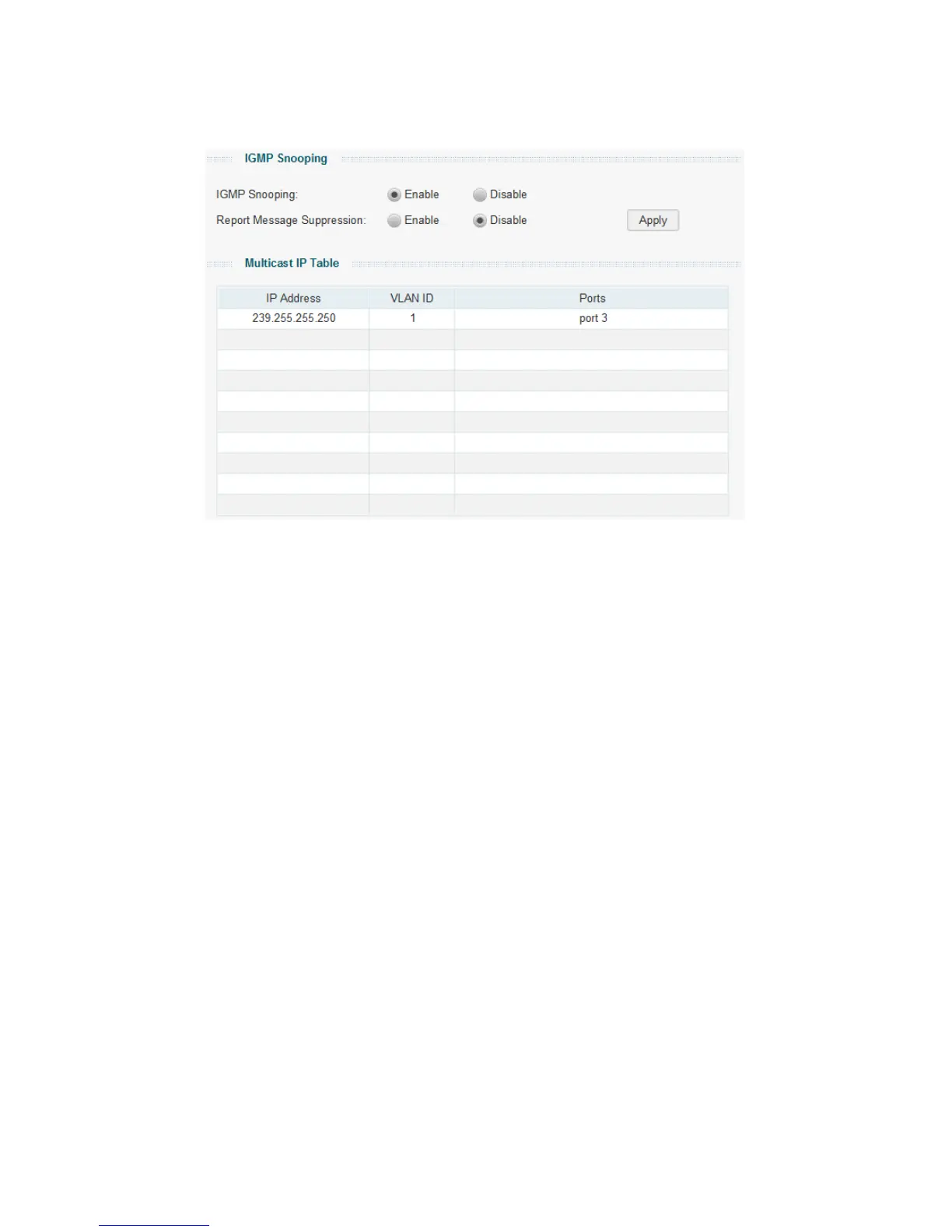

Figure 4-2 IGMP Snooping
The following entries are displayed on this screen:

IGMP Snooping
IGMP Snooping: Enable or disable IGMP snooping function globally on the
switch.
Report Message
Suppression:
Enable or disable Report Message Suppression function
globally.If this function is enabled,the first Report Message from
the listener will forward to the router ports while the subsequent
Report Message will be suppres
sed to reduce the IGMP
packets.

Multicast IP Table
IP Address: Displays the multicast IP address.
VLAN ID:
Displays the VLAN ID of
the multicast group. If the packet does
not carry VLAN ID, then here displays the PVID of the port.
All
port members of a m
ulticast group should be divided to the
same VLAN, and have the same PVID.
Ports: Displays the forwarding port list of the multicast group.
