TP-Link TL-SG1016DE User Manual

In this User Guide, the tagged packet refers to the packet with VLAN tag whereas the untagged
packet refers to the packet without VLAN tag.
The VLAN module is mainly for VLAN configuration, including four submenus: MTU VLAN, Port
Based VLAN, 802.1Q VLAN and 802.1Q PVID Setting.
6.1 MTU VLAN
On this page you can choose to enable MTU VLAN mode and configure VLANs.
Choose the menu VLAN→MTU VLAN to load the following page.

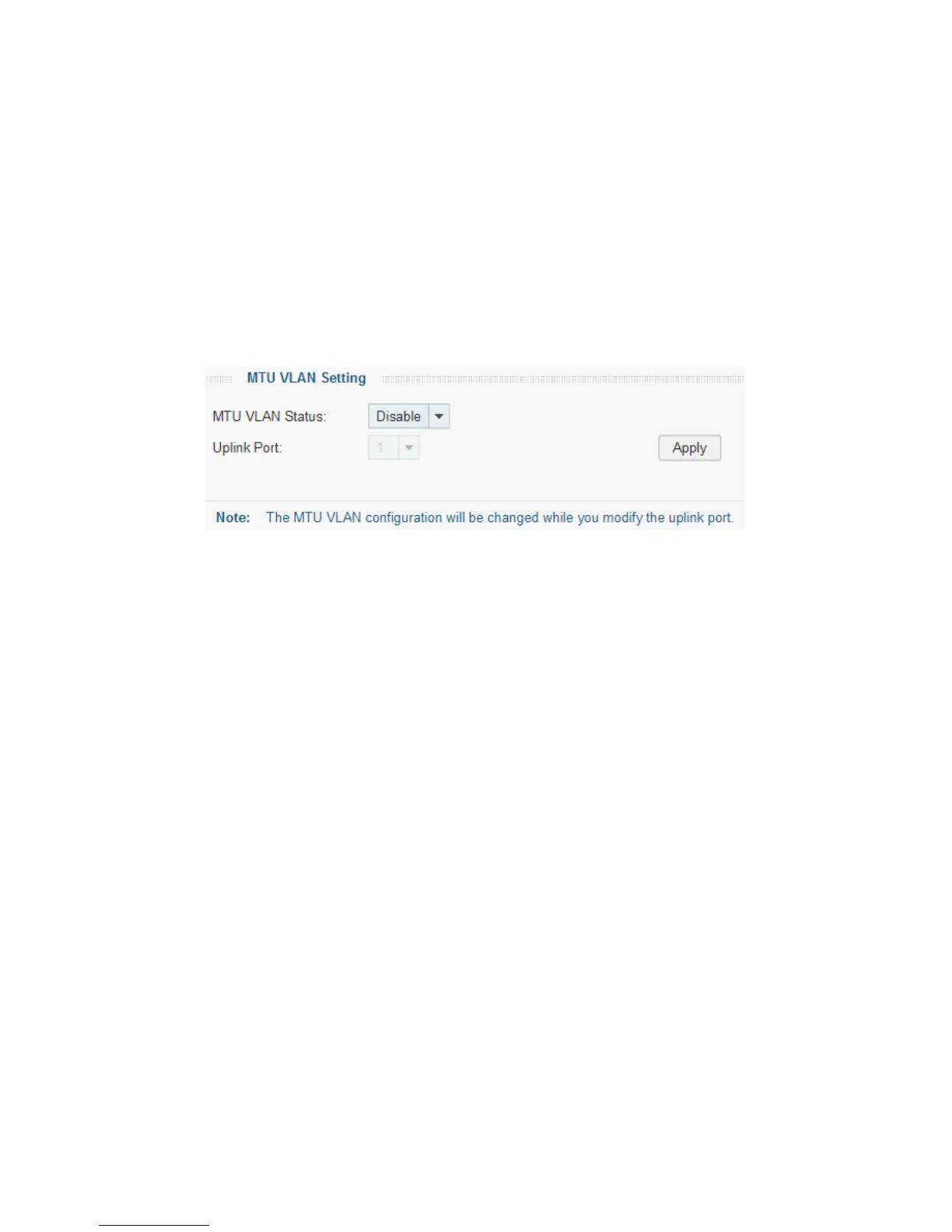

Figure 6-3 MTU VLAN Configuration
The following entries are displayed on this screen:

MTU VLAN Setting
MTU VLAN Status: Enable/Disable the MTU VLAN function globally.
Uplink Port:
Select the uplink port from the drop-down list.
6.2 Port Based VLAN
On this page you can configure Port Based VLAN feature and view the related settings.
32

TP-Link TL-SG1016DE Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Power connector	AC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	32
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Port-based VLAN, Tagged VLAN
Cable types supported	Cat3, Cat5, Cat6
Copper ethernet cabling technology	100BASE-TX, 100BASE-T, 1000BASE-T
Jumbo frames	9000
Forwarding rate	23.8 Mpps
Number of queues	4
MAC address table	8000 entries
Packet buffer memory	0.512 MB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	19.15 W
Stackable	-
Form factor	1U
Product color	Black
Housing material	Metal
Heat dissipation	34.52 BTU/h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Maximum cable length	100 m
Compatible operating systems	Windows
Package type	Box
Package depth	400 mm
Package width	250 mm
Package height	80 mm
Package weight	1910 g
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Depth	180 mm
Width	284 mm
Height	44 mm
