300Mbps Wi-Fi Pocket Router/AP/TV Adapter/Repeater
- 84 -
than 100000Kbps. For optimal control of the bandwidth, please select the right Line Type and ask
your ISP for the total bandwidth of the egress and ingress.

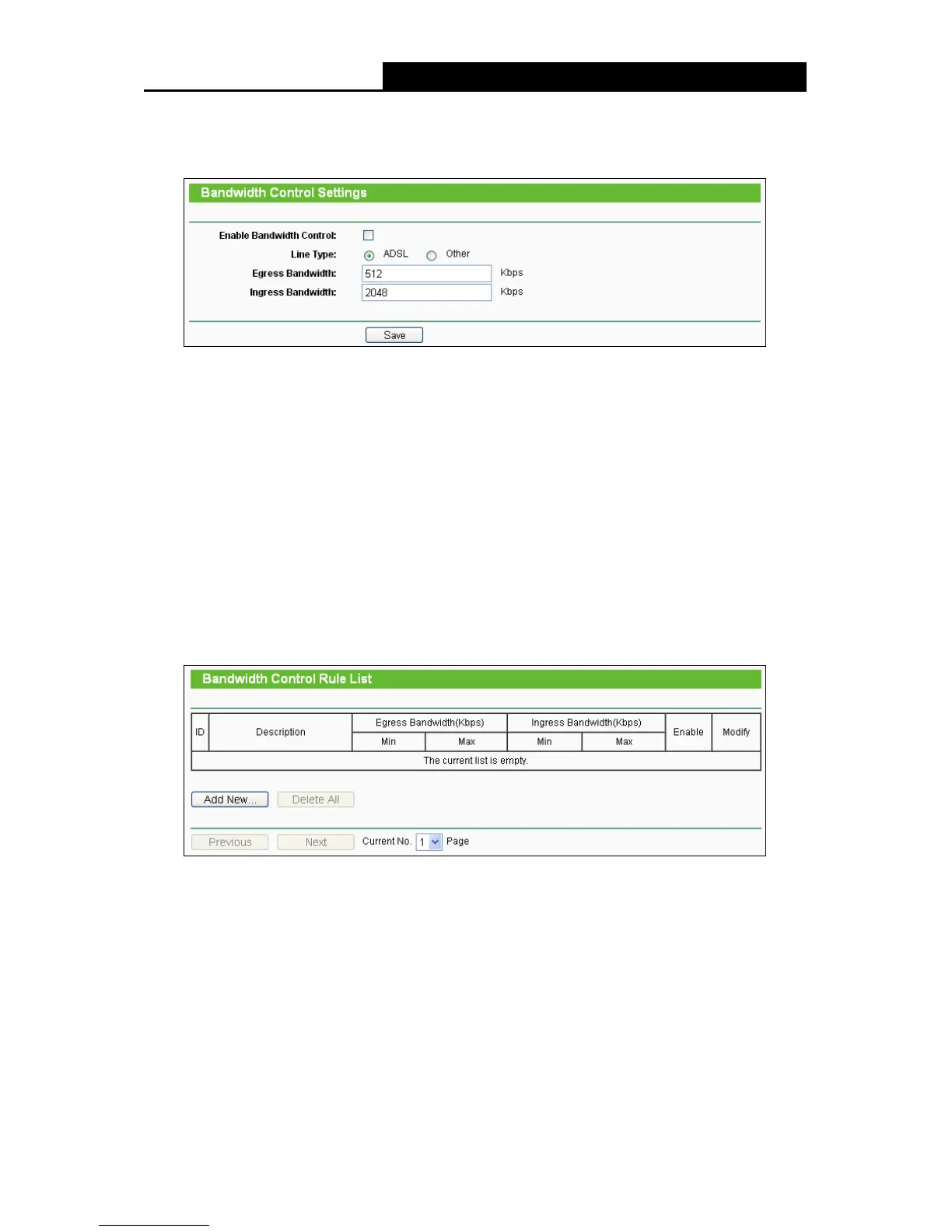

Figure 4-76 Bandwidth Control Settings
Enable Bandwidth Control - Check this box so that the Bandwidth Control settings can take
effect.
Line Type - Select the right type for you network connection. If you don’t know how to choose,
please ask your ISP for the information.
Egress Bandwidth - The upload speed through the WAN port
.
Ingress Bandwidth - The download speed through the WAN port.
4.15.2 Rule List
Choose menu “Bandwidth Control
Rule List”, you can view and configure the Bandwidth
Control rules in the screen below.
Figure 4-77 Bandwidth Control Rule List
Description - This is the information about the rules such as address range.
Egress Bandwidth - This field displays the max and mix upload bandwidth through the WAN
port, the default is 0.
Ingress Bandwidth - This field displays the max and mix download bandwidth through the
WAN port, the default is 0.
Enable - This displays the status of the rule.
Modify - Click Modify to edit the rule. Click Delete to delete the rule.
