TP-Link Touch P5 AC1900 User Manual

73Chapter 3 . Congure Touch P5 as a Repeater

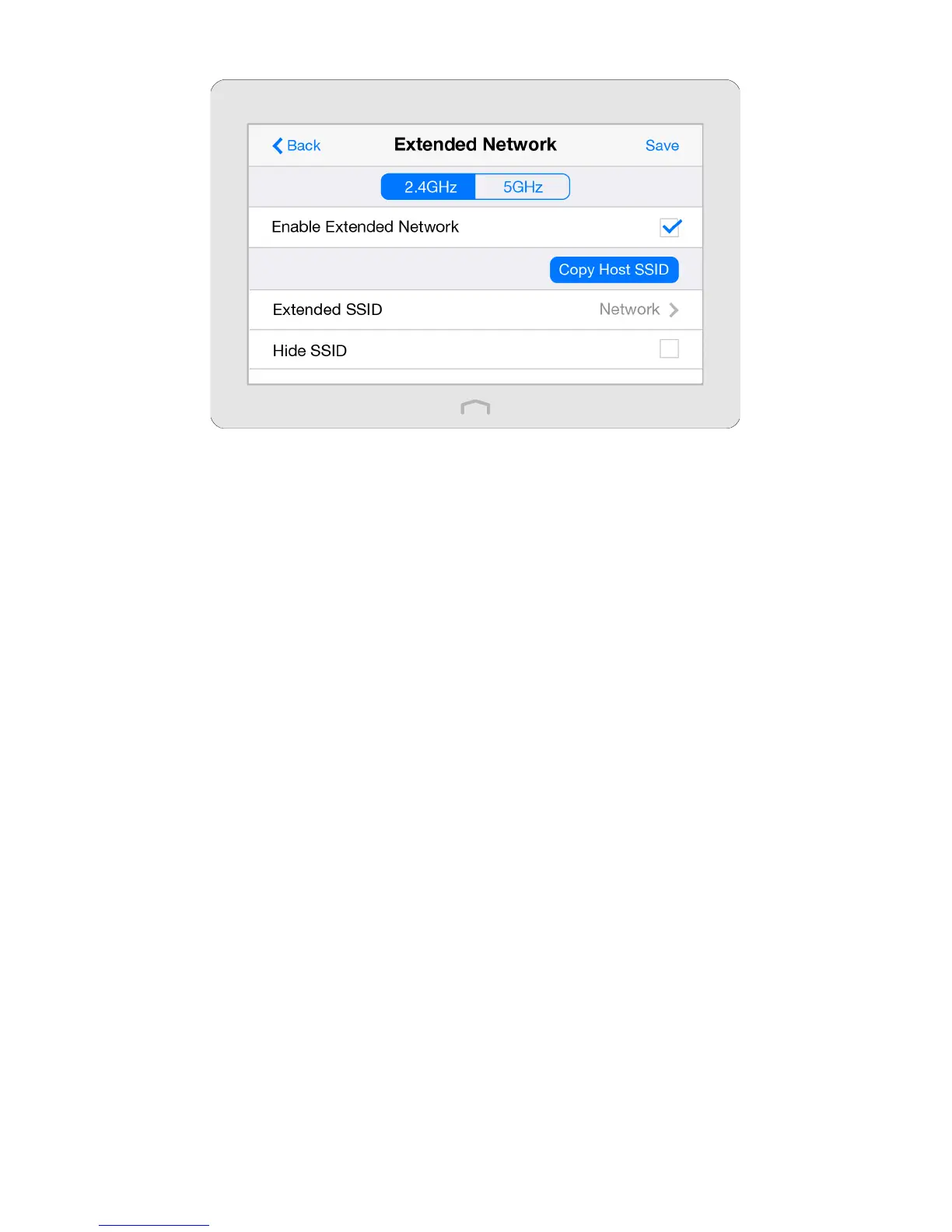

Enable Extended Network: Enable or disable the 2.4GHz/5GHz extended network.
Extended SSID: Either tap Copy Host SSID to copy the host router’s SSID or create a new name using up to 32 characters.
This field is case-sensitive.
Hide SSID: Select this checkbox if you want to hide your Touch P5’s SSID from the Wi-Fi network list, and your wireless
device will need to manually join the network.
Extended Password: The password of the extended network is the same as the host network.

TP-Link Touch P5 AC1900 Specifications

General

Color	black
Frequency Band	2.4 ghz, 5.0 ghz
QoS Traffic Prioritization	yes
Ethernet Standard	10/100/1000
Ethernet Switch	yes
Wireless Standard	ac
Gigabit Ethernet Speed	yes
Antennas	3
Parental Control	yes
Firewall	other
Data Encryption	yes
Encryption Type	wep
Ports	rj-45
WAN Ports	1
Built In Modem	no
System Requirements	microsoft windows 98se, nt, 2000, xp, vista™ or windows 7, 8, 8.1, mac os, netware, unix or linux; internet explorer 11, firefox 12.0, chrome 20.0, safari 4.0, or other java-enabled browser

Weight and Dimensions

Height	2.1 inches
Width	11.2 inches
Net Weight	2.98 pounds
