TP-Link VIGI NVR1008H User Manual

67
Chapter 4 Recording and Storage
Method 1: Via Live View
Click
on the tool bar at the bottom of the Live View screen to start or stop recording.

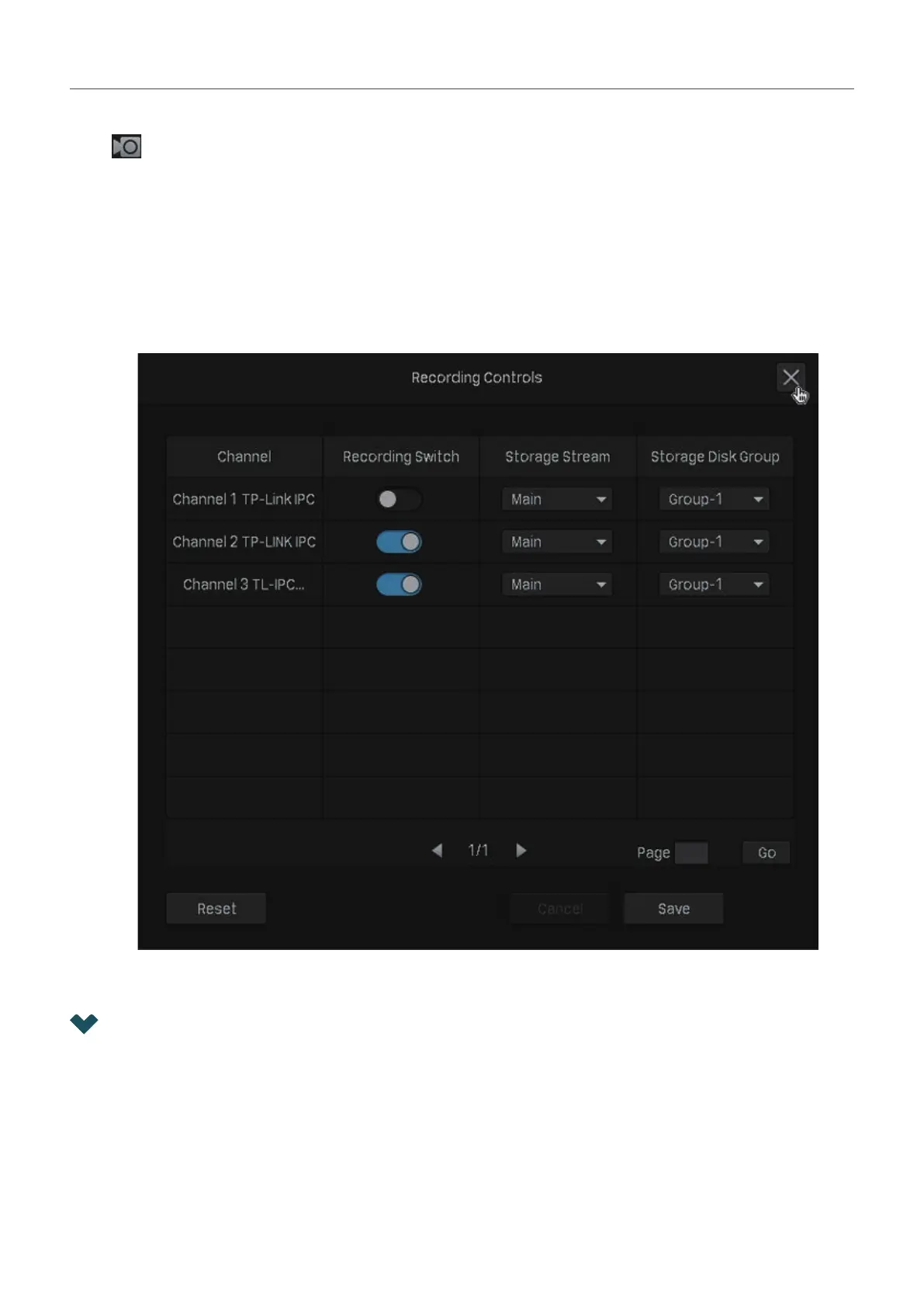

Method 2: Via Recording Controls
1. Right click on the Live View screen and click Recording Controls in the pop-up main menu.
2. (Optional) Select the recording stream and disk group for storage.
3. Click Recording Switch to start or stop recording.
4. Click Save after you finish the configuration.
4. 4 Manage Hard Drive
In Hard Drive Management section, you can view and customize the settings of hard drive, and choose
different detection methods to check the bad sectors and the status of the installed hard drive.

TP-Link VIGI NVR1008H Specifications

General

Input bandwidth	80 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	8 channels
Supported resolutions	1920 x 1080, 1280 x 720, 1440 x 900, 1280 x 1024
Video recording modes	1080p
Number of simultaneously playbacked channels	4 channels
Product color	Black
Rack capacity	1U
Rack mounting	Yes
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	0 TB
Number of HDDs installed	0
Number of HDDs supported	1
USB 2.0 ports quantity	2
Power supply	18 W
Output voltage	12 V
Operating temperature (T-T)	-10 - 55 °C
Harmonized System (HS) code	85219000

Weight and Dimensions

Depth	148.2 mm
Width	246.2 mm
Height	42.6 mm
Weight	578.5 g
Package depth	296.5 mm
Package width	277.5 mm
Package height	64.5 mm
Package weight	1070 g
