TP-Link VIGI NVR1008H User Manual

87
Chapter 5 Playback
5. 5. 4 Export Recordings
In Playback, you can easily search the desired recordings based on channel, time, recording types, tags,
and events, and back up them in batches. Follow the steps below to search and back up recordings.
Note: To back up the recordings, an external storage is required.

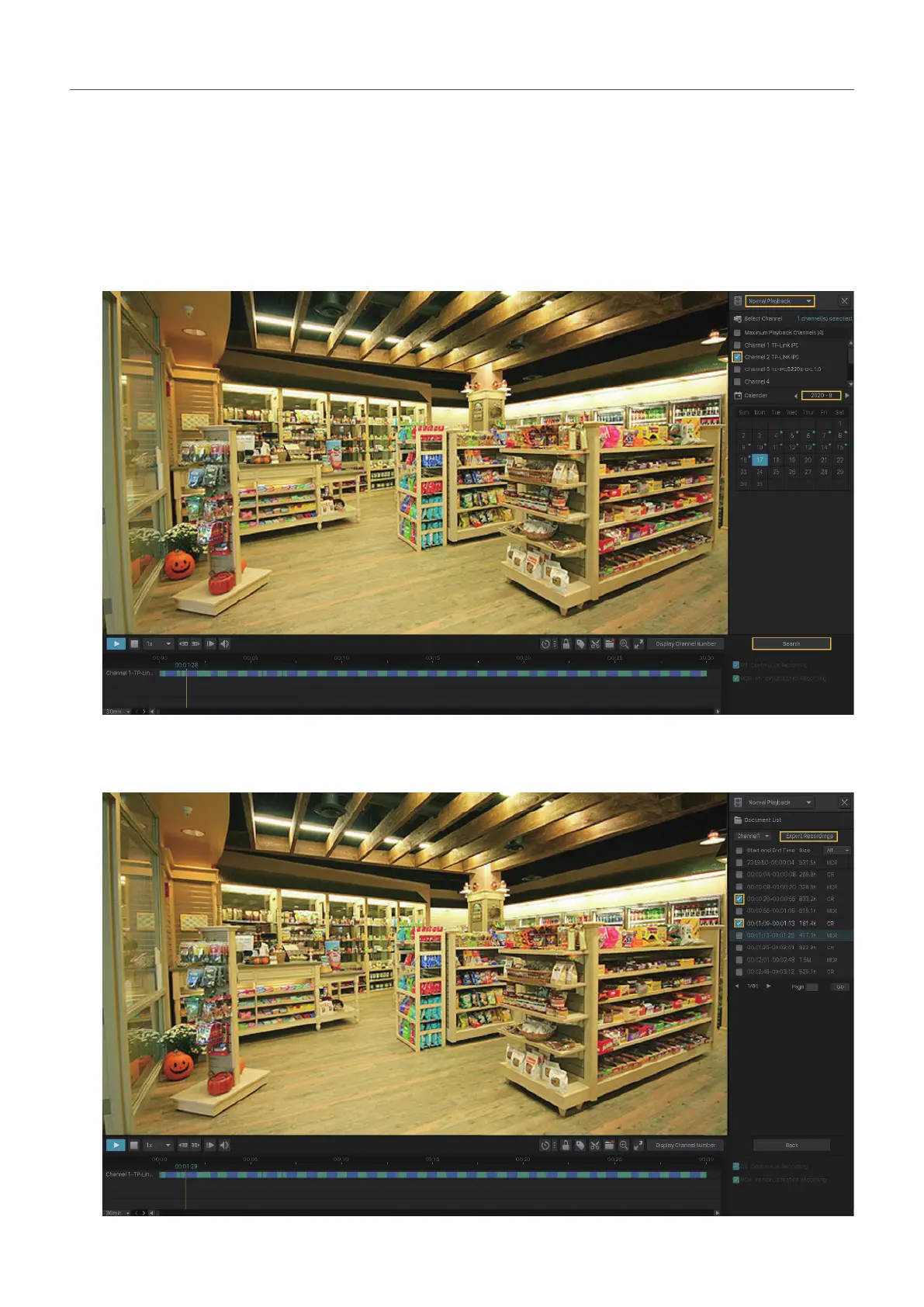

1. In Playback, specify the playback mode, channels, and time range, then click Search to search
recordings.
2. The recording files are listed on the right panel. Click the checkbox to select the recordings to be
exported and click Export Recordings.

TP-Link VIGI NVR1008H Specifications

General

Input bandwidth	80 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	8 channels
Supported resolutions	1920 x 1080, 1280 x 720, 1440 x 900, 1280 x 1024
Video recording modes	1080p
Number of simultaneously playbacked channels	4 channels
Product color	Black
Rack capacity	1U
Rack mounting	Yes
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	0 TB
Number of HDDs installed	0
Number of HDDs supported	1
USB 2.0 ports quantity	2
Power supply	18 W
Output voltage	12 V
Operating temperature (T-T)	-10 - 55 °C
Harmonized System (HS) code	85219000

Weight and Dimensions

Depth	148.2 mm
Width	246.2 mm
Height	42.6 mm
Weight	578.5 g
Package depth	296.5 mm
Package width	277.5 mm
Package height	64.5 mm
Package weight	1070 g
