TP-Link VIGI NVR1008H User Manual

95
Chapter 6 Events and Alerts
Buzzer The buzzer on the NVR will beep when the area intrusion is detected.
Recording Linkage
The channels you select for recording linkage will start recording when
the current channel detects an intrusion in the area.
Pop-up Alarm
Screen
The channel in Live View will be in full screen when an intrusion in the
area is detected.
White Light Alarm
(Only supports camera models with light alarm) The camera will trigger
light alarm when an intrusion in the area is detected.
Audible Alarm
(Only supports camera models with audible alarm) The buzzer on the
camera will alarm when an intrusion in the area is detected.

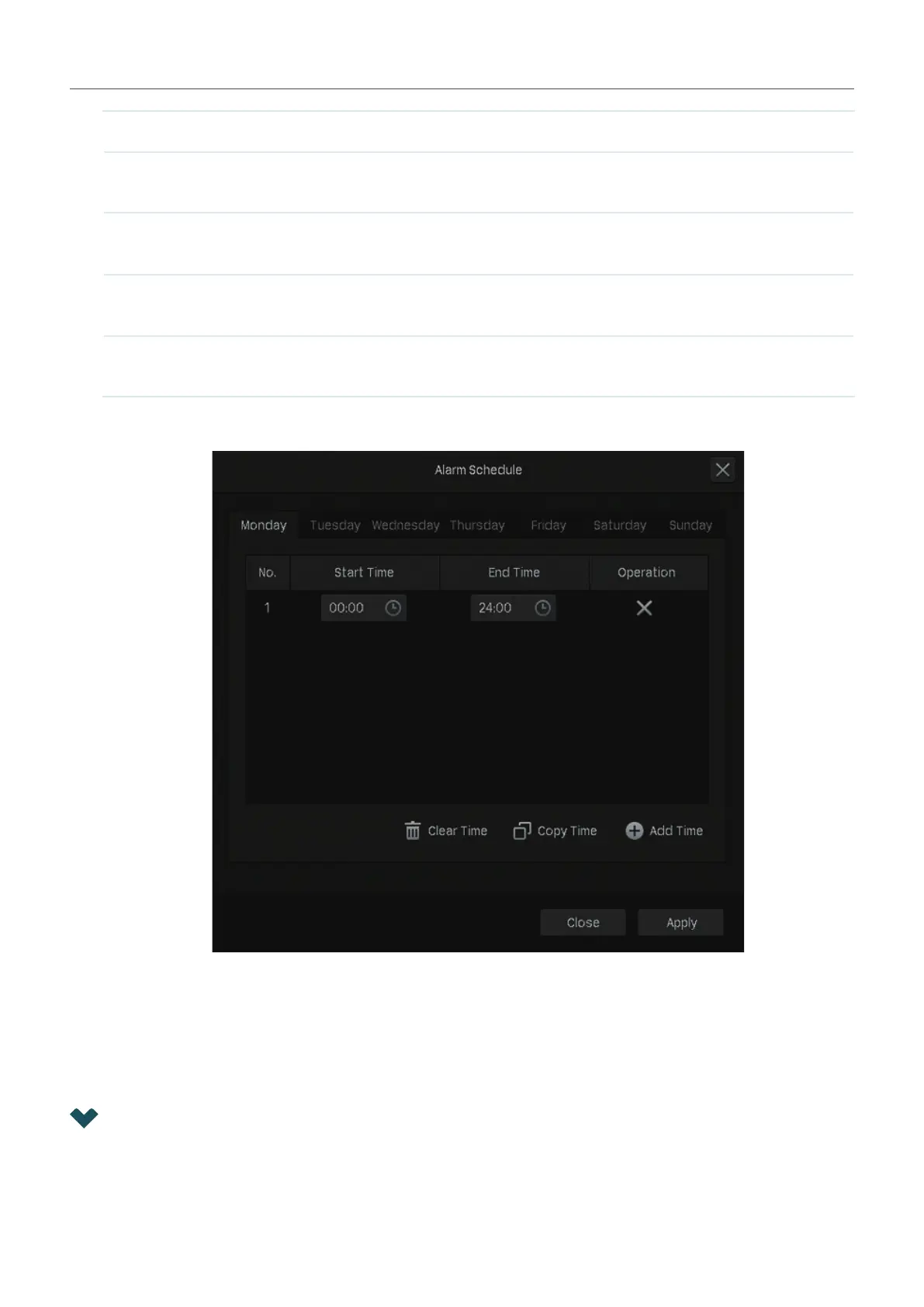

5. Set the alarm schedule. Click Apply.
6. Click Save to save the settings.
7. (Optional) Click Copy to other channels, select the channels and click Yes if you want to apply the
settings to other channels. Then click Save in Area Intrusion to save the settings.
6. 4 Line Crossing Detection
Line crossing detection triggers alarm actions when cameras detect that moving objects cross a
customized virtual line. You can customize the line crossing detection settings, select the triggered
actions and set the alarm schedule. Follow the steps below to finish the configuration.

TP-Link VIGI NVR1008H Specifications

General

Input bandwidth	80 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	8 channels
Supported resolutions	1920 x 1080, 1280 x 720, 1440 x 900, 1280 x 1024
Video recording modes	1080p
Number of simultaneously playbacked channels	4 channels
Product color	Black
Rack capacity	1U
Rack mounting	Yes
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	0 TB
Number of HDDs installed	0
Number of HDDs supported	1
USB 2.0 ports quantity	2
Power supply	18 W
Output voltage	12 V
Operating temperature (T-T)	-10 - 55 °C
Harmonized System (HS) code	85219000

Weight and Dimensions

Depth	148.2 mm
Width	246.2 mm
Height	42.6 mm
Weight	578.5 g
Package depth	296.5 mm
Package width	277.5 mm
Package height	64.5 mm
Package weight	1070 g
