T+A DD 1230 R User Manual

40
Analogue sound and picture source with co-axial audio and video outputs:
Connect the components as shown in wiring diagram
7
as follows:
• Connect the audio outputs
L
and
R
on the AV source
device to the L/R
AUX-AV
input sockets on the de-
coder.
• Connect the
VIDEO
output on the AV source device
to the
VIDEO AUX-AV
input socket on the decoder.
• If you also wish to use the AV device as a high-quality
stereo source, connect its analogue output to a va-
cant input on the pre-amplifier and assign the source
in the
'
Source Setup
'
.
• Finally connect the mains power supply and switch
the system on.

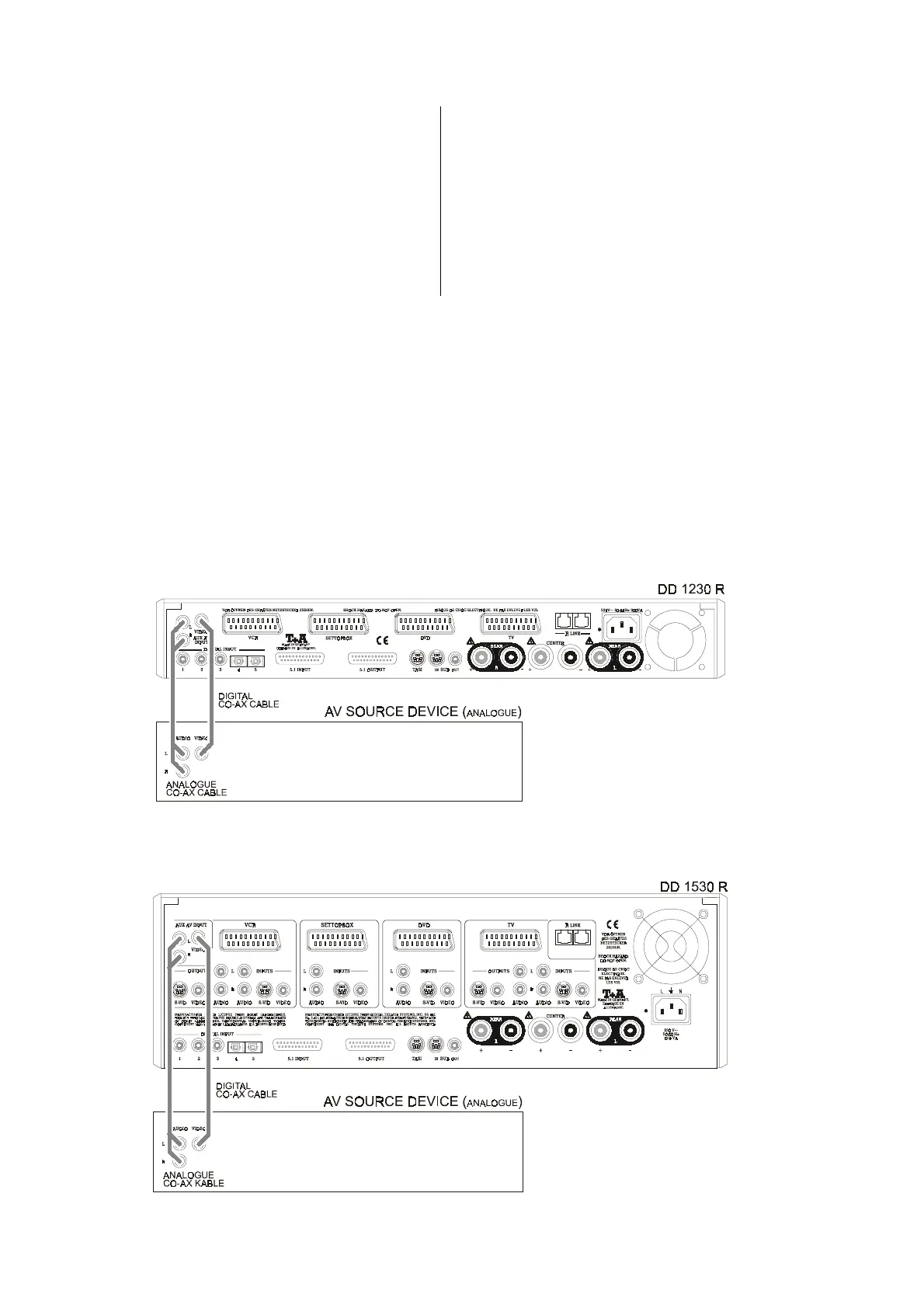

Wiring diagram 7
An analogue sound and picture source connected to the AUX-AV input of the
DD 1230 R
.
An analogue sound and picture source connected to the AUX-AV input of the
DD 1530 R
.
