Devices with recording and playback facilities (video recorder):
Connect the components as shown in wiring diagram
8
as follows:
• Connect the
SCART
socket on your video recorder to
the
VCR
socket on the decoder using a SCART lead.
Note:
If your video recorder does not feature a SCART
socket, use the VIDEO (Cinch) or S-VIDEO (Hosiden)
and AUDIO (Cinch) sockets on the decoder and the
video recorder.
• If you also wish to use the AV device as a high-quality
stereo source, connect its analogue output to a va-
cant input on the pre-amplifier and assign the source
in the
'
Source Setup
'
.
• Finally connect the mains power supply and switch
the system on.

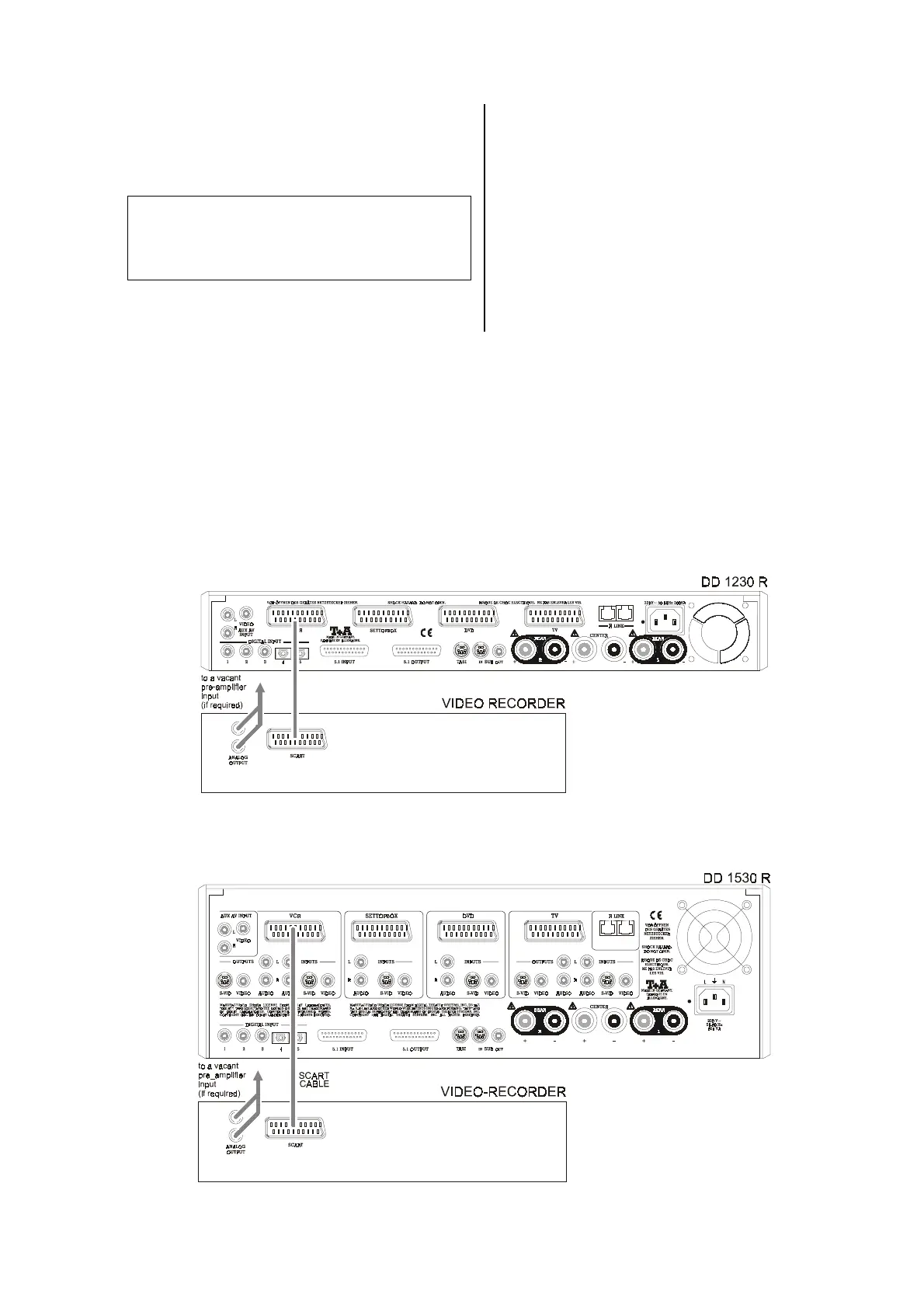

Wiring diagram 8
An analogue device with recording and playback facilities (video recorder) connected to the
DD 1230 R
.
An analogue device with recording and playback facilities (video recorder) connected to the
DD 1530 R
.
