Trail Tech Vapor User Manual

10
There are two screw holes on
the back of Vapor. Use the
included M4 bolts to mount to
any flat surface (e.g. stock
odometer mounting bracket or
body panel).
Make sure that the cables will
not be chafed or damaged in
their mounting location.
If other than provided screws
are used, make sure they are
not too long for mounting holes.
Screws that are too long will
damage internal components of
Vapor.

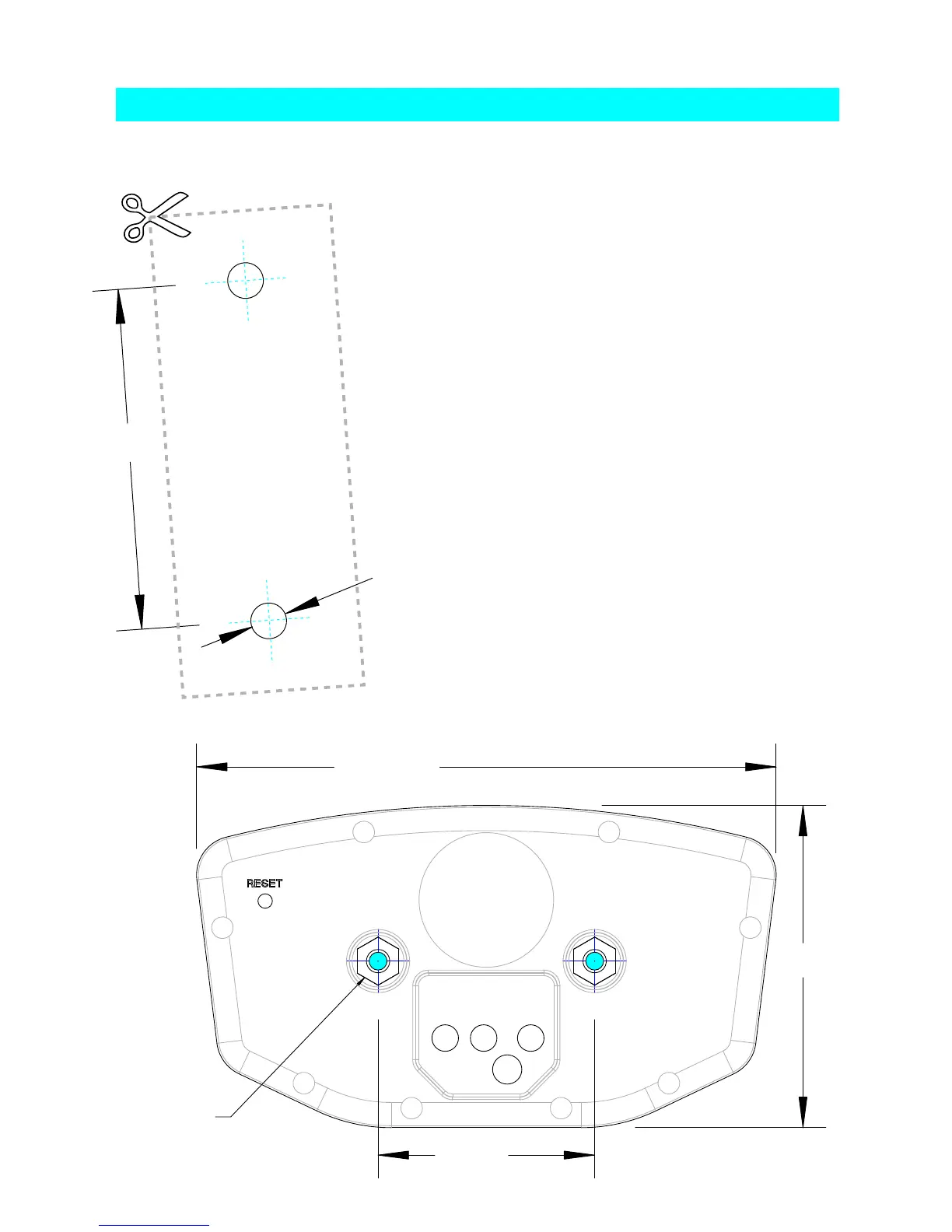

Flat/Surface Mount:
107.5mm
59.5mm
Mounting
Hole
Accepts
M4 Bolts
40mm
Drill Size:
• 4.2mm
• 0.165”
• M4
40mm
DRILL TEMPLATE
SCALE 1:1
Installation

Trail Tech Vapor Specifications

General

Display Type	LCD
Speedometer	Yes
Tachometer	Yes
Temperature Gauge	Yes
Odometer	Yes
Backlight	Yes
Trip Meter	Yes
Clock	Yes
RPM Range	0 to 20, 000 RPM
Water Resistance	Yes
Mounting Options	Handlebar mount
Dimensions	4.2 x 2.3 x 1.2 inches
