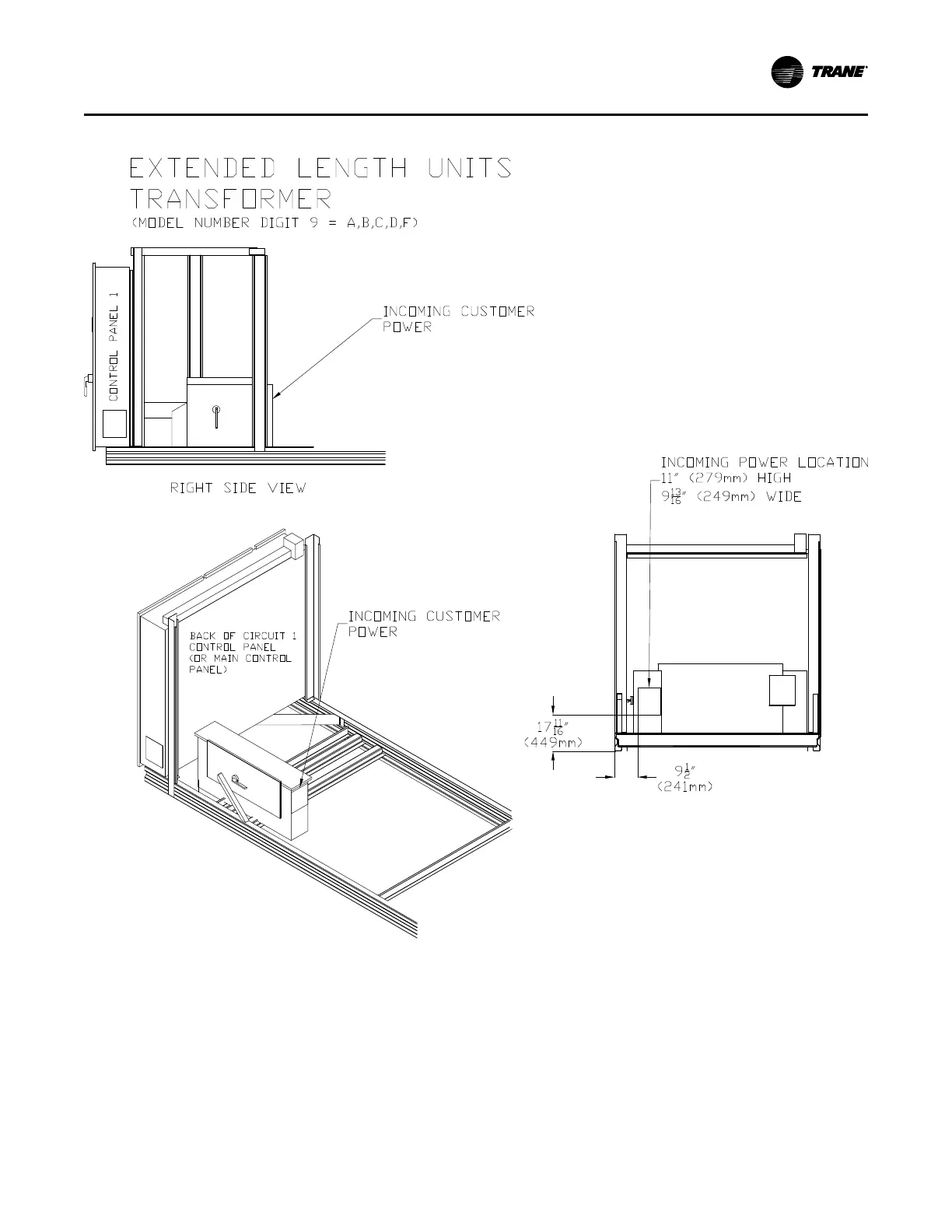

Figure 22. Incoming customer power — transformer
For units larger than 330 tons:
Units with dual power connections will have different
spacing between the connections. Units with a single
power connection will shift in regards to the unit extents
based on tonnage.
• Dual point power (model number digit 29 = 2): 11V units
(model number digits 5-7 = 380, 450)
• Single point power (model number digit 29 = 1): 11V
units (model number digits 5-7 = 380, 450)
Cut holes into the location indicated for the appropriately-
sized power wiring conduits. The wiring is passed through
these conduits and connected to the terminal blocks, or
circuit breakers.
For 150 to 330 ton units:
• The high voltage field-provided connections are made
through patch plate on the right side of the main control
panel or on the right side of the voltage autotransformer
panel.
