82
AC-SVX003A-EN
Power Up Diagram
The following diagram shows the respective TD7
AdaptiView™ screens during a power up of the Symbio™
800 and display. This process takes 15 seconds for the
Symbio™ 800, and 105 seconds for the display. On all
power ups, the software model always will transition
through the 'Stopped' Software state independent of the
last mode. If the last mode before power down was 'Auto',
the transition from 'Stopped' to 'Starting' occurs, but it is not
apparent to the user.

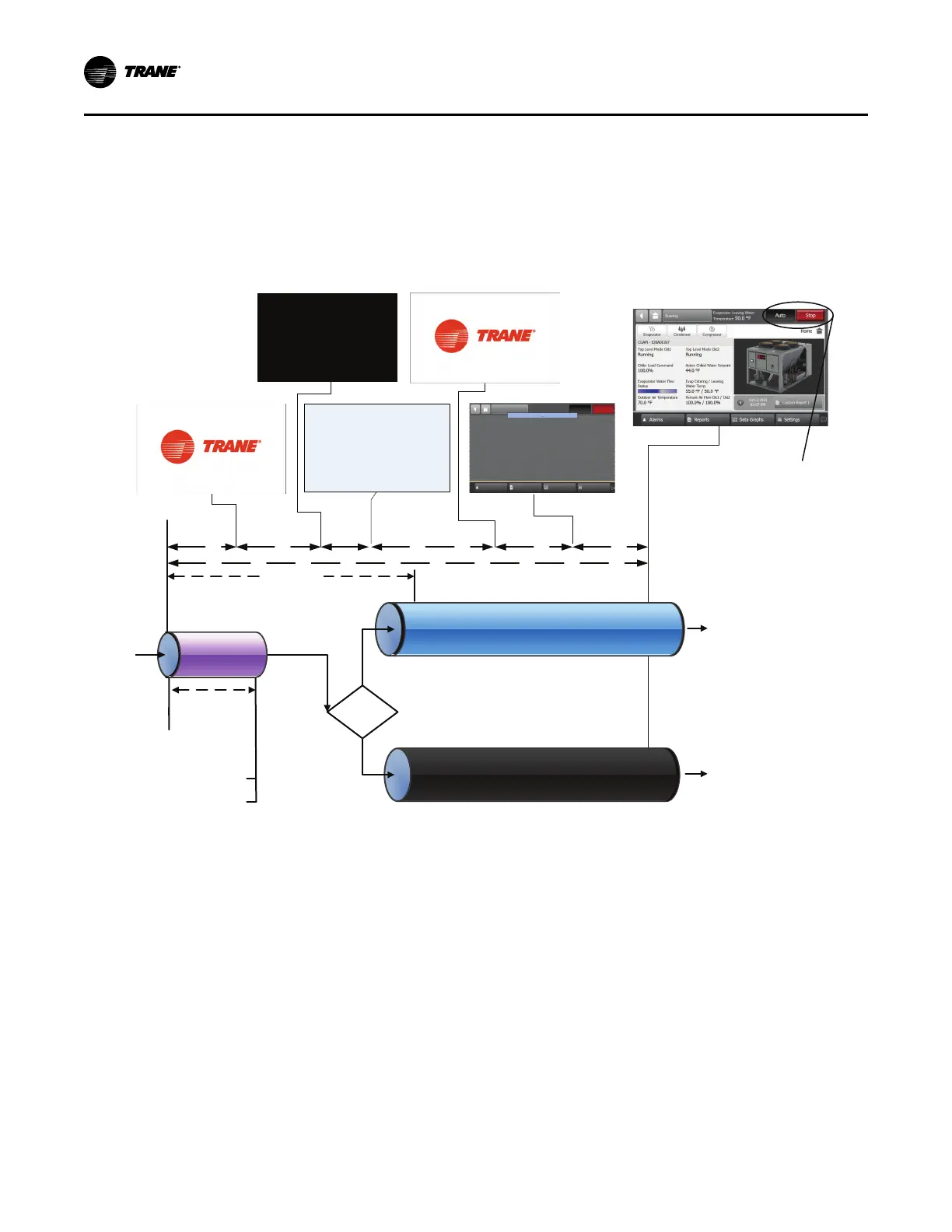

Figure 28. Sequence of operation: power up diagram
*Display will show
either Auto or Stop
button as “active”
(depressed) once
it is ready
External
Power
Applied
Symbio 800 Fully
Operational
Booting Symbio 800
(15 Seconds)
Operator Display and
Symbio 800 Start Booting
Last Mode
Auto*
Last Mode
Stop*
IPC Bus Comm Begins
Remain in
“Stop” indefinitely
until “Auto”
command- See
“Stopped To Starting”
IF
(45 Seconds)
Minimum Time Until 1st Compressor Could Restart
(if “Power Up Start Delay” set to 0; Default is 105 sec)
Continue Along Start
Sequence
See “Power Up
to Starting”
10
Sec
First Trane Logo
Grey Screen
Second Trane Logo - Loading
User Interface Template...
Black Screen
Loading
Data….
Display Ready
20
Seconds 30
Seconds
25
Seconds
Operator
Display
Boot
Up
and
Load
-
105
sec
Total
to
Display
Ready
15
Sec5
Sec
Stopped
White
Screen
Starting Sequence
See “Power Up to
Starting” Sequence Diagram
Symbio 800
Boot Up
Start-up and Shutdown
