Service Clearance

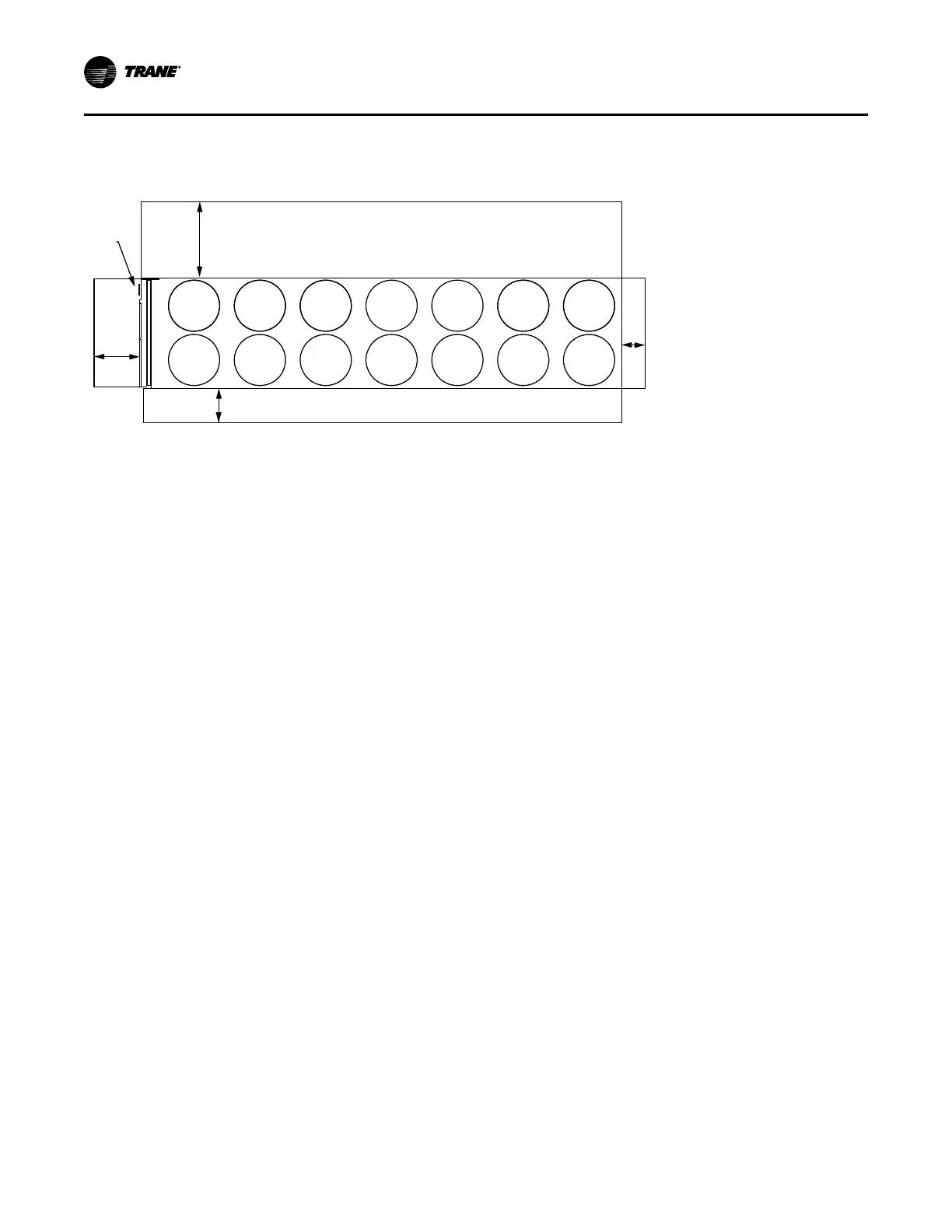

Figure 3. Unit service clearance requirements
36” (914.4mm)
40”
(1016
mm)
24”
(600.1mm)
Control
Panel
NO OBSTRUCTIONS ABOVE UNIT
TOP VIEW
See
note 1
85” (2160mm)
See note 2
NNootteess::
1. A full 40” clearance is required in front of the control panel. Must be measured from front of panel, not end
of unit base.
2. Clearance of 85” on the side of the unit is required for coil replacement. Preferred side for coil replacement is
shown (left side of the unit, as facing control panel), however either side is acceptable.
DDiimmeennssiioonnss aanndd WWeeiigghhttss
