Trane Ascend ACR Series User Manual

AC-SVX001A-EN
59

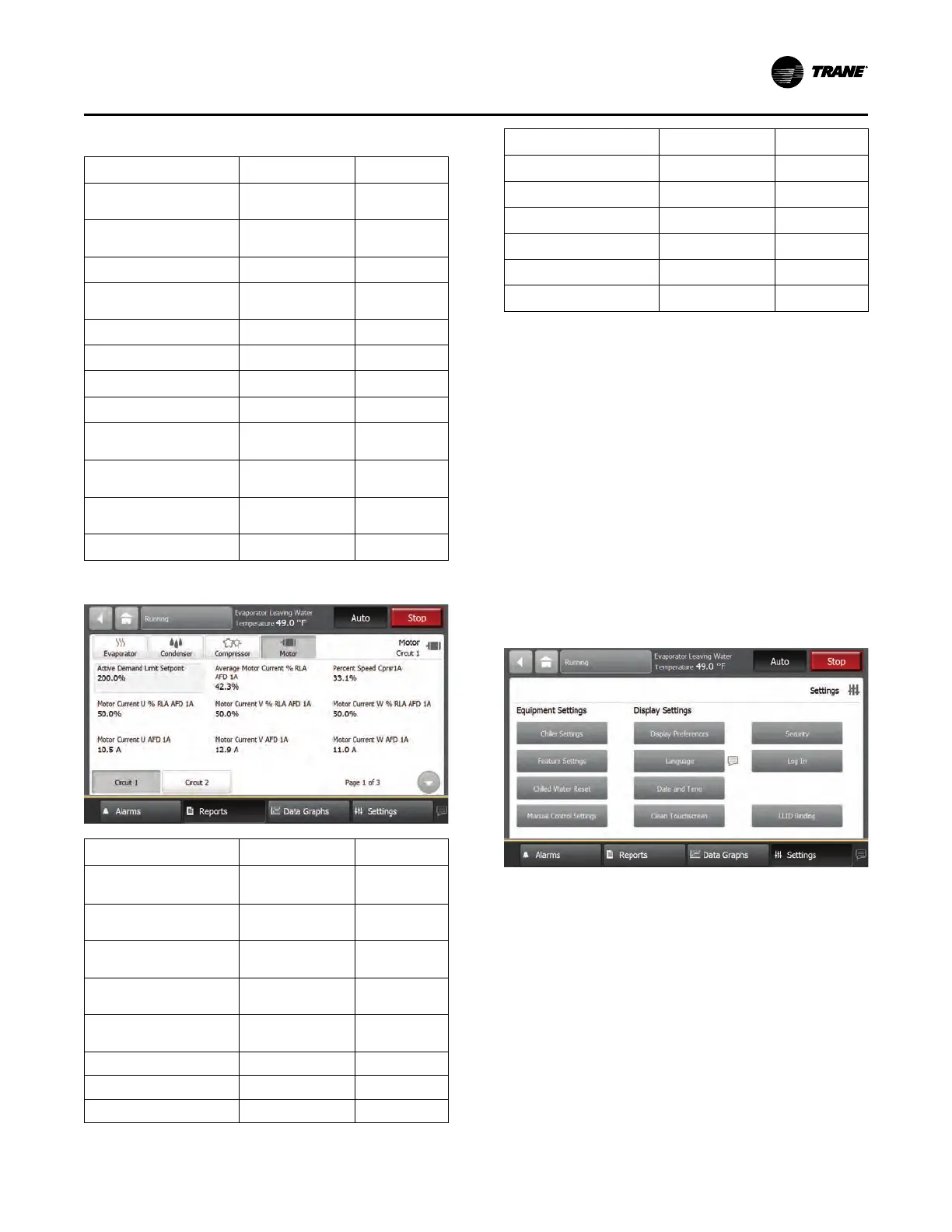

Table 23. Report — compressor screen items
Description
Resolution Units
Compressor Running
Status
On,Off
Text
Average Motor Current %
RLA XX.X% %RLA
Compressor Starts
XX Text
Compressor Running
Time XX:XX Hr:Min
Oil Loss Level Sensor
Wet, Dry
Text
Discharge Temperature
X.X
°F / °C
Discharge Temperature
X.X
°F / °C
Compressor Oil Pressure
XXX.X
PSIA/kPaA
Evaporator Refrigerant
Pressure XXX.X
PSIA/kPaA
Condenser Refrigerant
Pressure XXX.X
PSIA/kPaA
Differential Refrigerant
Pressure XXX.X
PSIA/kPaA
Frequency Command
XX.X Hz
Figure 36. Report — motor screen
Description
Resolution Units
Active Current Limit
Setpoint
X.X %RLA
Average Motor Current %
RLA X.X %RLA
Starter Motor Current L1
%RLA X.X %RLA
Starter Motor Current L2
%RLA X.X %RLA
Starter Motor Current L3
%RLA X.X %RLA
Starter Motor Current L1 X.X A
Starter Motor Current L1 X.X A
Starter Motor Current L1 X.X A
Description
Resolution Units
Starter Input Voltage AB
XXX.X V
Starter Input Voltage BC
XXX.X V
Starter Input Voltage CA
XXX.X V
Average Motor Current
X.X A
Average Phase Voltage
XXX.X V
Frequency Command
XX.X Hz
Equipment Settings
You can use the TD7 display to monitor and change a
variety of equipment settings.
Accessing Equipment Settings
Equipment Settings are found on the left column of the
Settings screen as shown in figure below. Included are
the following:
• Chiller Settings
• Feature Settings
• Chilled Water Reset
• Manual Control Settings
Each selection will provide access to the detailed
settings submenus.
Figure 37. Settings screen
Viewing and Changing Equipment Settings
Each button in the Equipment Settings column on the
Settings screen takes you to a submenu which displays
the name of a setting and its current value. See figure
below. Click any button to select and change the value.
NNoottee:: A page number appears in the lower right corner
of the screen. If a screen contains more than one
page, up/down arrows also appear for viewing
the other pages, as in figure below.
CCoonnttrroollss
