Trane Ascend ACR Series User Manual

58
AC-SVX001A-EN

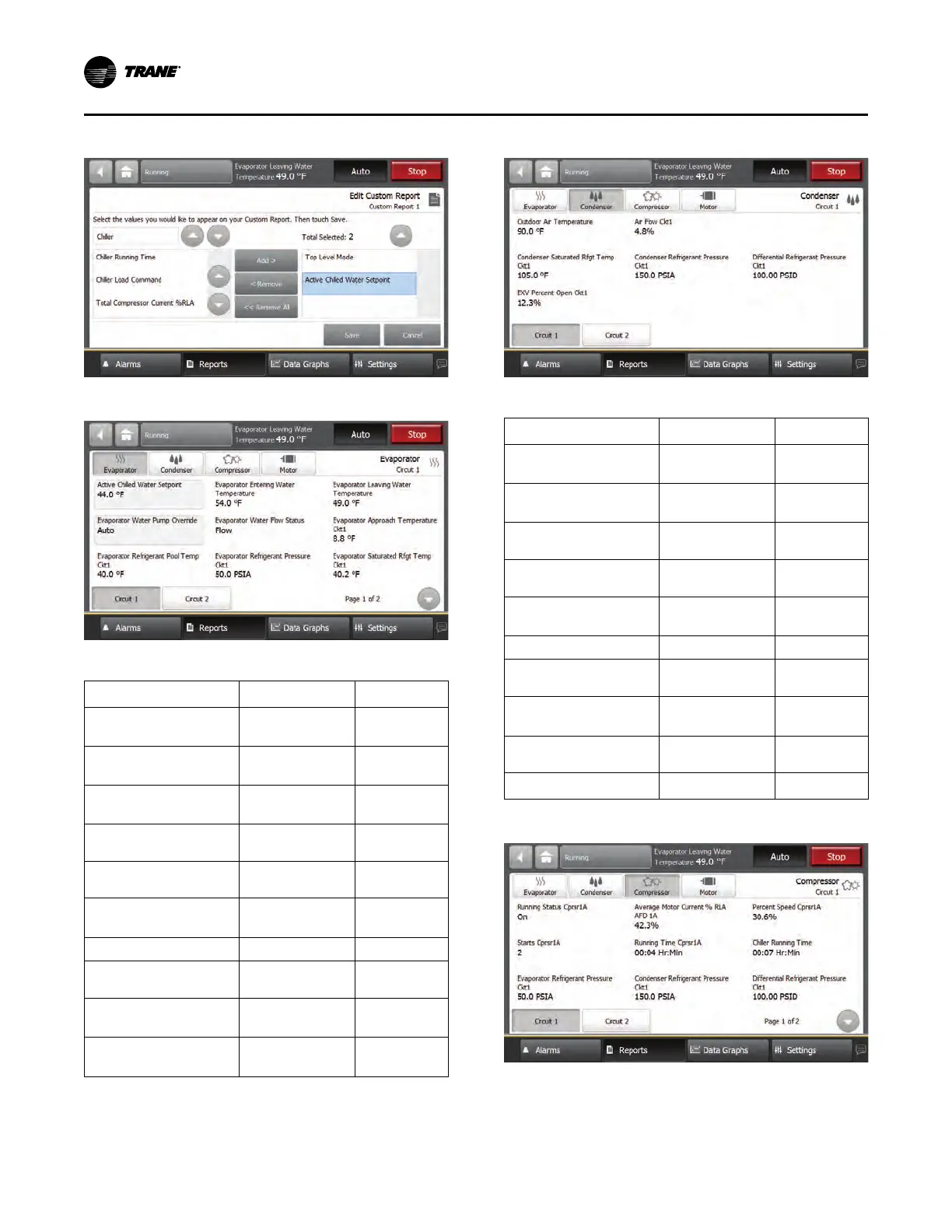

Figure 32. Edit custom report screen
Figure 33. Report — evaporator screen
Table 21. Report — evaporator screen items
Description
Resolution Units
Active Chilled Water
Setpoint
X.X
°F / °C
Evaporator Entering
Water Temperature
X.X
°F / °C
Evaporator Leaving Water
Temperature
X.X
°F / °C
Evaporator Water Flow
Status
Flow, No Flow
Text
Evaporator Water Pump
Override
Auto, On
Text
Evaporator Approach
Temperature
X.X
°F / °C
EXV Position Percent X.X %
Evaporator Refrigerant
Pressure XXX.X
PSIA/kPa
Evaporator Saturated
Rfgt Temp
X.X
°F / °C
Evaporator Refrigerant
Liquid Level
X.XX
in/mm
Figure 34. Report — condenser screen
Table 22. Report — condenser screen items
Description
Resolution Units
Condenser Entering
Water Temperature
X.X
F / C
Condenser Leaving Water
Temperature
X.X
F / C
Condenser Water Flow
Status
Flow, No Flow
Text
Condenser Water Pump
Override
Auto, On
Text
Condenser Approach
Temperature
X.X
F / C
EXV Position Percent X.X %
Condenser Refrigerant
Pressure XXX.X
PSIA/kPa
Condenser Saturated Rfgt
Temp
X.X
F / C
Differential Refrigerant
Pressure XXX.X
PSIA/kPa
Outdoor Air Temperature
X.X
F / C
Figure 35. Report — compressor screen
CCoonnttrroollss
