Trane Ascend ACR Series User Manual

AC-SVX001A-EN
27

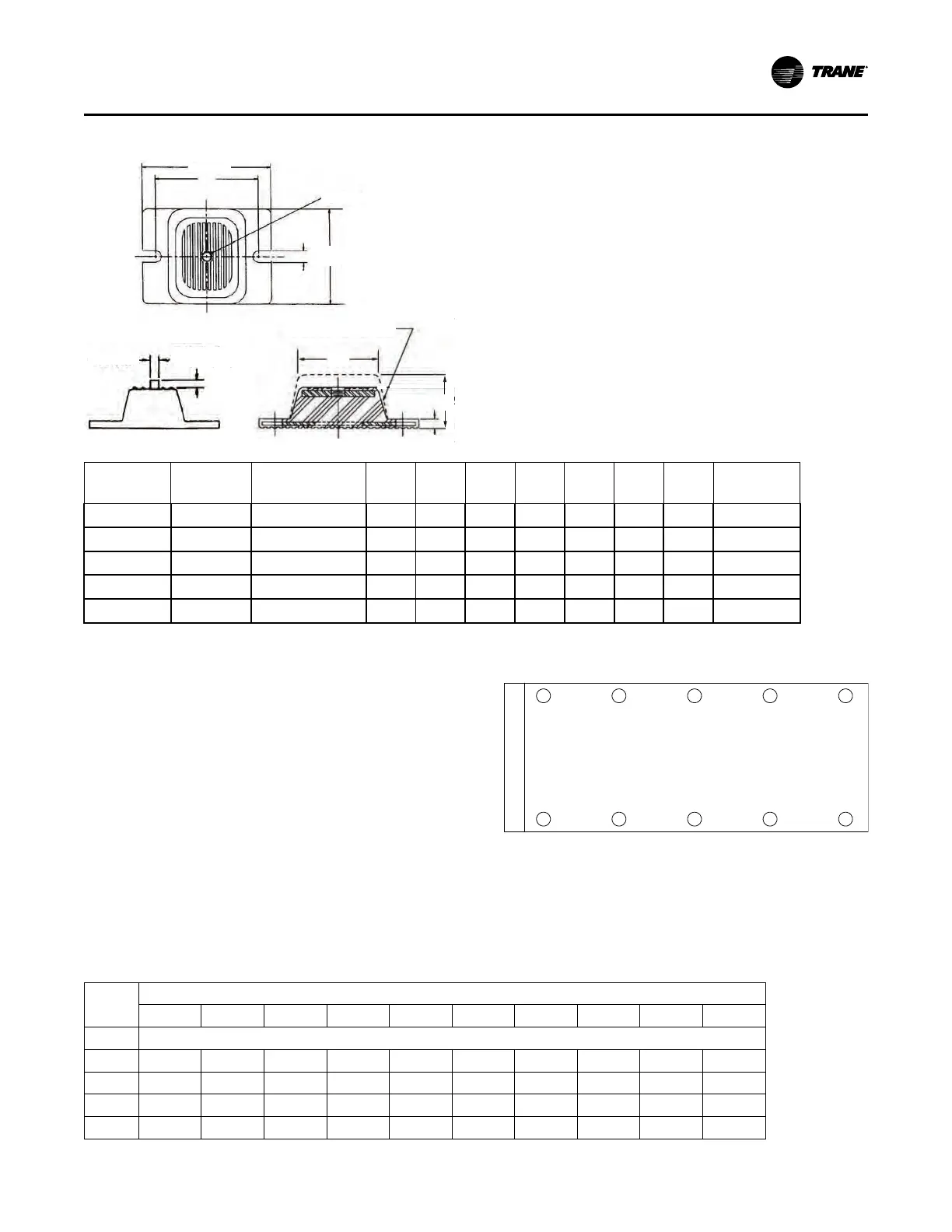

Figure 11. Elastomeric isolator
0.50 in
1.60±0.25
Mounting molded in neoprene
3.0
2.75
0.38
1/2 - 13NC - 2B
0.56 in
F
E
G
D
A
B
C
Isolator
Max Load
(lb)
Max Deflection
(in)
A B C D E F G
Type
Black-60 1100 0.5 2.5 2.88 0.25 1.13 5.50 4.12 3.38 RDP-3
Brown-61 1500 0.5 3.0 2.75 0.38 1.60 6.25 5.00 4.63 RDP-4
Red-62 2250 0.5 3.0 2.75 0.38 1.60 6.25 5.00 4.63 RDP-4
Green-63 3000 0.5 3.0 2.75 0.38 1.60 6.25 5.00 4.63 RDP-4
Black-64 4000 0.5 3.0 2.75 0.38 1.60 6.25 5.00 4.63 RDP-4
Mounting Locations, Weights, Isolators
See figure below for mounting point location
designations.
Figure 12. Mounting point locations (top view)
1 3 5 7
Control panel
9
2 4 6 8 10
NNoottee:: Quantity of isolators varies with unit. See
submittal for actual number required for specific
unit.
Point Weights
Table 7. Point weights, units with InvisiSound standard or superior option - I-P (lb)
Unit
Size
Point Weights (lb)
1 2 3 4 5 6 7 8 9 10
Standard Length Units
150 1818 1609 1661 1478 1516 1586 731 932
165 1752 1710 1709 1652 1744 1768 941 1099
180 1774 1757 1741 1723 1781 1844 952 1124
200 1777 1823 1744 1651 1714 1698 1501 1636 126 136
IInnssttaallllaattiioonn MMeecchhaanniiccaall
