2) Supplied as monobloc

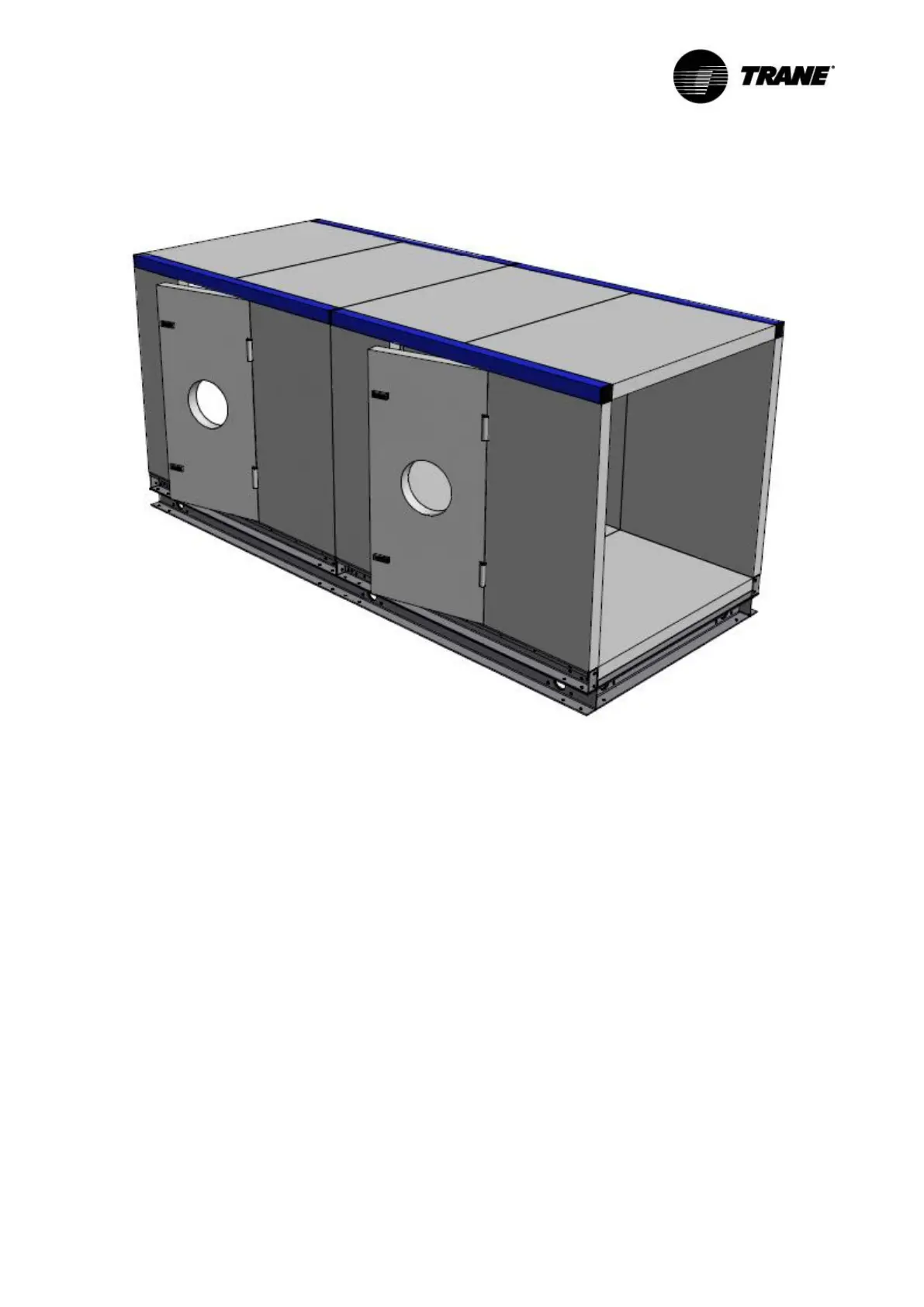

Figure 3: Delivery as monobloc
- If the space conditions allow the delivery of a monobloc, then the assembly at the installation
location is much faster.
- Monobloc units have an additional counter-frame on which the components are already pre-
assembled.
- The counter-frame is provided with holes diameter 50 mm, which can be used for the overlift-
ing, see chapter 3.4 (Overlifting of monoblocs).
- Size and weight of the monobloc must be determined from the data on the AHU drawing and
have to be considered for the determination of the load carrying equipment and hoists, see
chapter 3.4.1 (Weight details for monoblocs).
3.2 Unloading / transportation to installation location
Forklift, lift truck transport
In accordance with the TRANE drawing the AHU will be delivered as one or more delivery sec-
tion(s). The AHU parts are delivered on a pallet and can be unloaded and moved by forklift or lift
truck. Forces must always act on the base frame, see Figure 4.
