6.3.2 Ball siphons
If ball siphons with the below shown design are included in the delivery from TRANE, then the fol-
lowing items should be observed during installation:
Depending on the suction side or pressure side mounting position, the siphon body has to be in-
stalled so that the direction of the arrow (see Figure 107) corresponds to the flow direction.
- Pa = suction side
+ Pa = pressure side

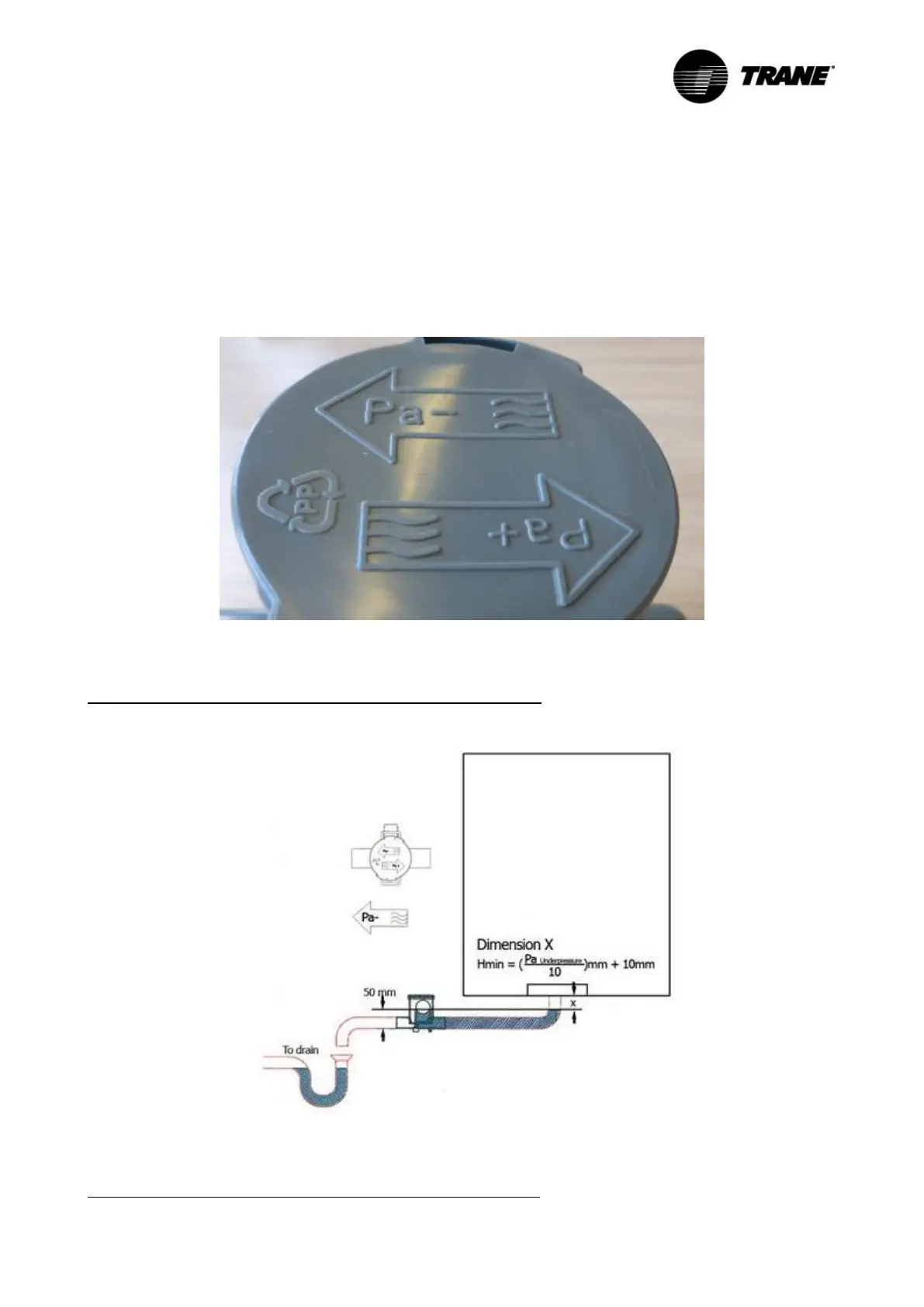

Figure 107: Observe the mounting position - flow direction according to the arrow
Siphon on suction side (in direction of airflow before the fan)
Figure 108: Suction side execution
Siphon on pressure side (in direction of airflow after the fan)
