Trane CCEB - Detailed Solutions and Connection Components

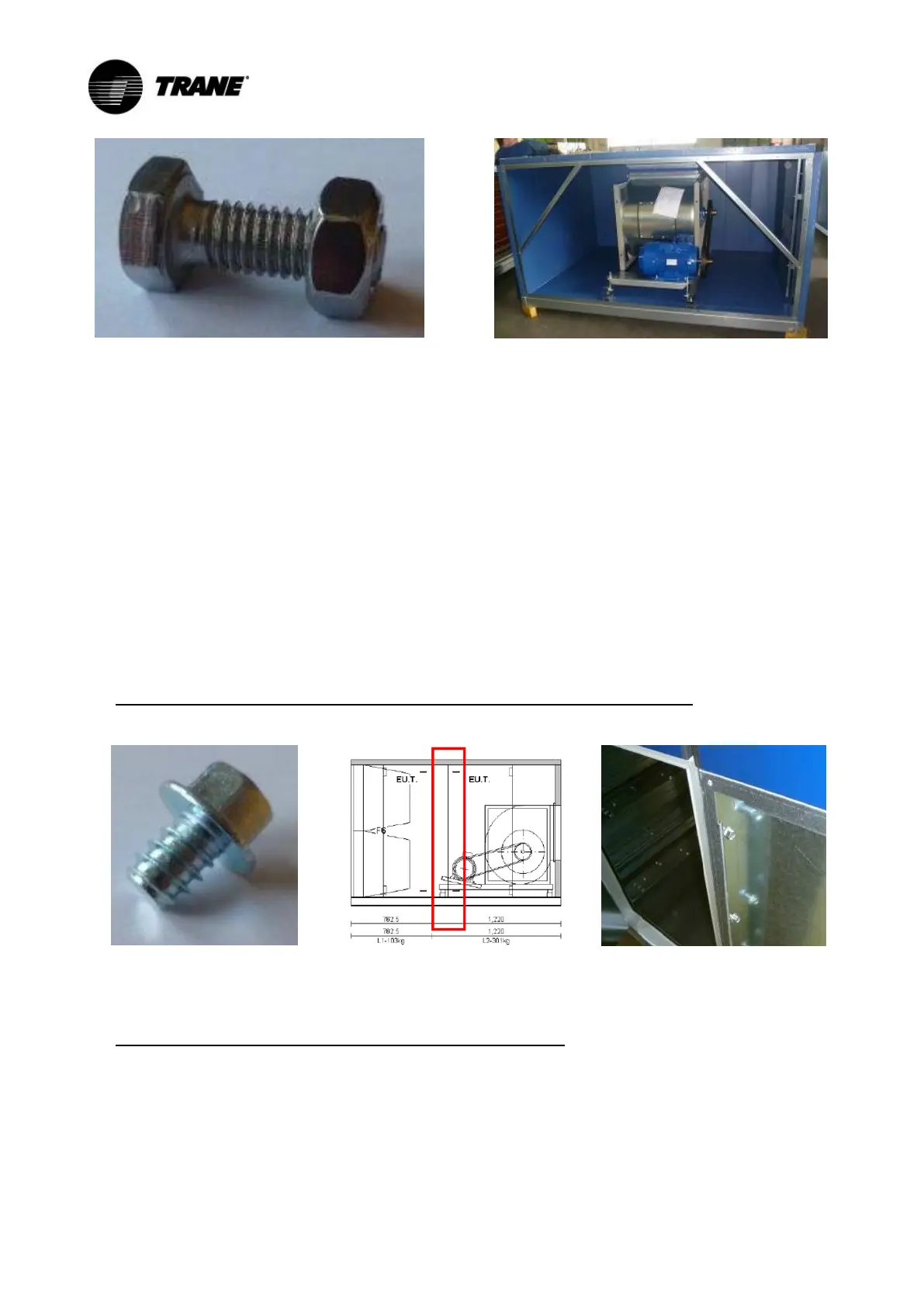

Figure 45: Hexagon bolt with nut M6x6
Figure 46: Connection frame
Additionally the following rule applies:
1) Internal mounted connection angles and frames are accessible and the sections are properly
aligned - The following connection is sufficient:
- in case B, connection only via connection angles
- in case C, connection only via connection frames
2) Internal mounted connection angles and frames are not accessible and/or the sections are
not properly aligned:
Connection between the internal panels, as described in case A, must be carried out addition-
ally.
5.1.3 Detailed solutions and connection components
- Connection between door frame / door frame and door frame / internal panel
Screw spacing: 152 mm
Figure 47: Tapping screw ø8 x 11
Figure 48: Joint on the AHU drawing
Figure 49: Connection between door
frame / internal panel
- Connection of 3 mm thick casing components without holes
