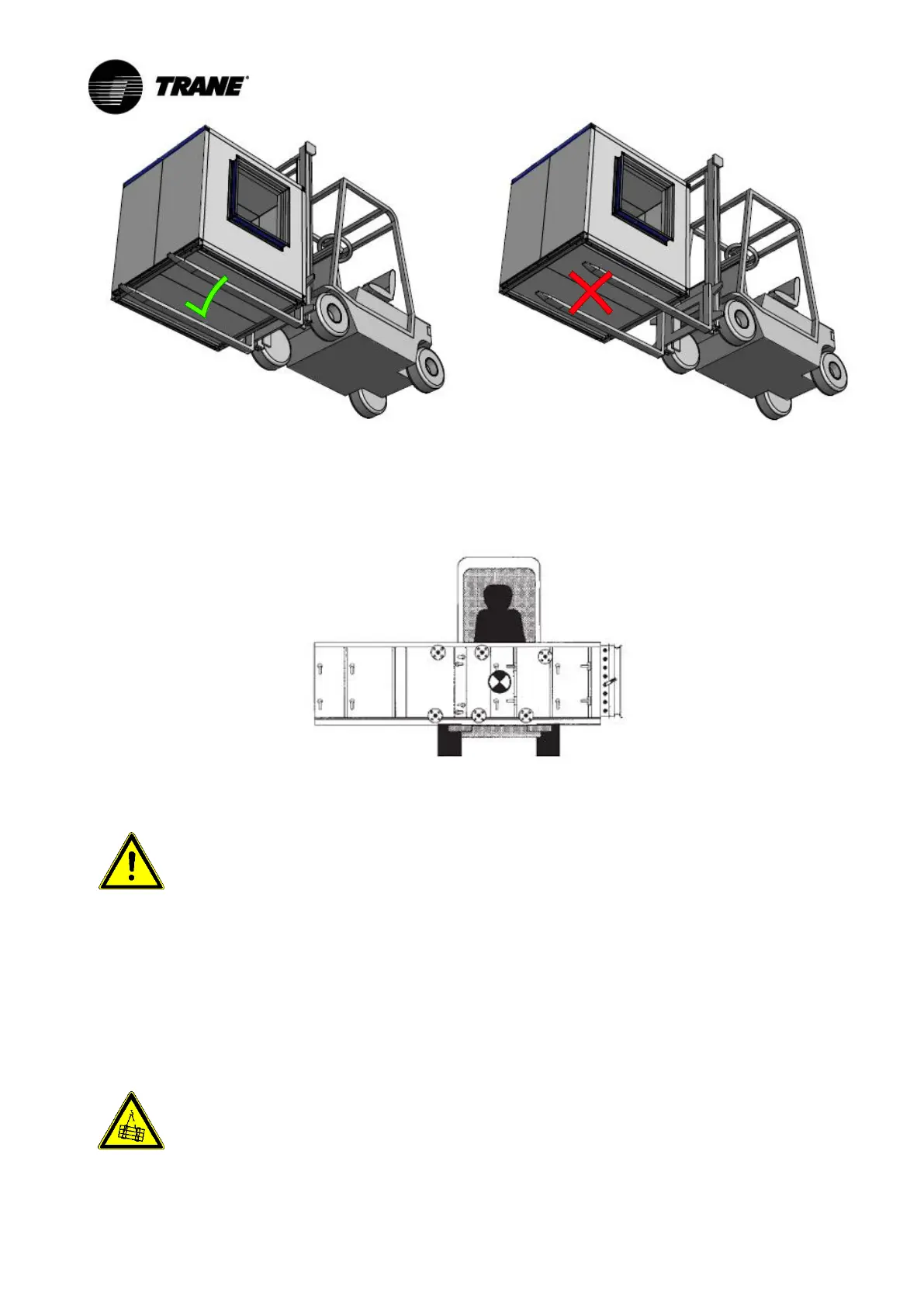

Figure 4: Transport correct
Figure 5: Transport incorrect
Center of gravity must be centrally located between the forks (see Figure 6). For large parts use
several lift trucks.
Figure 6: Center of gravity centrally between the forks
For the overlifting directly from the truck applies the following chapter 3.3
(Overlifting of AHU sections with crane lugs) for AHU sections or chapter 3.4
(Overlifting of monoblocs) for monoblocs.
3.3 Overlifting of AHU sections with crane lugs
Chapter 3.3 is only valid for the delivery form “Delivery in parts (delivery sections)”.
For overlifting of units delivered as “Monobloc”, see chapter 3.4.
- In addition to the actions mentioned in this chapter 3.3, the instructions accord-
ing to chapter 3.5 (Further necessary actions for the overlifting of both, de-
livery sections on crane lugs as well as monoblocs) have to be observed.
- Parts of the AHU may only be lifted with lugs individually - never screw parts
together before lifting.
- Lateral load on lifting lugs is not allowed.
