Trane CCEB - Control of Weight Limits of Delivery Sections

The Lifting of monoblocs by crane lugs is permitted only in exceptional circum-
stances and requires the written approval by TRANE.
3.3.1 Control of weight limits of delivery sections
Depending on the base frame height (see Figure 15), delivery sections may be lift-
ed with lifting lugs up to the following weight, refer to Table 1.
Base frame height H [mm]
Max. section weight [kg]
80
1.500
100
1.500
150
4.000
200
4.000
Table 1: Base frame heights, depending on the AHU weight
The weight of single delivery sections is shown in the attached drawing (on each delivery sec-
tion).The delivery sections are marked with L1, L2, L3, ... on the drawing and with the same num-
ber on the section itself. Example, refer to Figure 7: Delivery section L5 = 628 kg

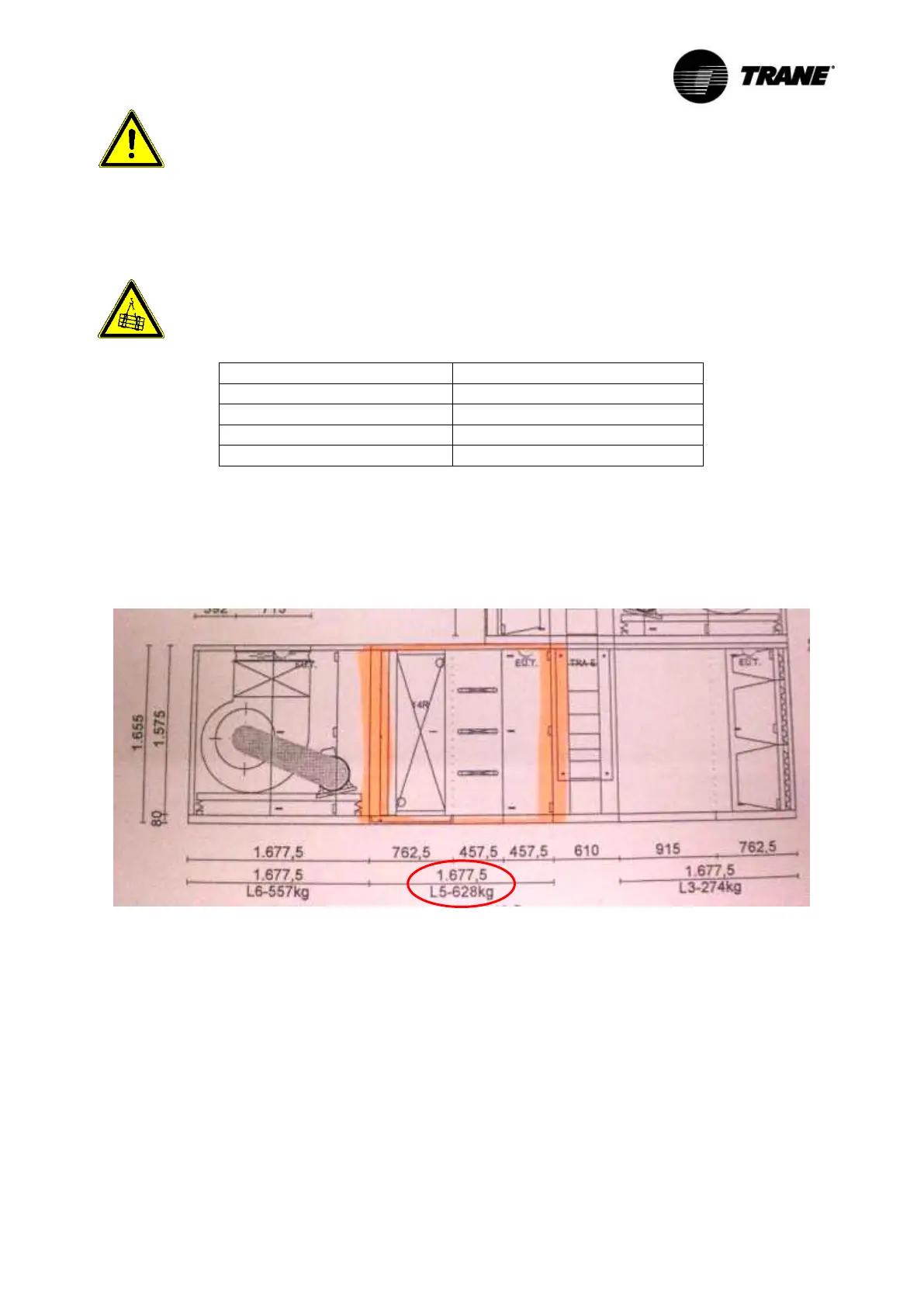

Figure 7: AHU section drawing with weight details
