Trane CCEB - Lifting of Delivery Sections with Crane Lugs

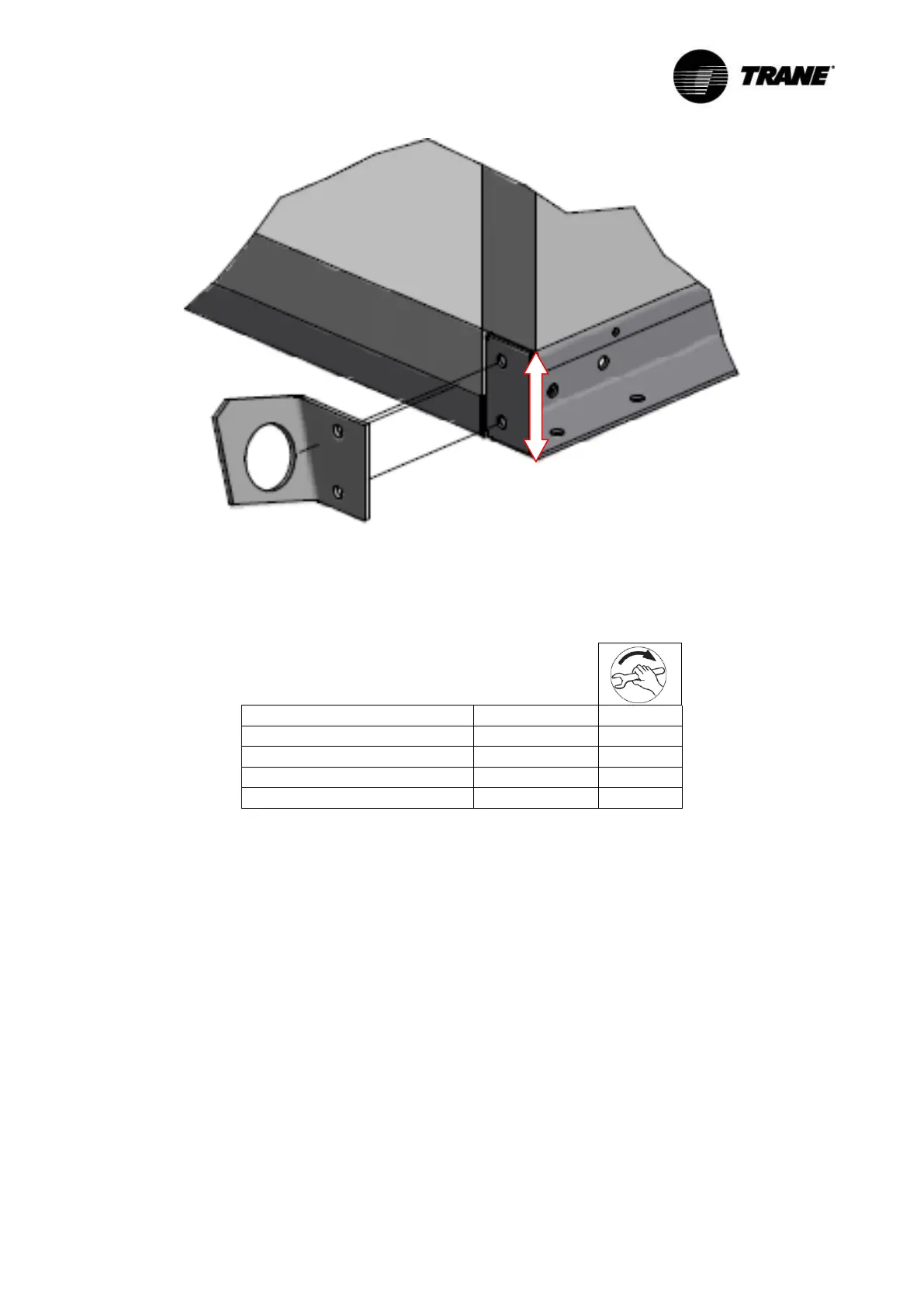

Figure 15: Base frame height
Base frame height H [mm]
Screw type
Nm
80
M8x20
10
100
M8x20
10
150
M12x30
30
200
M12x30
30
Table 2: Anzugsdrehmoment für Schrauben
3.3.4 Lifting of delivery sections with crane lugs
- The load carrying equipment must not run over the operating side of the AHU, but it must run
over the opening or the front side of the AHU (Figure 16).
- The force effect has to take place uniformly across all four crane lugs of a delivery section.
- After the pre-positioning of the delivery section at the desired position, remove the lifting lugs
and use them for the next delivery section.
Base frame height
