Installation
14 SO-SVN037A-EN
Alternative mounting location:
If the control panel mounting brackets are obstructed by thick
layers of insulation, electrical conduits, etc., such that it is not
possible to effectively install the display arm in the
recommended mounting location, it is permissible to mount the
display arm onto the side of the control panel enclosure as
shown in the below figures.
It is preferable to secure the arm to the right-hand end of the
control panel enclosure, which is at the opposite end of the
cabinet from the door hinges. However, if a specific retrofit
situation makes it necessary to mount the display arm on the
left-hand end of the enclosure, please note that all of the cables
provided within the display upgrade kit are long enough to
allow this installation location to be utilized.
If an alternative mounting location is chosen, please be sure to
take all of the precautions necessary to ensure that no
electrical components inside the control panel
Mounting Display Arm
Note:
• If utilizing the alternative mounting location, before drilling
the display arm mounting holes through the side of the
control enclosure, the following steps must be taken to
prevent damaging any of the electrical components inside
of the enclosure:
– Carefully position the template to ensure that all 4
mounting holes will be located such that the installed
mounting bolts will not come into contact with any of the
electrical components.
– Before drilling, ensure that all electrical components
are adequately protected from metal filings.
Temporarily remove components if necessary. Failure
to prevent metal filings from lodging against or inside of
these electrical components can cause them to fail
when they are re-energized.
– Before and during drilling, ensure that all electrical
cables and wires are not in line with the path of the drill
bit. Failure to prevent damage to these components
can cause electrical shorts and/or sparks to occur when
the system is re-energized.
– After all 4 mounting holes are drilled, use an electronics
vacuum to remove any dirt, debris, or metal filings that
may have accumulated inside of the control
enclosure.Be sure to properly reinstall any components
that were temporarily removed for their protection
during the drilling process.
1. Using the template provided, mark the location of the 4
mounting holes required on the chosen mounting bracket.
2. Use a 3/8-inch bit to drill the holes.

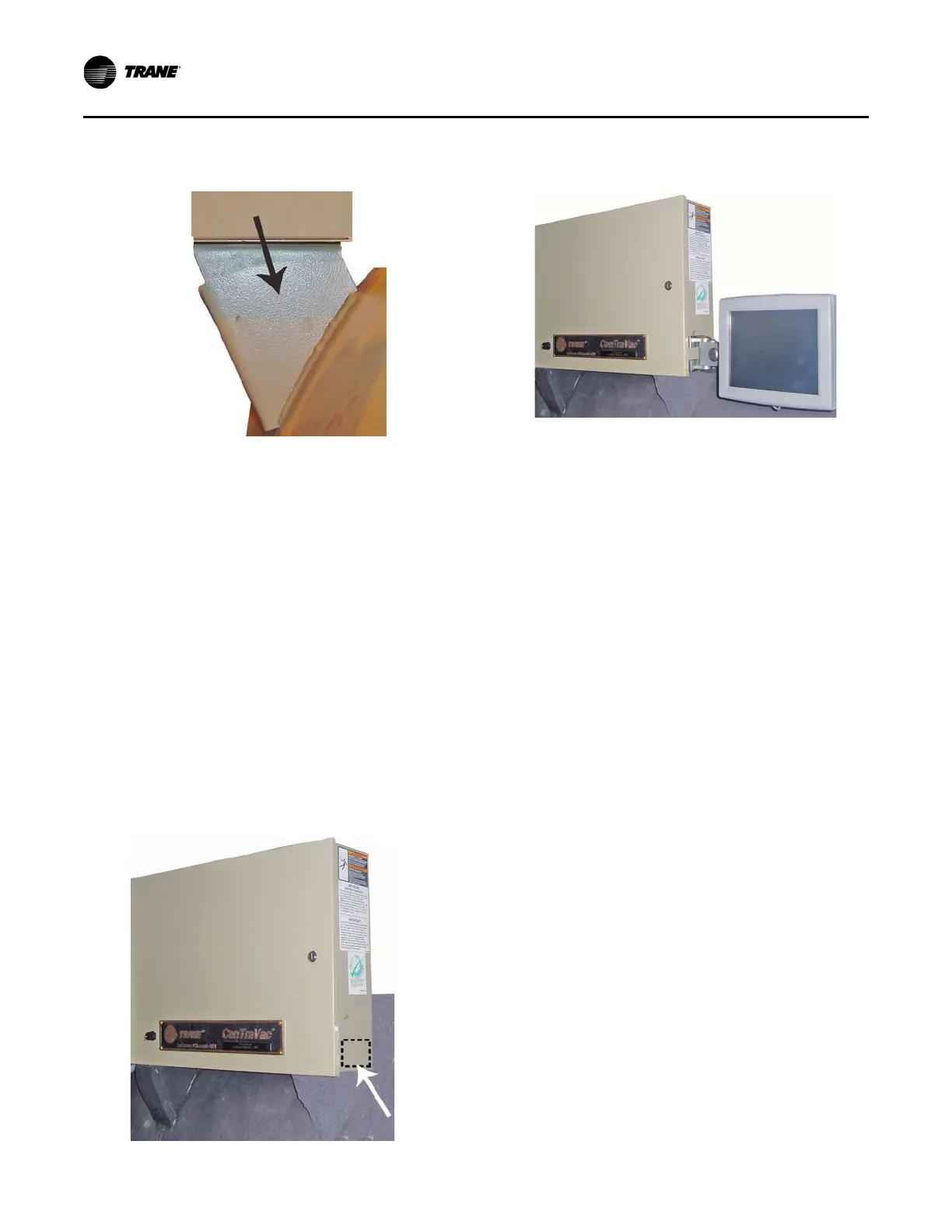

Figure 16. Recommended mounting location on right-
hand control panel bracket
Figure 17. Alternative mounting location chosen due to
retrofitted insulation layers
Figure 18. Arm/display assembly mounted at
alternative location
