Installation
26 SO-SVN037A-EN
Mount transducers on the entering and leaving side water box
locations with the transducer facing upwards and connect to
unit control buss. After system is filled, loosen the transducer
in its threaded fitting. Then crack the isolation valve until water
starts dripping from threads. Close the valve and re-tighten the
transducer, and then re-open the valve for use.
High Accuracy Customer Meter Option
The high accuracy customer meter option provides an analog
input/output LLID to monitor a customer provided high
accuracy meter 0-10 Vdc or 4 – 20 mA outputs. (Rosemont,
etc.) This option allows monitoring of condenser, evaporator
flow and auxiliary heat exchangers.
Install needed DAIO LLID(s) (BRD04875) in CVRF control
panel:
1. LLID (1A21) is needed for EVAP and COND water flow.
Connect flow meter wires to 1A21-J2-1 and 1A21-J2-1 for
EVAP, 1A21-J2-4 and 1A21-J2-5 for COND.
2. LLID (1A28) is need for HR Aux/COND water flow.
Connect flow meter wires 1A28-J2-1 and 1A28-J2-1 for HR
flow or Aux COND.
Heat Recovery/Aux COND Option
When heat recovery/Aux COND option is selected, a DHVBI
LLID (BRD04874) is required as 1A29 and wires matrix show
as following:
Energy Meter Option Installation
The Trane energy meter provides instrument grade accuracy
power, volts and amps monitoring of Symbio controls
installations. It has 1% accuracy for measuring both real power
and energy and reactive power and energy. All data measured
by the meter is communicated via Modbus to Symbio control
system. For more detail information, refer to Energy Meter For
CTV Symbio 800 Upgrade Systems - Installation Instructions
(BAS-SVN224*-EN).

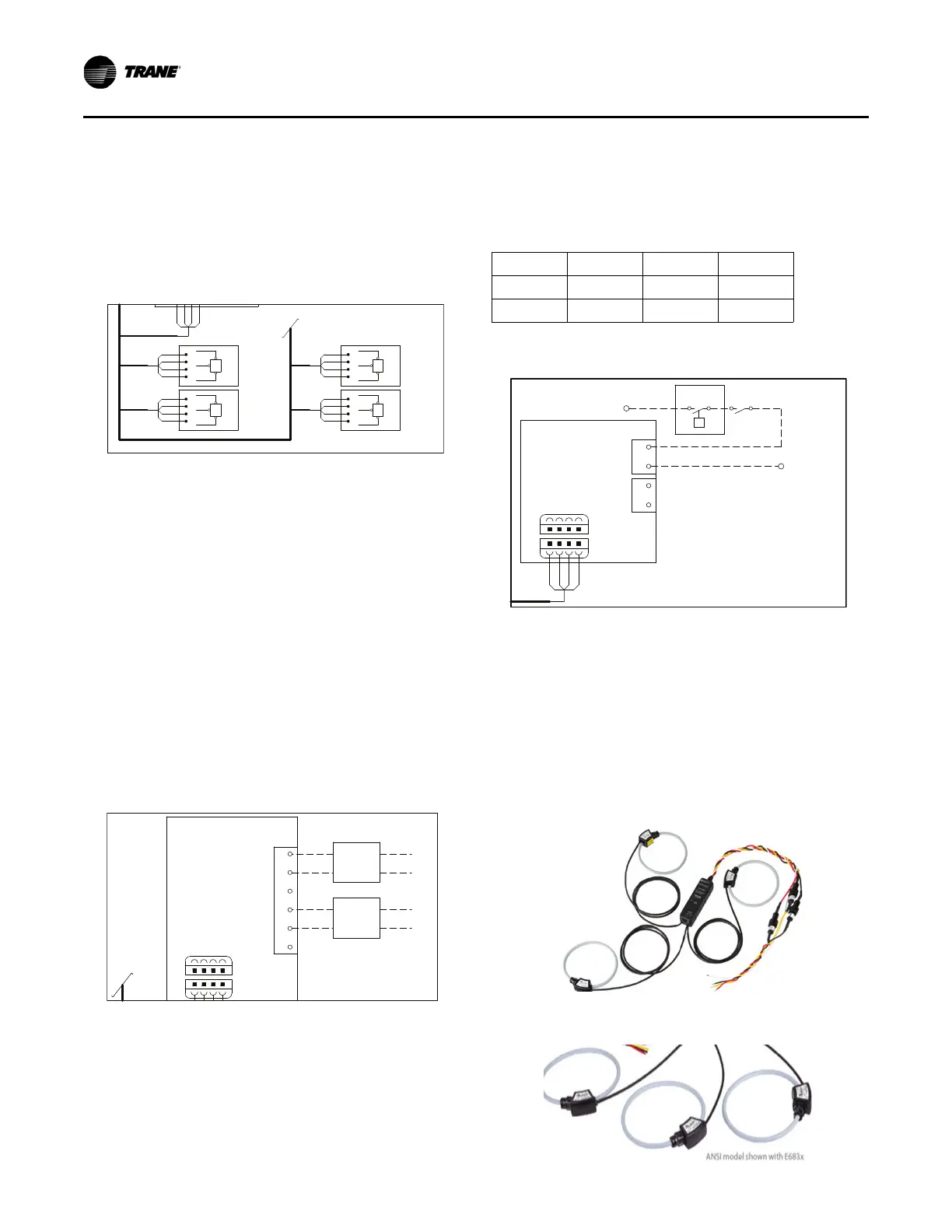

Figure 47. Standard accuracy flow meter wiring, ref.
50712792
Figure 48. High accuracy customer meter flow meter
wiring, ref. 50712792
WATER PRESSURE
EVAP ENTERING
OPTIONAL
TRANSDUCER
WATER PRESSURE
EVAP LEAVING
OPTIONAL
TRANSDUCER
WATER PRESSURE
COND ENTERING
OPTIONAL
TRANSDUCER
WATER PRESSURE
COND LEAVING
OPTIONAL
TRANSDUCER
IPC BUS
FLOW METER
RED
-
Pg
+
SIG
4BP4
-
Pg
+
SIG
4BP5
-
Pg
+
SIG
4BP6
-
Pg
+
SIG
4BP7
1A21 DUAL ANALOG I/O
OPTIONAL
INPUT 1
OUTPUT 1
2
1
GND
INPUT 2
OUTPUT 2
GND
4
3
J2
5
6
COND FLOW METER
5B2 CUSTOMER PROVIDE
4-20mA
FLOW
METER
OUTPUT
EVAP FLOW METER
5B1 CUSTOMER PROVIDE
SIGNAL
24VDC
1A2 J3-1
0V
4-20mA
FLOW
METER
24VDC
1A1 J3-1
0V
1A2 J3-2
1A1 J3-2
OUTPUT
SIGNAL
IPC BUS
4
4
J11
1
J1
1
OPTIONAL WATER FLOW METER
CUSTOMER PROVIDE 4-20MA INPUT
Table 3. Wire matrix
Wire # AWG From To
14B 16 1A29-J3-2 1X1-21
2K 16 1A29-J3-1 1X2-10
Figure 49. Heat recovery/Aux COND flow switch wiring
Figure 50. Energy meter
Figure 51. Rogowski CTs
1X1-15
d
P
5S11 5K3
REQUIRED OPTIONAL
AUX CONDENSER
WATER FLOW SWITCH
HEAT RECOVERY
1X1-7
1A29 DUAL HIGH VOLTAGE BINARY INPUT
4
4
1
2
1
J2
RED
J11
J1
1
1
J3
2
WATER FLOW SWITCH
AUX CONDENSER
HEAT RECOVERY
OPTIONAL
