Installation
SO-SVN037A-EN 25
The single box is 7-inch Long x 5-inch Wide x 5-inch Tall.
The triple box is 15.5-inch Long x 6-inch Wide x 4-inch Tall.
Water Flow Measurement Options
Standard Accuracy Option
Water flow is determined by measuring pressure drop across
heat exchanger using water pressure transducer LLID’s.
Standard flow measurement transducers can be ordered for
condenser, evaporator and auxiliary/heat recovery heat
exchangers. The standard accuracy part is (0185-3475-0100),
there are two transducer (0185-3475-0100) provided per heat
exchanger. Field connect by male to 2 female 1000mm branch
cable (CAB01147) which provided in package.

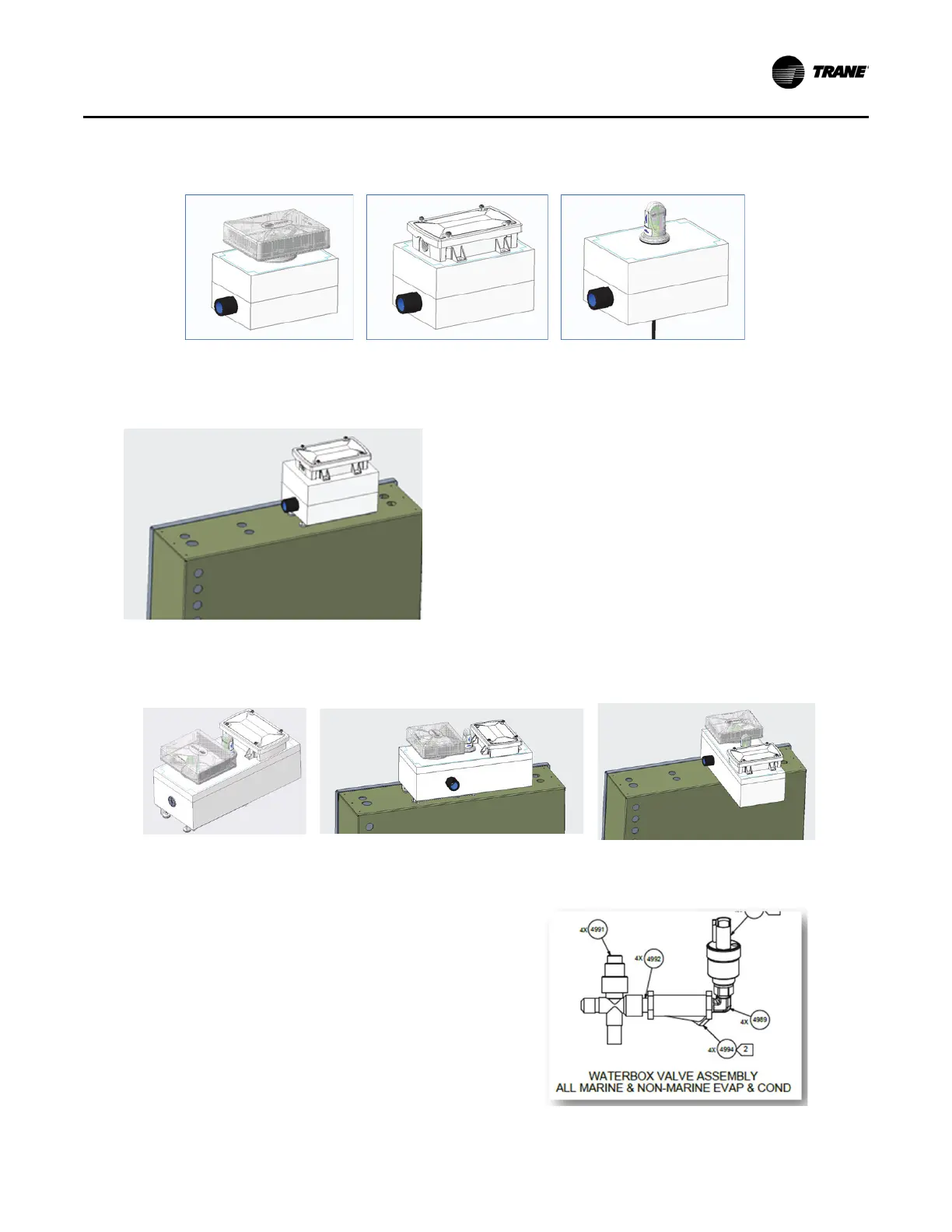

Figure 43. Single box (LTE, Air-Fi and Wi-Fi)
Figure 44. Box mounting
Figure 45. Triple box
Figure 46. Standard accuracy package
