Installation
SO-SVN037A-EN 15
.
3. Secure the arm to the control panel bracket using the 5/16
- 18 x 1-inch hex bolts, 5/16 - inch lock washers, and 5/16
- 18 hex nuts provided. Note that included production arm
bracket can also be bolted to panel mounting bracket.
4. Securely fasten the Tracer AdaptiView display to the
mounting plate on the end of the display arm with the
hardware provided.
5. After the display is attached, recheck the arm tension. The
arm tension should be set so that the display does not
spring up or sag down out of the position it is moved to by
the operator.
Adjusting the Tracer AdaptiView Display
Arm
The Tracer AdaptiView display arm may be too loose or too
tight and in need of adjustment. To adjust the tension on the
display arm:
1. There are three joints on the display arm that allow the
Tracer AdaptiView display to be positioned at a variety of
heights and angles (refer to items labeled 1, 2, and 3 in the
below figure). At each joint in the display arm there is either
a hex bolt (1 and 2) or hex screw (3). Turn the hex bolt or
screw in the proper direction to increase or decrease
tension.
Note: Each hex bolt or screw is labeled with ‘loosen’/‘tighten’,
or '+'/'–' indicators.
2. Joint 3 has a 6 mm hex screw controlling the tension on a
gas spring, which allows the Tracer AdaptiView display to
tilt up and down.
3. Joints 1 and 2 are covered by a plastic cap. Remove the
plastic cap to access the hex bolt. Adjust using a 13 mm
wrench as necessary.
4. To adjust the swivel of the Tracer AdaptiView display (the
spin right and left similar to the steering wheel on a car),
you need to adjust the hex bolt located inside the display
arm back plate. This adjustment needs to be done
BEFORE attaching the display. Use a 9/16-inch or 14 mm
wrench.
5. Use a 13 mm wrench to adjust the bolt (item labeled 4 in
the above figure) that allows the entire display arm to
swivel to the left and right.

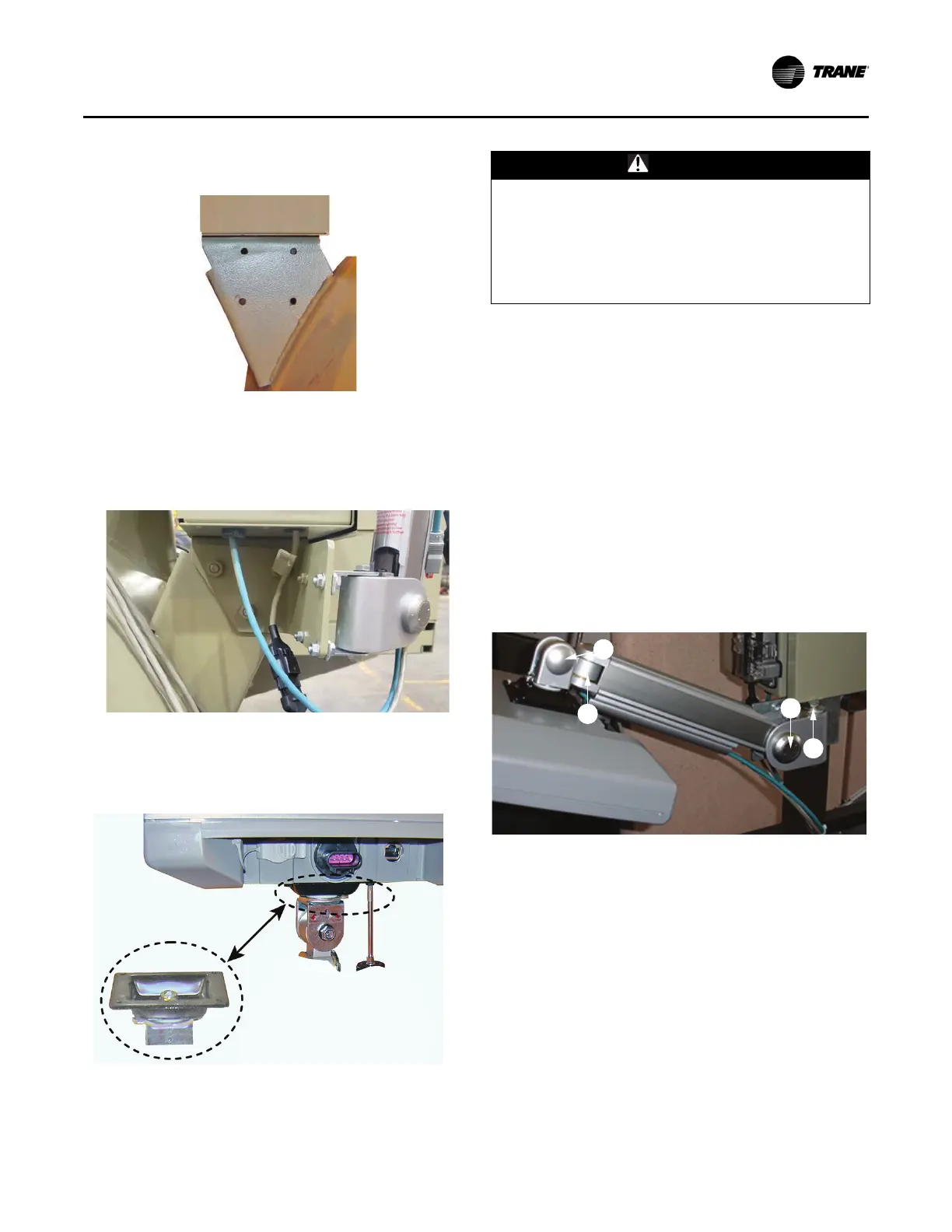

Figure 19. Display arm mounting holes drilled through
right-hand panel bracket
Figure 20. Production arm bracket
Figure 21. Attaching Tracer AdaptiView display to arm
CAUTION
Tension in Display Support Arm!
Failure to follow instructions below could result in
unexpected movement of the spring-loaded support
arm which could result in minor to moderate injury.
Ensure that the support arm is in the full upright
position when removing the Tracer AdaptiView display
from the support arm.
Figure 22. Joint locations on the display arm
1
2
3
4
