Installation
SO-SVN037A-EN 19
2. Install the Female connector to stripped end wire harness
extension to the 1A2 power supply (the first half of the
power supply run to the display):
a. Route the stripped end of this wire harness through the
same cabinet knock-out used for the Ethernet cable if
possible, otherwise use one of the other spare factory
made knock-outs provided.
b. Connect each of the four individual wires to the correct
terminal of the removable J4 terminal plug on the 1A2
power supply.

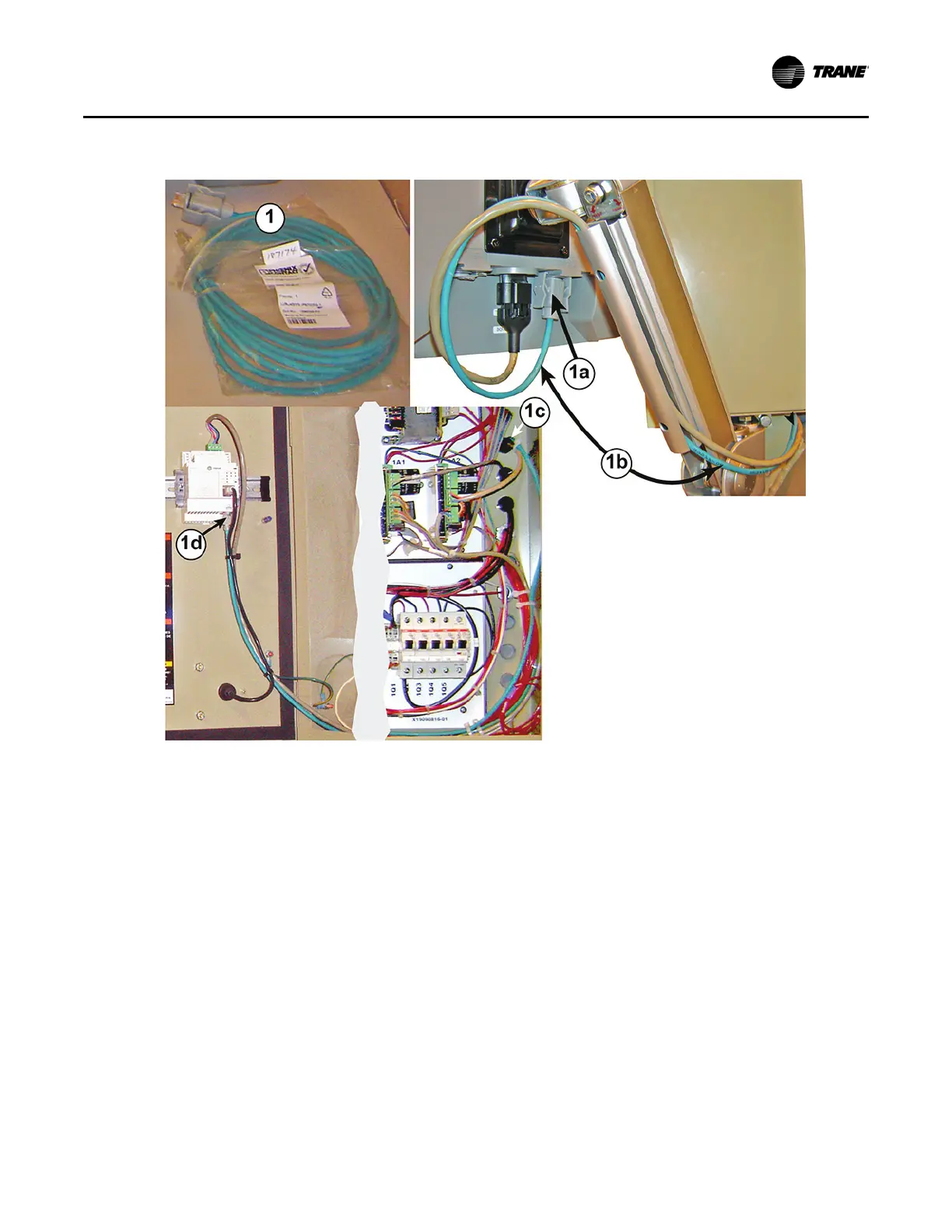

Figure 28. Ethernet cable installation between the display and Symbio 800 controller
