AFDH Drive Package Specifications
32 AFDH-SVN004C-EN
Additional Hardware Shipped with
Tracer® AdaptiView™ AFDH Packages
Note: Shorting buss bars that could be required for a
upgrade AFDH drive installation are not included
within the Tracer® AdaptiView™ miscellaneous
hardware package kit. Use the buss bars that best
match the spacing and size of the compressor
motor terminal lugs on the specific chiller receiving
the drive upgrade.
Table 24. Tracer® AdaptiView™ miscellaneous hardware contents
Tracer® AdaptiView™ Miscellaneous Hardware Component Parts List
Part Description Quantity
Trane X-Code
Part Number
Mnemonic
Number
Low pressure transducer; 0–70 PSIA, IPC3 OUTPUT, 24 VDC, 0-70 PSIA, 0.25 - 18 NPTF 1 X13790362090 TDR00733
Branching cable; Male to two Female, 39.37 inches long 1 X19051622020 CAB01147
Extension cable; Male to Female, 39.37 inches long 1 X19051623010 CAB01149
Executive Beige Paint; 10 oz. aerosol can 1 X35020476020 PAI00297
TR200 Programming Guide 1 BAS-SVP04*-EN
UC800 to Drive Modbus Cable 1 50712390
Schematics 1 50712127
AFDH E-Frame Upgrade Adaptive Frequency Drive Installation manual 1 AFDH-SVN004*-EN

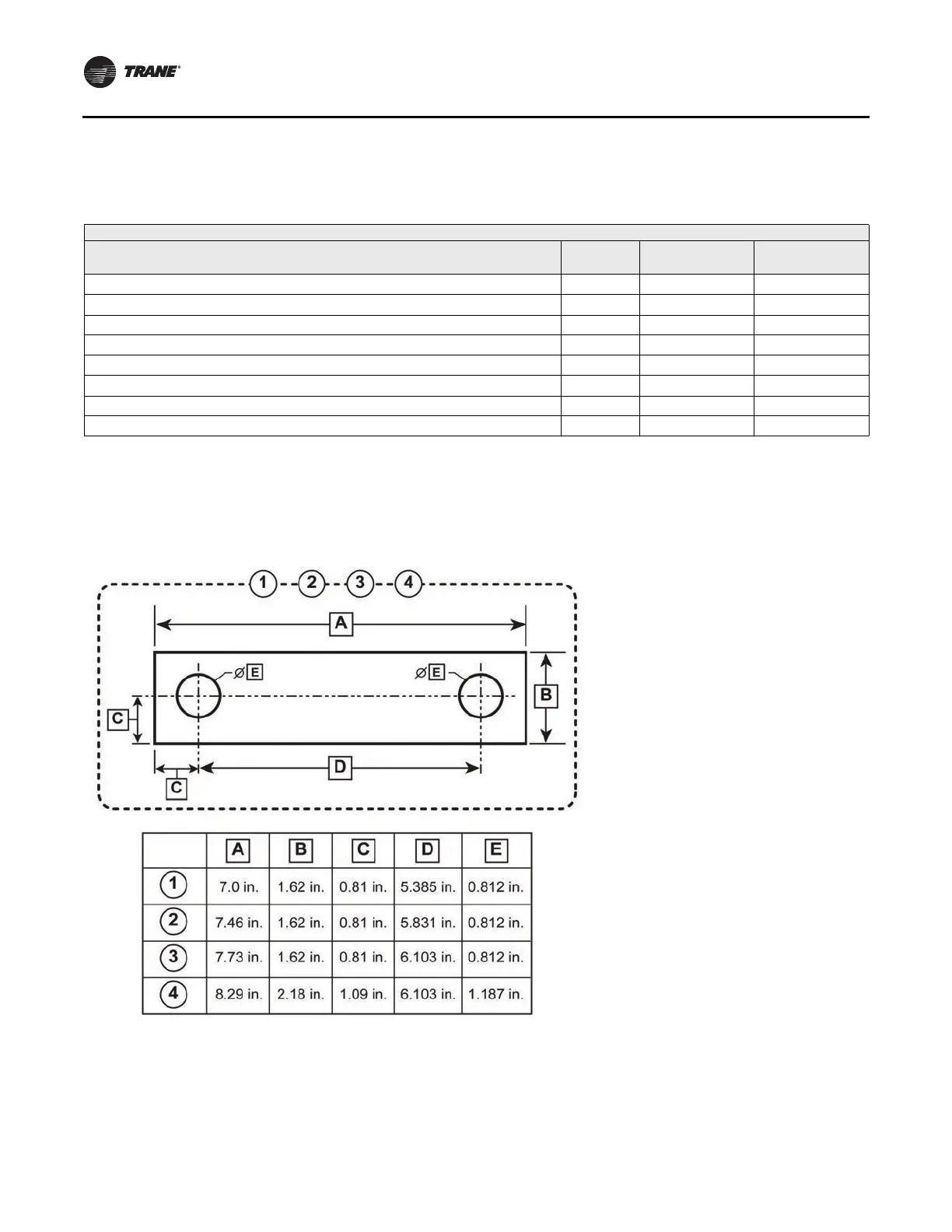

Figure 19. Buss bars specifications: Tracer® AdaptiView™ hardware packages
1. Example of shorting buss bars contained in
kit BAR0177
2. Example of shorting buss bars contained in
kit BAR0163
3. Example of shorting buss bars contained in
kit BAR00176
4. Example of shorting buss bars contained in
kit BAR00165
