AFDH Drive Package Specifications
20 AFDH-SVN004C-EN
LiquiFlo 1.0/1.5 Frame 4 Unit
Dimensions

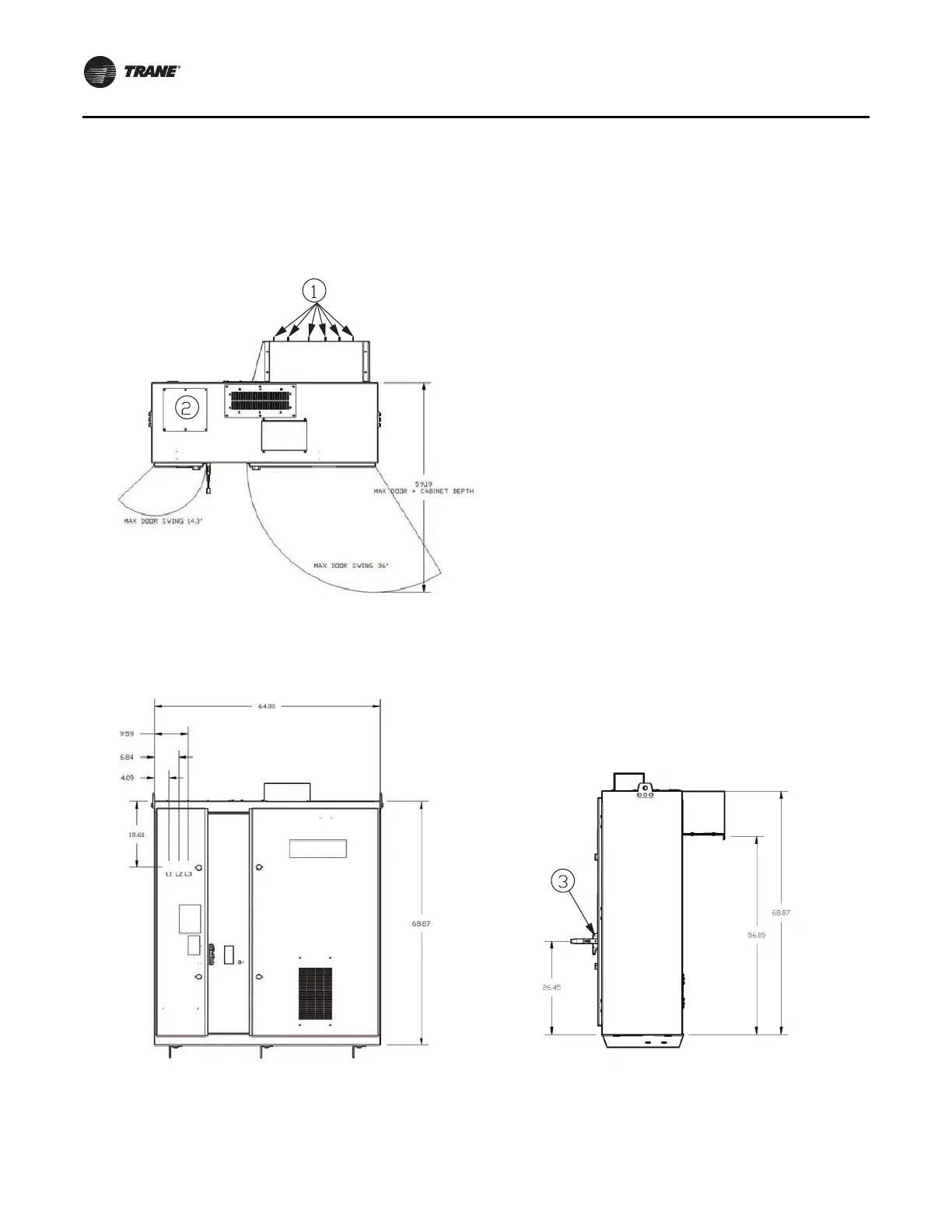

Figure 16. Top, front, and side view of LF 1/1.5 frame 4 E-Frame AFDH cabinet with dimensions - LiquiFlo drive
1. Z-bracket mounting studs (each stud = 3/8-16 x 1.75 in.)
2. Two-piece access door cover on top of the 9.3 in. x 14.9 in. incoming power wire cutout.
3. Electrical disconnect switch
