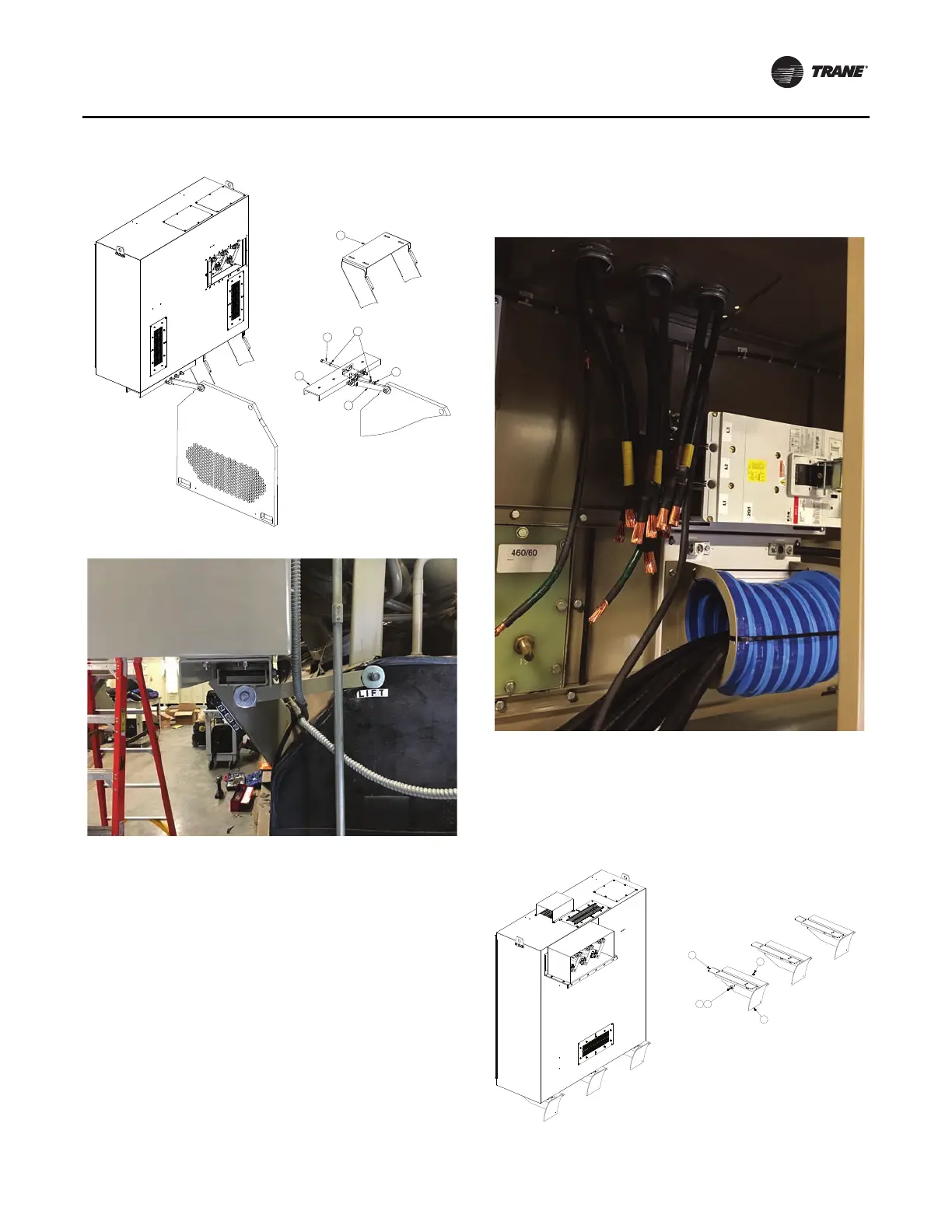

Installation
AFDH-SVN004C-EN 45
Circuit Breaker Adjustment to
Accommodate Power Line Wiring
Adjust circuit breaker location to ease power line wiring
installation. See picture below.
LiquiFlo 1.0/1.5 Frame 4
Replacement
Figure 34. Fixing linkage under the C channel
1. Linkage subassembly
2. C channel
3. Nut
4. Washers
5. Bolt
6. Evaporator mounting bracket
4
5
3
1
2
6
Figure 35. LiquiFlo 1.0/1.5 frame 4 mounting
installation
1. Panel mounting plate
2. Evaporator mounting bracket
3. Bolt
4. Washer
5. Nut
34
2
1
5
