Installation
44 AFDH-SVN004C-EN

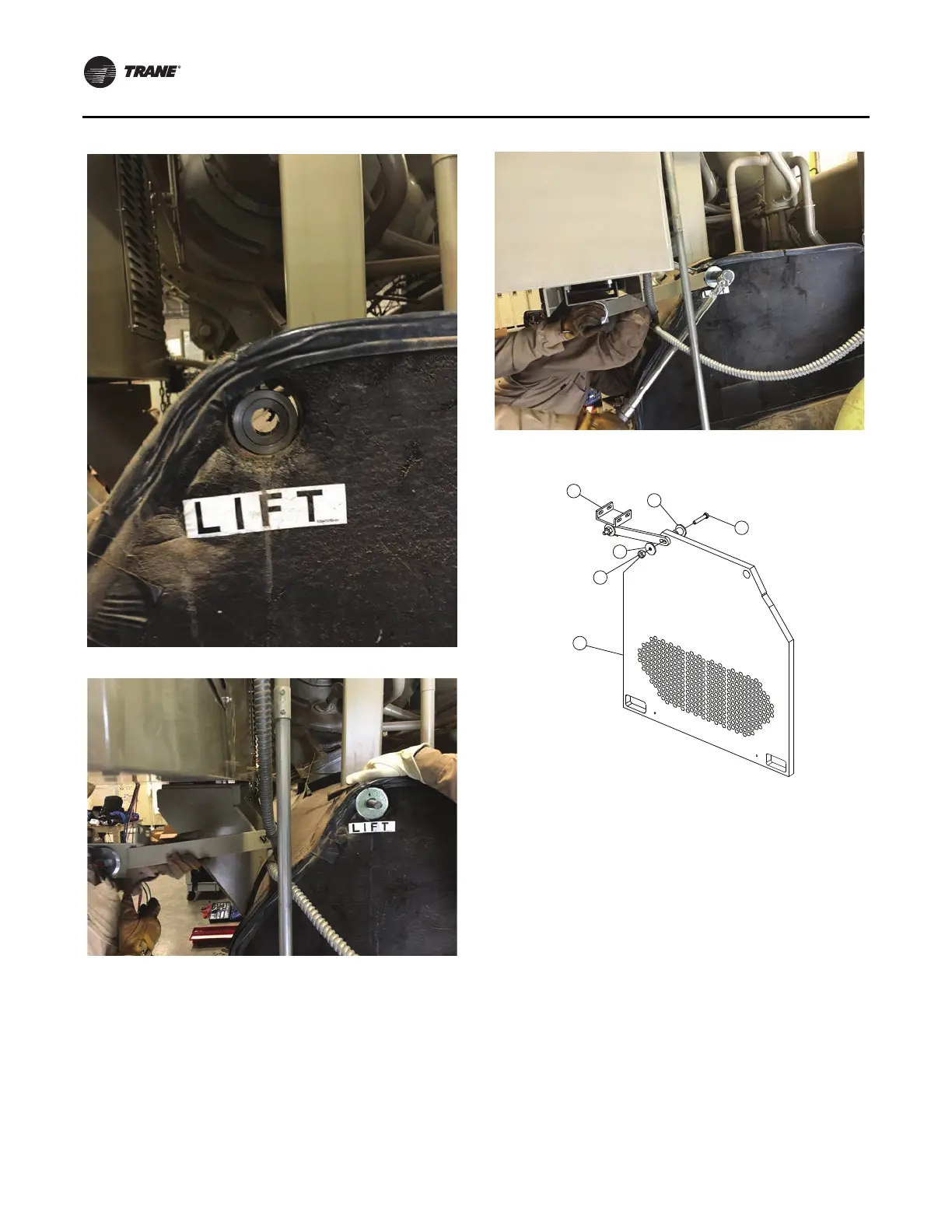

4. Use gantry to lift right side of drive slightly over
horizontal. Fixed linkage under the C channel from
enclosure with bolts, washers and nuts, then tight the
fasteners. At the same time, linkage bar will be set at
a proper position then make sure all bolts including
motor terminal bolts are tightened. Release tension
from gantry and confirm that panel is setting correctly
and not sagging.
Figure 33. Install linkage subassembly into tube sheet
1. Linkage subassembly
2. Tubesheet
3. Bolt
4. Spacers
5. Plane washer
6. Nut
1
2
3
4
5
6
