Installation
AFDH-SVN004C-EN 39
2. Mark to trim the starter panel brackets that are welded
to the evaporator shell as they will interfere with the
drive. Make sure to lineup the motor terminal access
with the starter panel bracket and only trim the extra
length. Refer to the below figures.

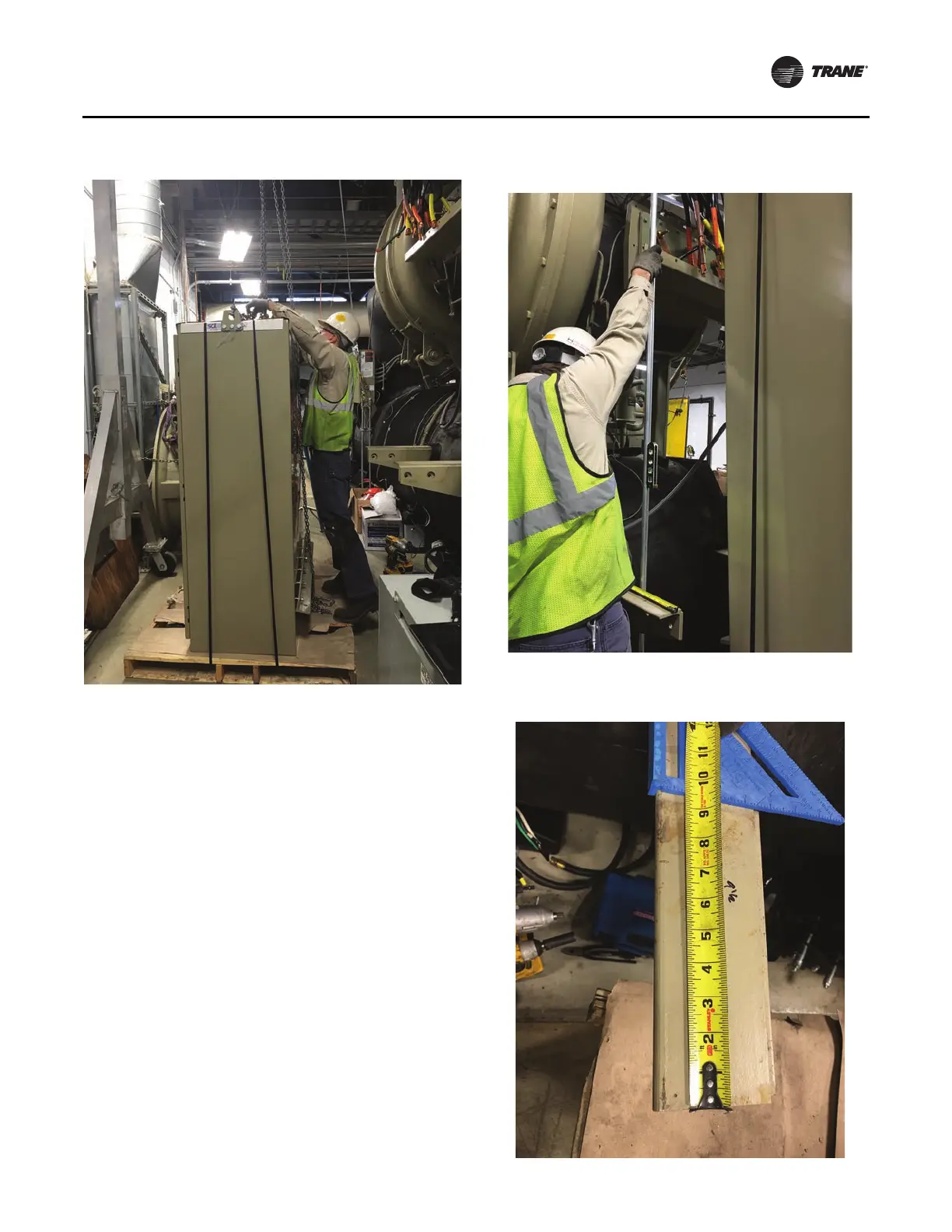

Figure 25. AFDH drive angle bracket adjustment Figure 26. Starter panel welded brackets markings to
trim
Figure 27. Starter panel brackets markings to trim extra
length
