Installation
42 AFDH-SVN004C-EN

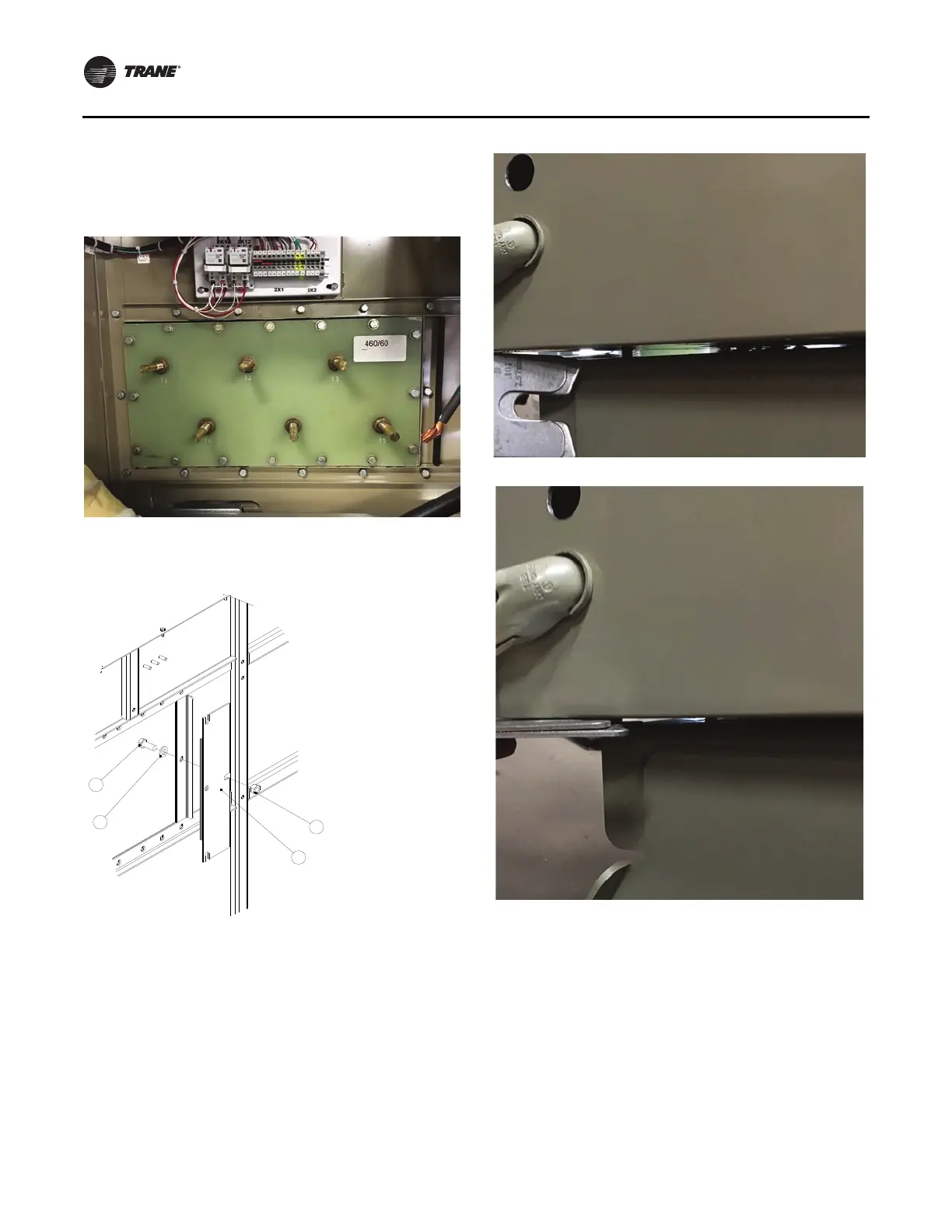

3. Reuse the motor terminal access bolts and bolt the
cabinet to the motor at the motor terminal. Do NOT
place the full weight of the cabinet onto the brackets at
this time. Keep tension on the lift rigging to support the
weight of the cabinet.
4. The 400 frame motor requires an adapter plate to cover
the excess gap at the AFDH drive motor terminal
access opening.
5. Make sure the cabinet is level and bolt the cabinet to
the evaporator support brackets with the provided
bolts, nuts, and washers.
6. Shim the space between the cabinet and the
evaporator
support brackets with 3”X 3” slotted shims.
Place the shims slots around the bolts. Ease the
tension on the lifting rigging, confirm the shims are
snug, and then tighten the bolts to secure the cabinet
on top of the evaporator support brackets.
1. 400 Motor Adapter
2. M12 Flat Washer
3. M12 Hex Nut
4. Screw, M12 X 30MM Hex Cap
1
2
3
4
