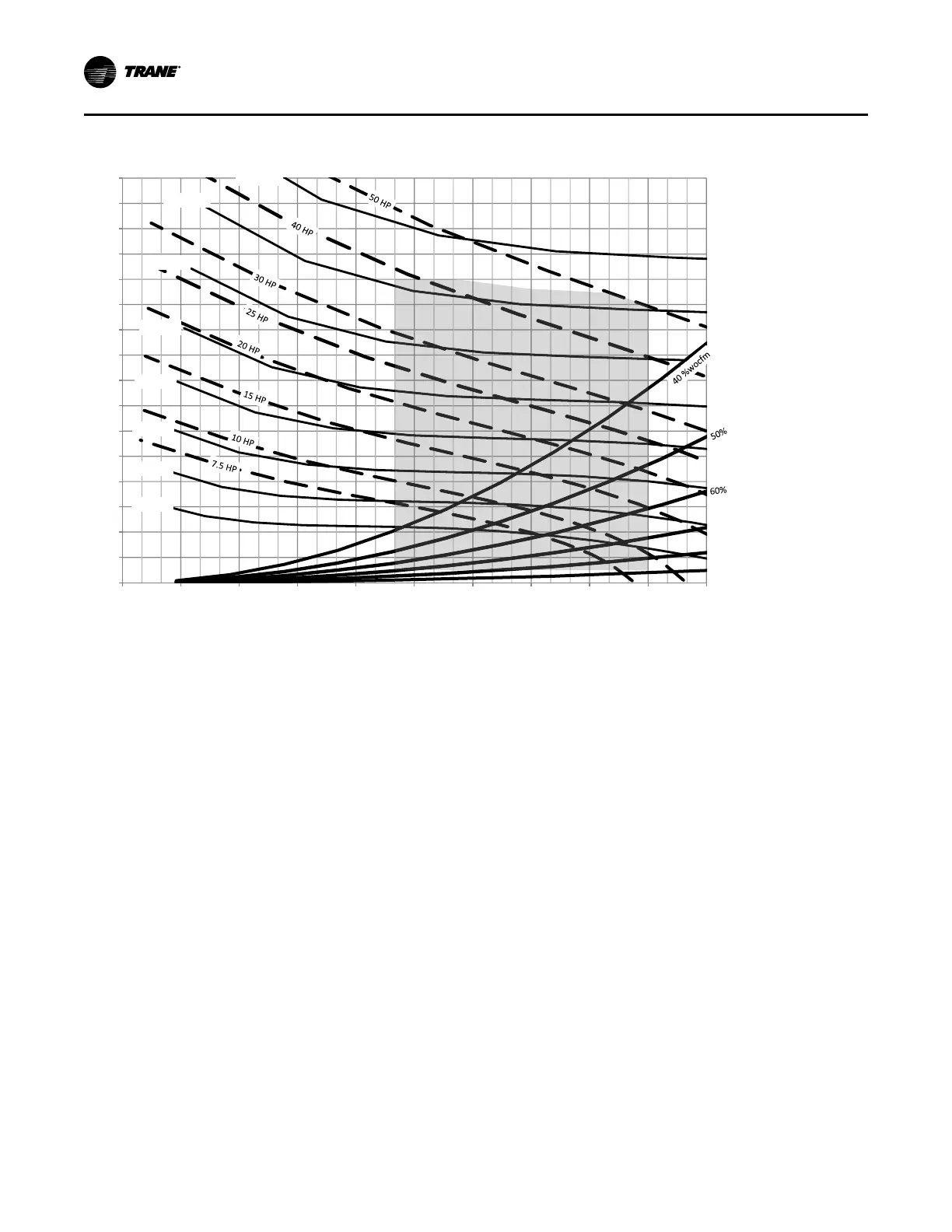

Figure 51. Supply fan performance with or without variable frequency drive - 60, 70 and 75 tons air-cooled, - forward
curved
90%
900 RPM
800 RPM
700 RPM
600 RPM
500 RPM
70%
80%
1000 RPM
1100 RPM
1200 RPM
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
0 3000 6000 9000 12000 15000 18000 21000 24000 27000 30000
Sta!c Pressure, Inches w.c.
Airflow, CFM
IImmppoorrttaanntt:: Maximum static pressure leaving the
rooftop is 4.0" H
2
O positive. The static
pressure drops from the supply fan to the
space cannot exceed 4.0" H
2
O.
NNootteess::
• Fan performance for 60 and 70 to 75 tons
rooftops is identical. Contact your local
Trane
® representative for information on
oversized motors.
• Shaded areas represent selectable area.
Contact your local Trane
® representative for
more information.
• Supply fan performance curve includes
internal resistance of rooftop. For total static
pressure determination, system external
static must be added to appropriate
component static pressure drops
(evaporator coil, filters, optional economizer,
optional relief fan, optional heating system,
optional cooling only extended casing,
optional roof curb).
• Maximum Cfm (for cULus approval) as
follows: 60 to 75 tons - 27,000 Cfm and 50
ton - 22,500 Cfm.
• Minimum motor horsepower is 10 hp.
Maximum motor horsepower is 50 hp.
Maximum fan Rpm is 1,130 Rpm. 40 and 50
HP motor available as standard in 460 and
575 volt only
UUnniitt SSttaarrttuupp
