Trane IntelliPak 1 User Manual

RT-SVX072A-EN
83

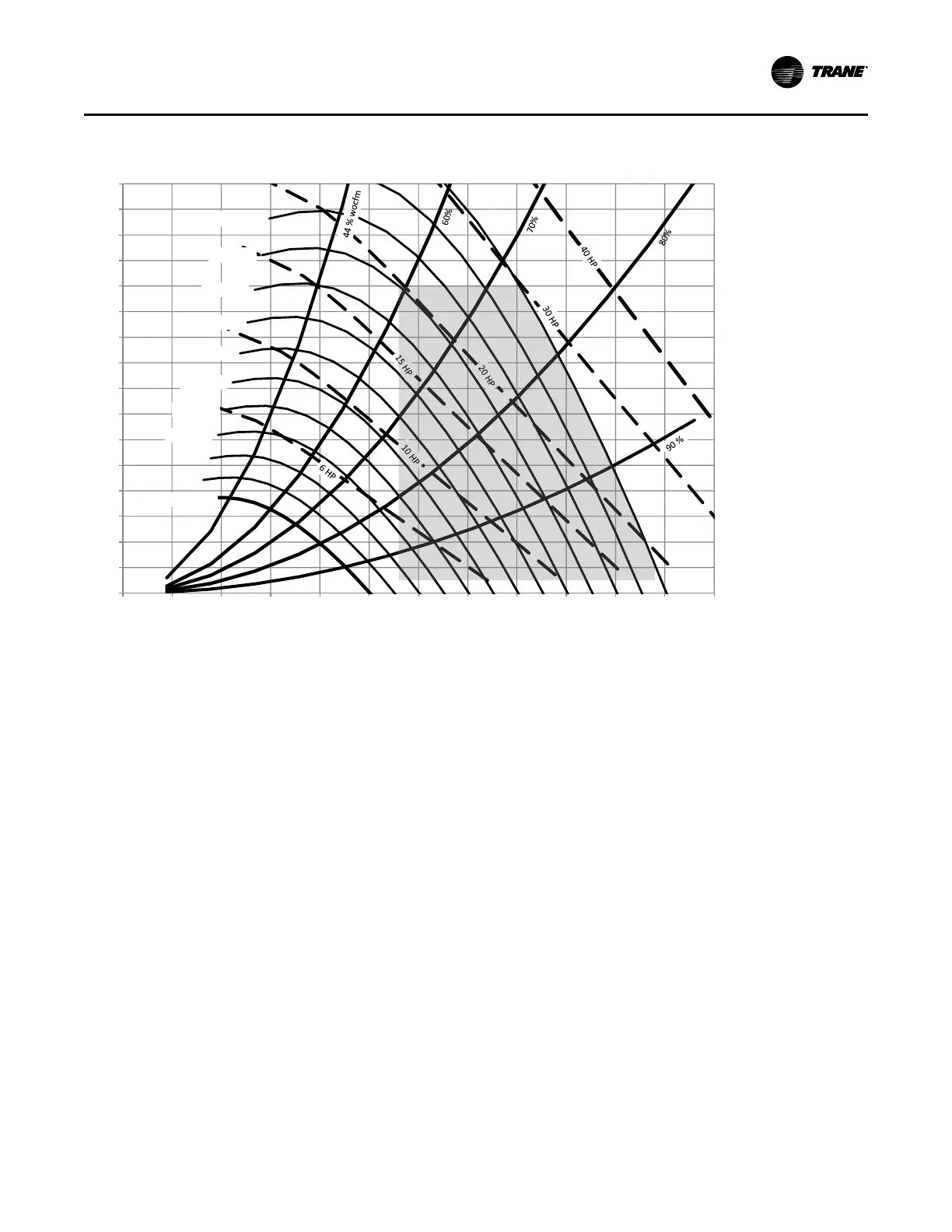

Figure 52. Supply fan performance with variable frequency drive - 60 ton cooling only air-cooled - direct drive
plenum, 80% width
2200 RPM
2100 RPM
2000 RPM
1900 RPM
1800 RPM
1700 RPM
1600 RPM
1500 RPM
1400 RPM
1300 RPM
1200 RPM
1100 RPM
1000 RPM
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
0 2500 5000 7500 10000 12500 15000 17500 20000 22500 25000 27500 30000
Sta!c Pressure, Inches w.c.
Airflow, CFM
IImmppoorrttaanntt:: Maximum static pressure leaving the
rooftop is 4.0" H
2
O positive. The static
pressure drops from the supply fan to the
space cannot exceed 4.0" H
2
O.
NNootteess::
• Shaded areas represent selectable area.
Contact your local Trane
® representative for
more information.
• 60 ton units with gas heat use the 30" DDP
fans. See Figure 58, p. 89 .
• Supply fan performance curve includes
internal resistance of rooftop. For total static
pressure determination, system external
static must be added to appropriate
component static pressure drops
(evaporator coil, filters, optional economizer,
optional relief fan, optional heating system,
optional cooling only extended casing,
optional roof curb).
• Maximum Cfm (for cULus approval) as
follows: 60 ton - 27,000 Cfm.
• Minimum motor horsepower is 10 hp (2 x 5
hp motors). Maximum motor horsepower is
40 hp (2 x 20 hp motors). Maximum fan RPM
is 2,200.
UUnniitt SSttaarrttuupp
