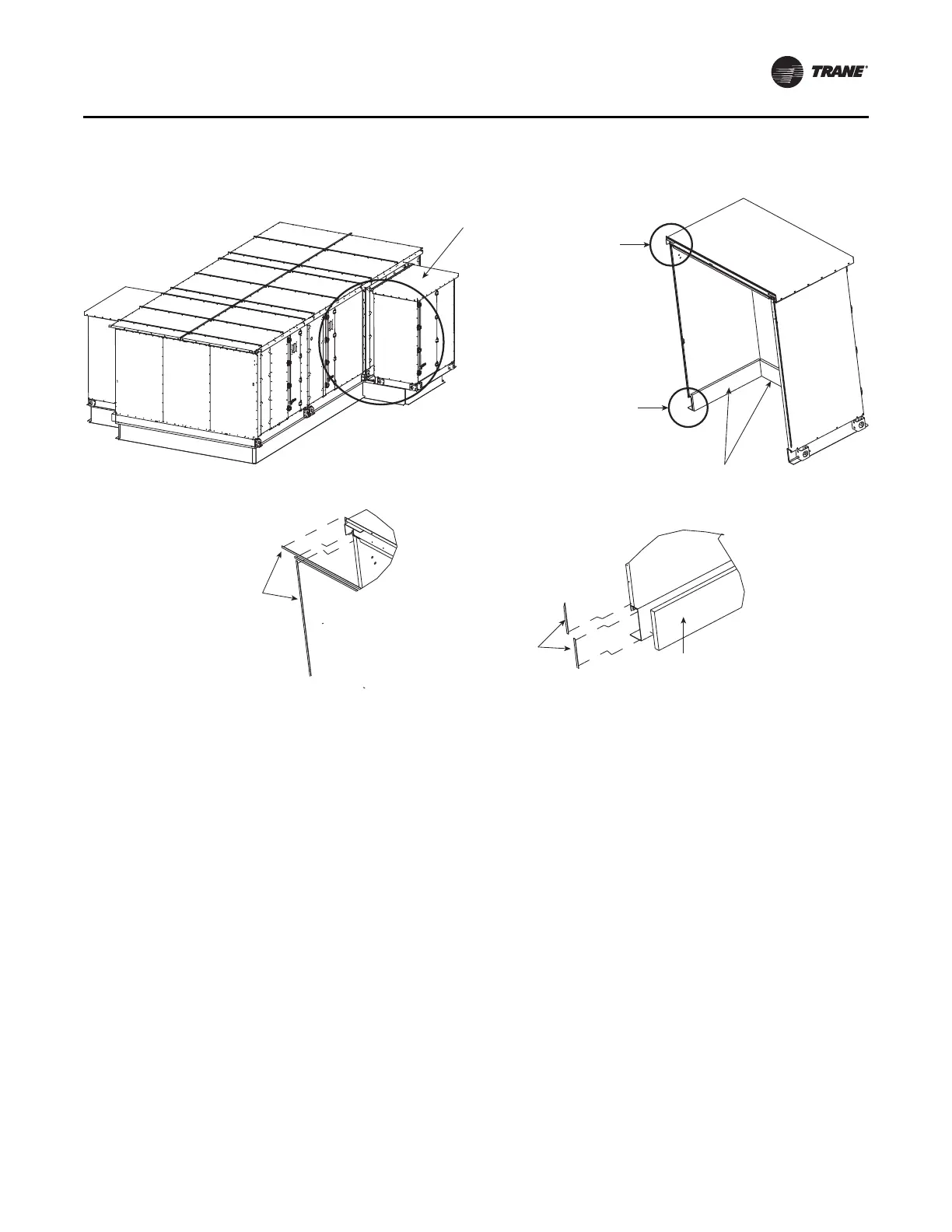

Figure 28. Pipe cabinet installation
See Detail A
See Detail B
Detail A
Detail B
See Cabinet Detail
Armacell
1-in. x 7.5-in. x 10-ft. roll
Armacell
1-in. x 7.5-in. x 10-ft. roll
White Butyl tape
.375-in. X .375-in.
Cabinet Detail
White Butyl tape
.375-in. X .375-in.
Installation - Mechanical
CLCH-SVX013B-EN 23
1. Install inside corner cap. See Figure 29 Detail A and
Detail B.
2. Install 3/8-inch x 3/8 inch whit
e Butyl tape to unit wall
where pipe cabinet roof connects.
3. Lift pipe cabinet roof into pl
ace and a
ttach to unit wall
with screws. See Figure 29.
