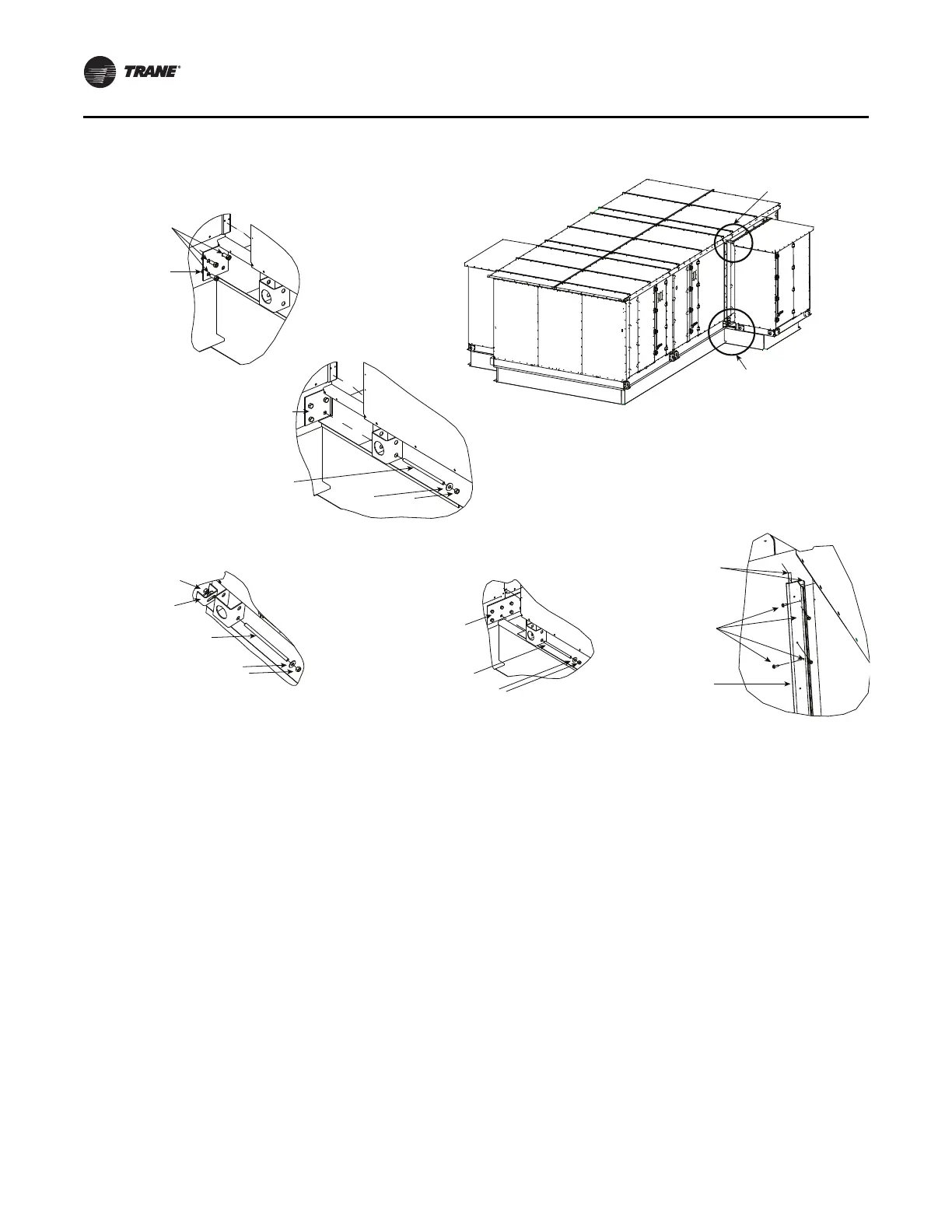

Figure 29. Pipe cabinet installation details
Detail E
Detail F
Detail C
See Details
C, D, E, F
Detail D
See Detail G
Detail G
Screw;
0.375-16 x 1.250
Hex cap
Factory-mounted
splice plate
Corner cap
Rod; 0.500-13 x 10.5-in.
1/2-in. washer flat
1/2-in. nut
Rod; 0.500-13 x 10.5-in.
1/2-in. washer flat
1/2-in. nut
Plate
lug replacement
Plate
lug replacement
Plate
lug replacement
1/2-in. washer flat
Rod
0.500-13 x 10.5-in.
1/2-in. nut
Screws
#10-16x0.75-in.
White Butyl tape
.375-in. X .375-in.
1/2-in. washer flat
Installation - Mechanical
24 CLCH-SVX013B-EN
Pipe Cabinet to be Installed at Shipping Split
Joint
1. Remove threaded rod and unit lug that is outside of
pipe cabinet.
2. Using three screws from unit lug, install black lug
replacement plate in place of unit lug. Se
e Figure 29
Detail C.
3. Lift pipe cabinet into place on roof curb.
4. Slide pipe cabinet into place.
5. Put threaded rod through pipe cabinet lifting lug into
weld
nu
t inside baserail to pull the pipe cabinet tight
against the unit. See Figure 29 Detail D.
Pipe Cabinet to be Attached to Unit Base
Bracket
1. Lift pipe cabinet into place on roof curb.
2. Slide pipe cabinet into place.
3. Put threaded rod through pipe cabinet lifting lug into
wel
ded
unit base rail bracket to pull the pipe cabinet
tight against the unit. See Figure 29 Detail E.
Pipe Cabinet to be installed at a Factory Joint
1. Lift pipe cabinet into place on roof curb.
2. Slide pipe cabinet into place.
3. Put threaded rod through pipe cabinet
lifting lug into
weld nut inside base rail
to pull the pipe cabinet tight
against the unit. See Figure 29 Detail F.
Completing Pipe Cabinet Installation
1. Install inside corner cap. See Figure 29.
2. Install 3/8-in. white Butyl tape to unit wall where pipe
ca
binet roof con
nects.
3. Lift pipe cabinet roof into place and attach to unit wall
with screws. See Figu
re 29.
Hood Installation
1. Per the unit drawing determine mounting location of
the unit weather hoods.
2. Using the factory provided screws mount the weather
hoods to th
e unit.
3. On larger units, weather hoods may be large enough to
require an
gled down supports. In those cases, the
angles are shipped attached to the hood but will need
To Next Page
