Installation - Mechanical
34 CLCH-SVX013B-EN
Pipe Cabinet Installation
Nested U channels and L angle have to be removed to
install the pipe cabinet to the unit and reinstall per
hurricane certification guidelines. See Figure 45.
1. Remove the fasteners from the top of the nested U
channel.
2. Remove the U channel from the unit base L angle and
the pipe
cabinet base L angle.
3. Remove the corner fasteners from the pipe cabinet
base and the unit base L angle. These fasteners are not
re
quired to be put back.

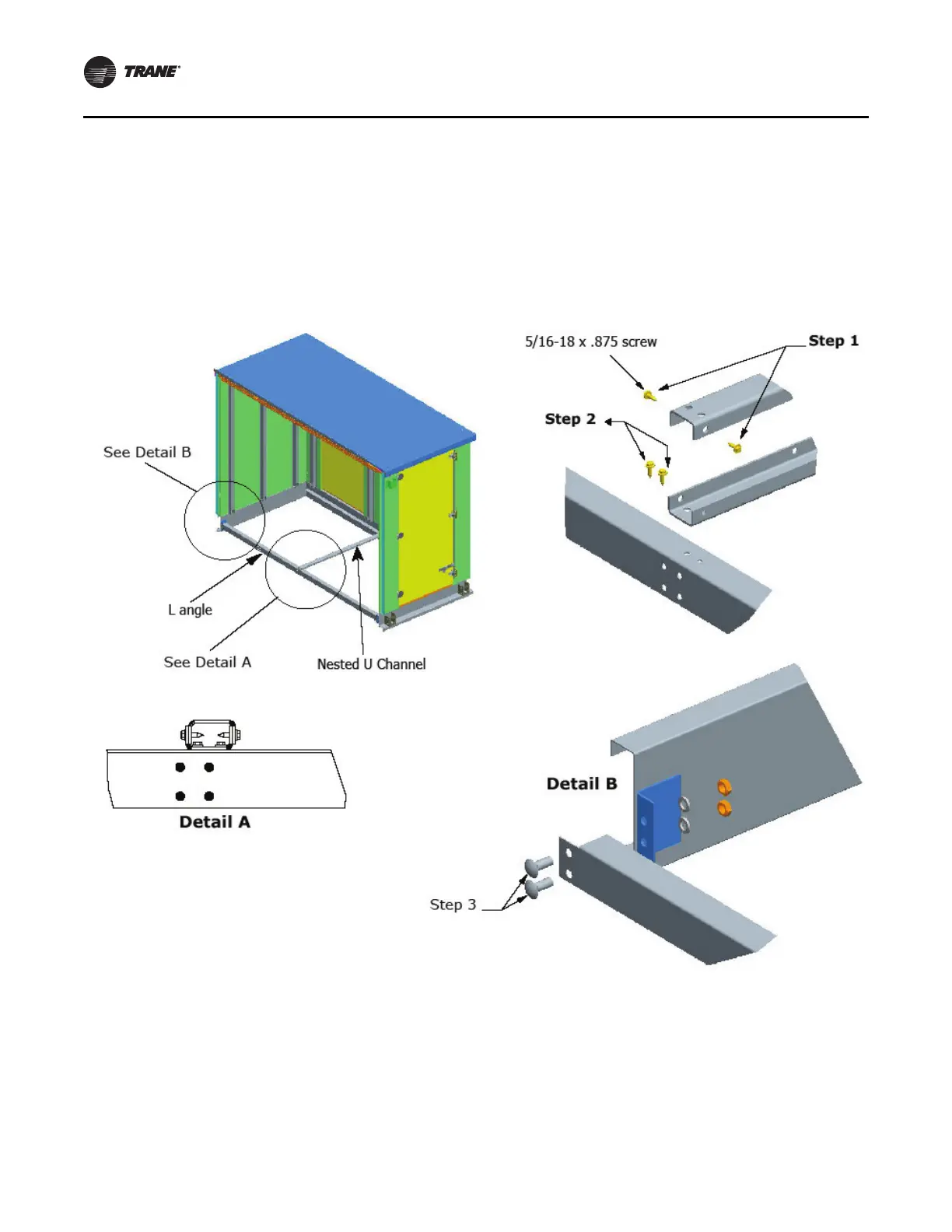

Figure 45. Pipe cabinet installation for hurricane appli
cations
