Installation
11BAS-SVX08D-E4
Connector 1 Comm3 connection to Trane equipment
3-pole removable screw 5.08 mm connector
Pins '1' & '2': Transmit and receive signals (no polarity)
Pin 'SHD': Cable Shield
Connector 2 USB connection to diagnostic PC
USB type B female connector

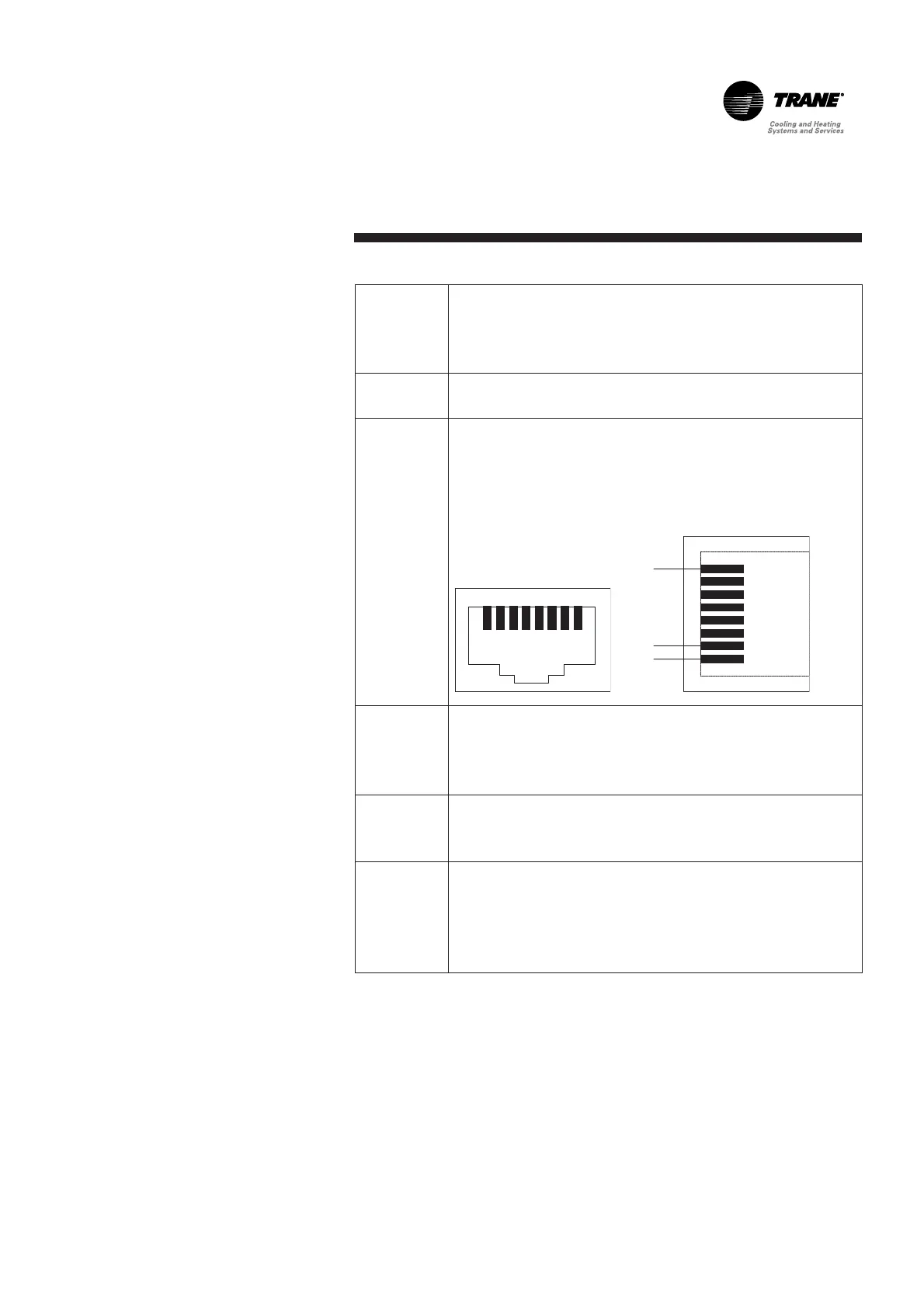

Connector 3 Modbus RS232 connection to Building Management System
RJ45 female connector
Pin '1': Transmitted Data
Pin '2': Received Data
Pin '8': Signal Common
8
1
Common
RXD
TXD
18
Connector 4 Modbus RS485 connection to Building Management System
3-pole removable screw 5.08 mm connector
Pins 'A' & 'B': Signal
Pin 'Ref': Reference
Connector 5 LonTalk
®
connection to Trane equipment
4-pole removable screw 5.08 mm connector
Pins 'A' & 'B': Transmit and receive signals (no polarity)
Connector 6 Power supply connection
3-pole removable screw 7.62 mm connector
Pin '0V': 0V
Pin '24V': 24V AC/DC +6V/-12V
Pin 'GND': Ground
