Installation
7BAS-SVX08D-E4
Mounting and wiring
PIC mounting recommendations
To mount the PIC device:
• Select a location near the controlled equipment to reduce wiring costs
and EMC disturbance risks.
• Verify that the location conforms to the specifications below.
• Secure the controller to a 35 mm DIN rail (Use only 10/10 mm thickness
sheet) or directly mount the PIC using four M3 screws (not supplied).

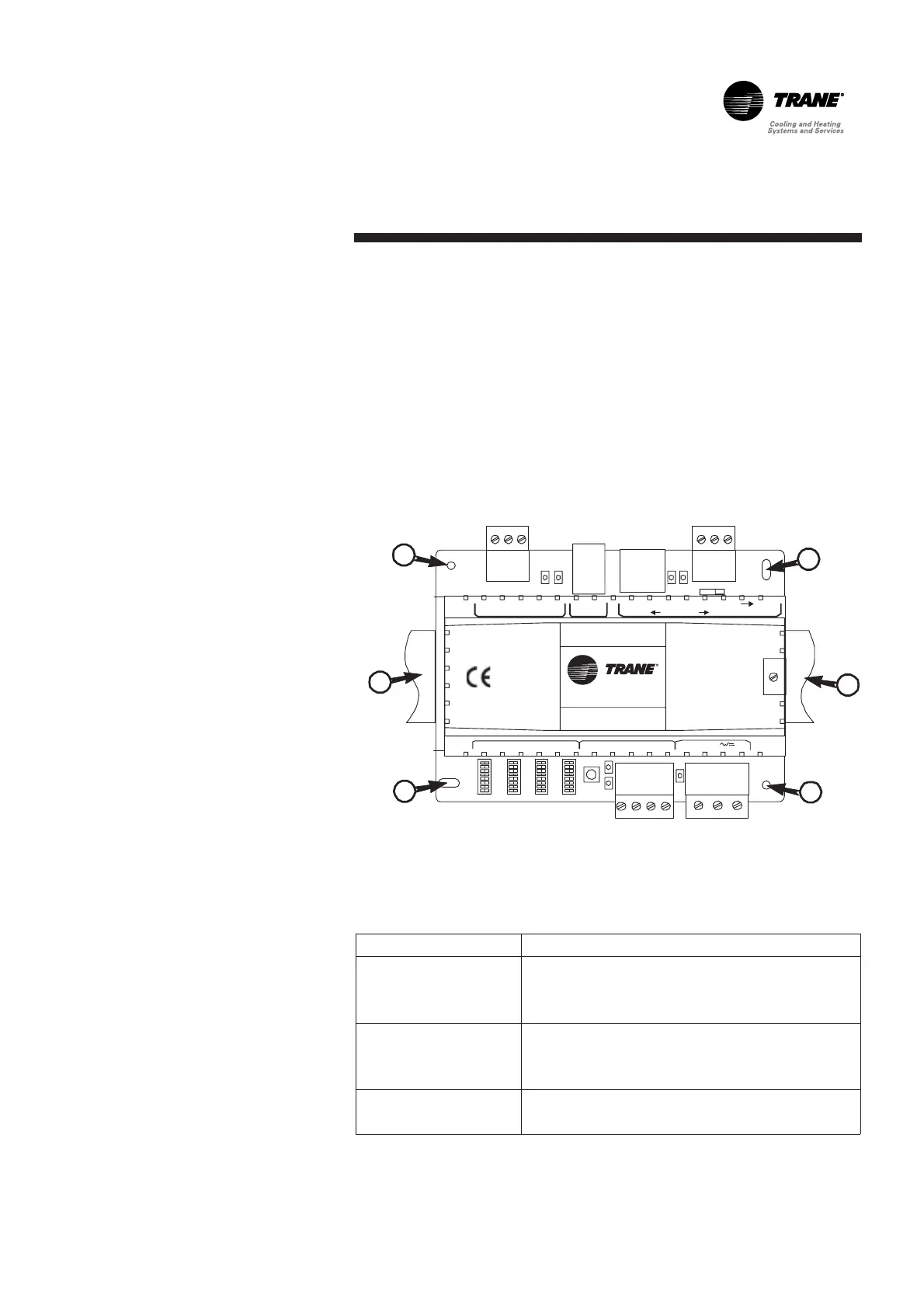

1 = Screw holes
2 = DIN rail
Table 2 - PIC specifications
Board dimensions
95 mm height x 132 mm width x 60 mm depth
Minimum clearances
Front 100 mm
Each side 25 mm
Top and bottom 100 mm
Operating environment
Temperature: from -40° to 70°C
Relative Humidity: from 5% to 95% non-condensing
Dust protection: pollution level 1
Storage environment
Temperature: from -50° to 85°C
Relative Humidity: from 5% to 95% non-condensing
Serv.
