Trane RTHD

Installation
40 SO-SVN048A-EN
4. Remove pedestal adapter plate and install 2-inch and
3/4-inch conduit connectors and 3/8-inch grommet; refer to
Figure 48.
5. Install power wire conduit into conduit connectors, and
secure conduit to strut channel with provided clamps.

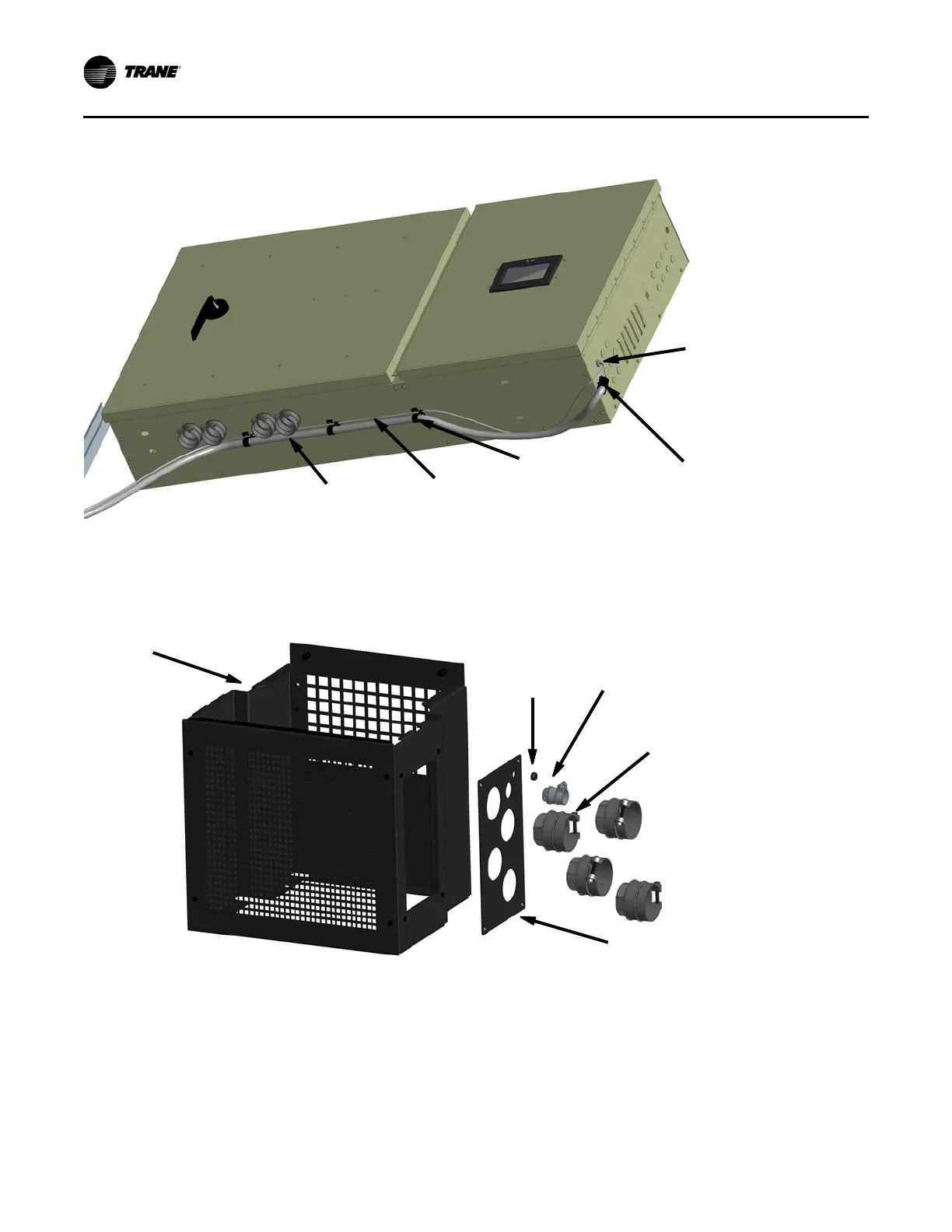

Figure 47. Control cable
Control Power
Conduit
Modbus
®
Cable
Loop Clamp
Conduit
Connector
Cable Bushing
Figure 48. Pedestal
Drive Pedestal
0.375 in.
Grommet
1.25-in.
Grommet
2-in. Conduit
Connector
Pedestal
Adapter Plate
